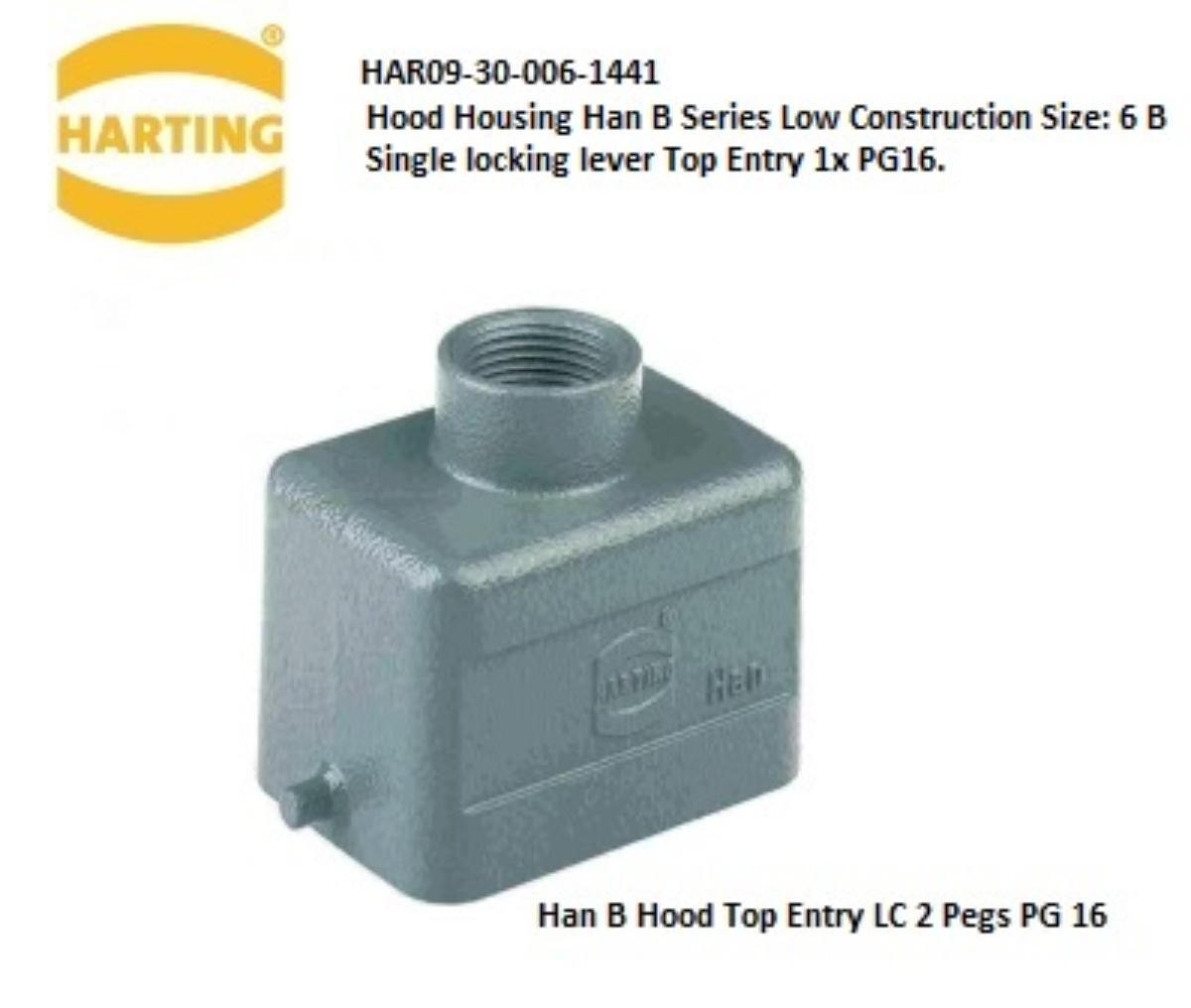

Harting 09-30-006-1441 Hood Housing Han B Series Type Low Contruction Size: 6 B Single locking lever Top Entry 1x PG16.Material (hood/housing): Aluminium die-cast
Code: HAR09300061441
Unit of measure:
EACH
Description
HARTING 09-30-006-1441 Hood Housing Han B Series Type Low Contruction Size: 6 B Single locking lever Top Entry 1x PG16.Material (hood/housing): Aluminium die-cast
Features:
• Standard hoods/housings for industrial connectors
• Low Construction
• Degree of protection acc. to IEC 60529 : IP65, IP66, IP67
• Han B Hood Top Entry LC 2 Pegs PG 16
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Size | 6B |
| Number of pins | Housing ONLY |
| Material | Aluminium die-cast |
| Range | Han B Series |
| Weight | 90 grams |
| Colour | Powder-coated RAL 7037 (dust grey) |
| Brand Name | Harting |
| Type | Low Construction |
| UOM | Each |
| Box Quantity | 1 |
| IP Rating | Degree of protection acc. to IEC 60529 : IP65 , IP66 , IP67 |
| Length | 73mm |
| UNSPCS | 39121300 |
| UNSPSC | 39121300 |
| Rated Current | Single locking lever |
| Height | 43mm |
| Width | 53.5mm |
