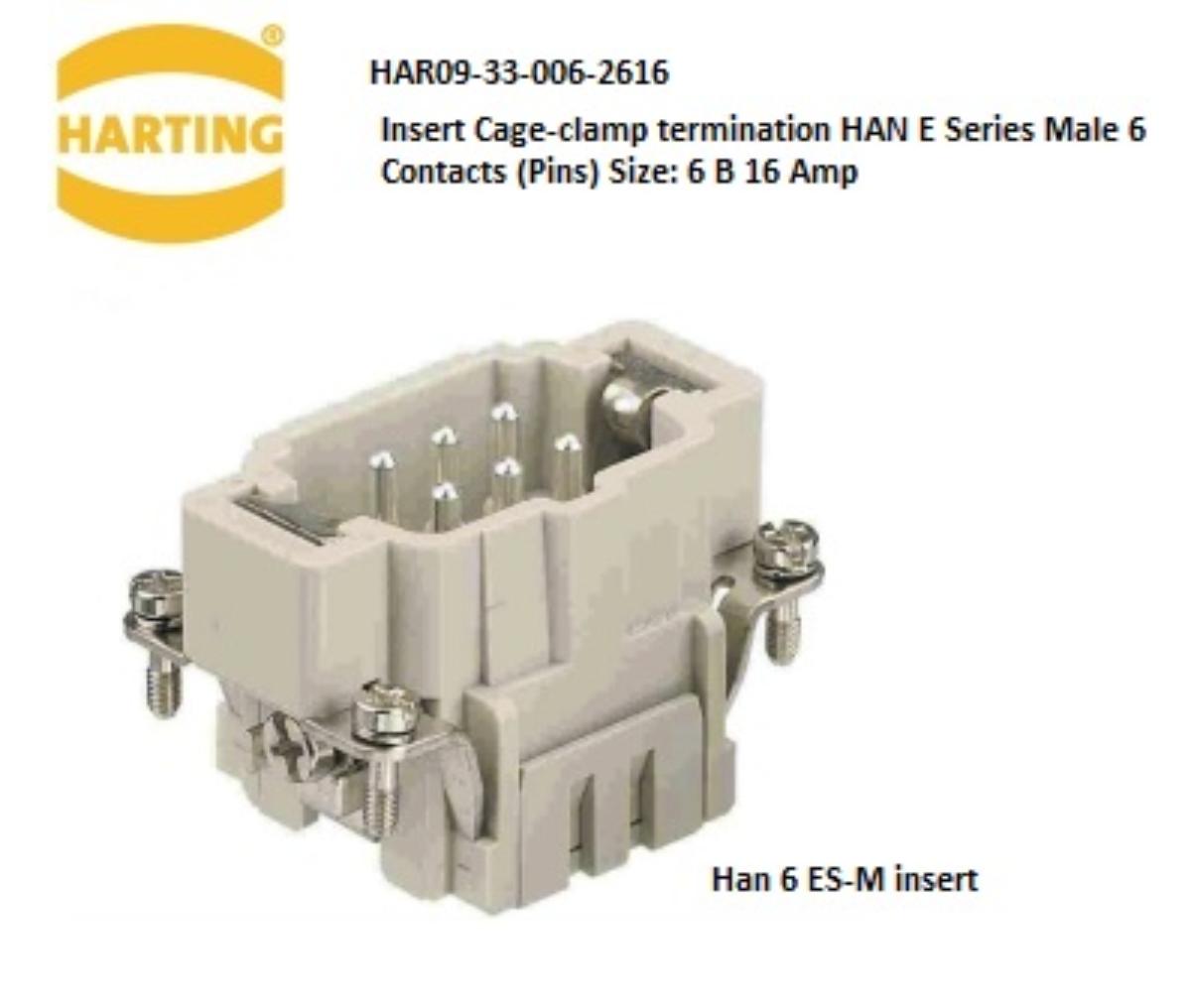

Harting 09-33-006-2616 Insert Cage-clamp termination HAN E Series Male 6 Contacts (Pins) Size: 6 B 16 Amp Conductor cross-section: 0.14 - 2.5 mm2 Copper alloy Silver plated contacts Polycarbonate (PC)
Code: HAR09330062616
Unit of measure:
EACH
Description
HARTING 09-33-006-2616 Insert Cage-clamp termination HAN E Series Male 6 Contacts (Pins) Size: 6 B 16 Amp Conductor cross-section: 0.14 - 2.5 mm2 Copper alloy Silver plated contacts Polycarbonate (PC)
Features:
• Leading protective ground
• Polarised for correct mating
• Can be used with hoods and housings, or for rack and panel applications
• Rated Voltage 500V Rated Impluse Votage 6kV
• Han 6 ES-M insert
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of contacts | 6 |
| Size | 6B |
| Number of pins | 6 Pin |
| Range | HAN E |
| Weight | 48 grams |
| Colour | RAL 7032 (pebble grey) |
| Brand Name | Harting |
| UOM | Each |
| Length | 50.9mm |
| UNSPCS | 39121300 |
| UNSPSC | 39121300 |
| Rated Current | 16 Amp |
| Height | 33.3mm |
| Width | 34mm |
