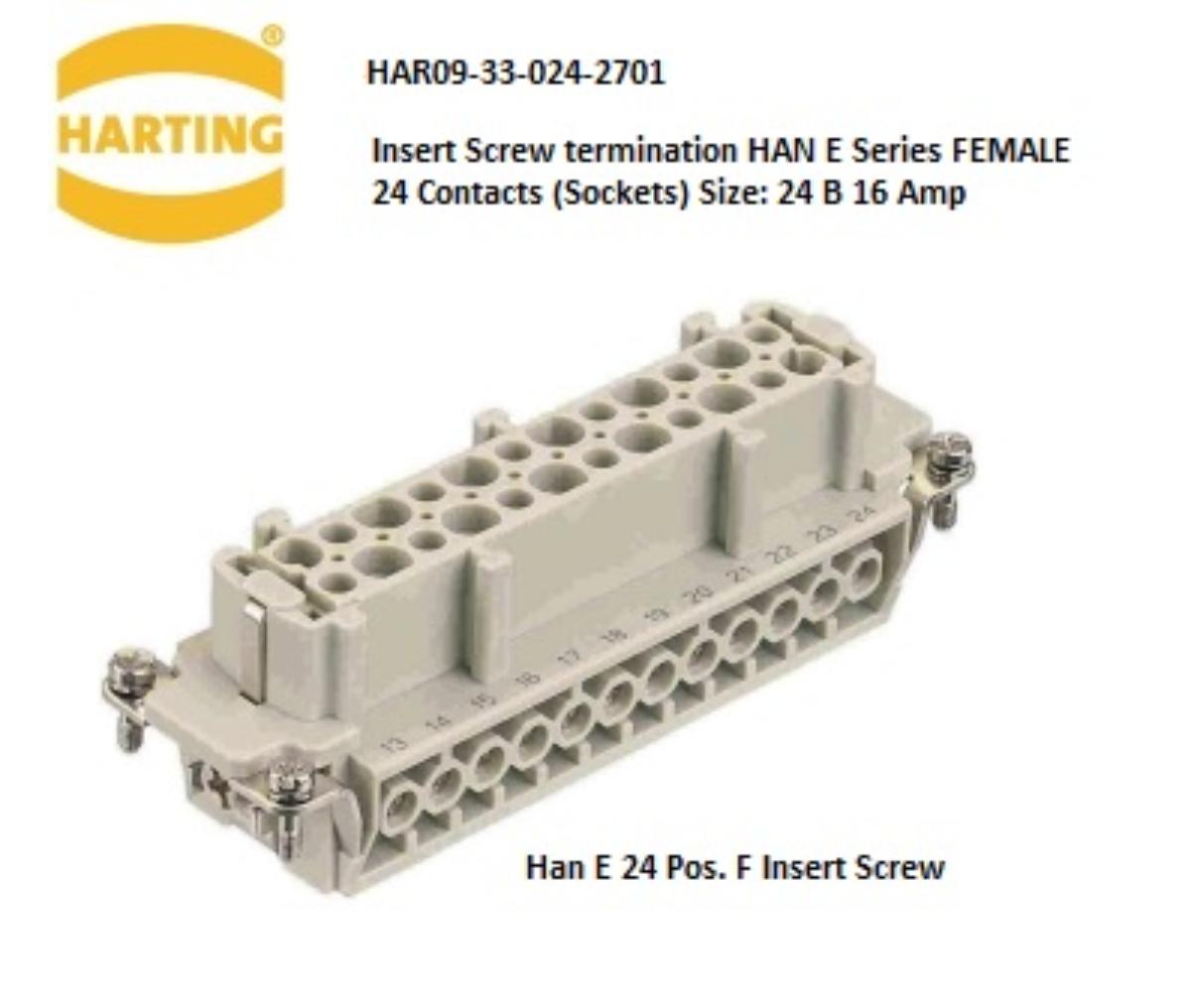

Harting 09-33-024-2701 Insert Screw termination HAN E Series FEMALE 24 Contacts (Sockets) Size: 24 B 16 Amp Conductor cross-section: 0.75 - 2.5 mm2 Copper alloy Silver plated contacts Polycarbonate (PC)
Code: HAR09330242701
Unit of measure:
EACH
Description
HARTING 09-33-024-2701 Insert Screw termination HAN E Series FEMALE 24 Contacts (Sockets) Size: 24 B 16 Amp Conductor cross-section: 0.75 - 2.5 mm2 Copper alloy Silver plated contacts Polycarbonate (PC)
Features:
• Leading protective ground
• Polarised for correct mating
• Can be used with hoods and housings, or for rack and panel applications
• Rated Voltage 500V Rated Impluse Votage 6kV
• Han E 24 Pos. F Insert Screw
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of contacts | 24 |
| Size | 24B |
| Number of pins | 24 Pin |
| Material | Polycarbonate |
| Gender | Female |
| Range | HAN E |
| Weight | 100 grams |
| Colour | RAL 7032 (pebble grey) |
| Brand Name | Harting |
| UOM | Each |
| Box Quantity | 1 |
| Length | 111mm |
| UNSPCS | 39121300 |
| UNSPSC | 39121300 |
| Rated Current | 16 Amp |
| Height | 34.6mm |
| Width | 34mm |
