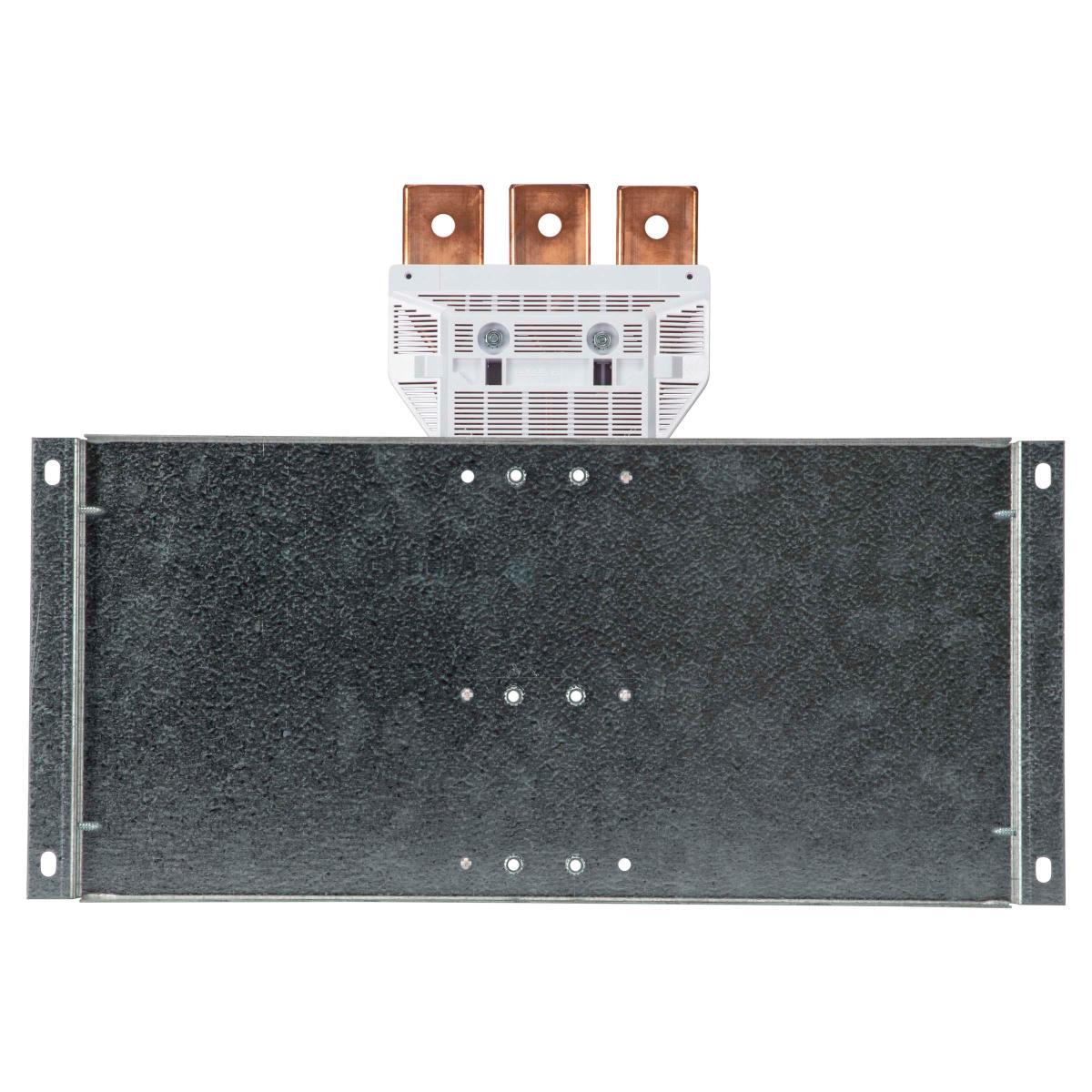

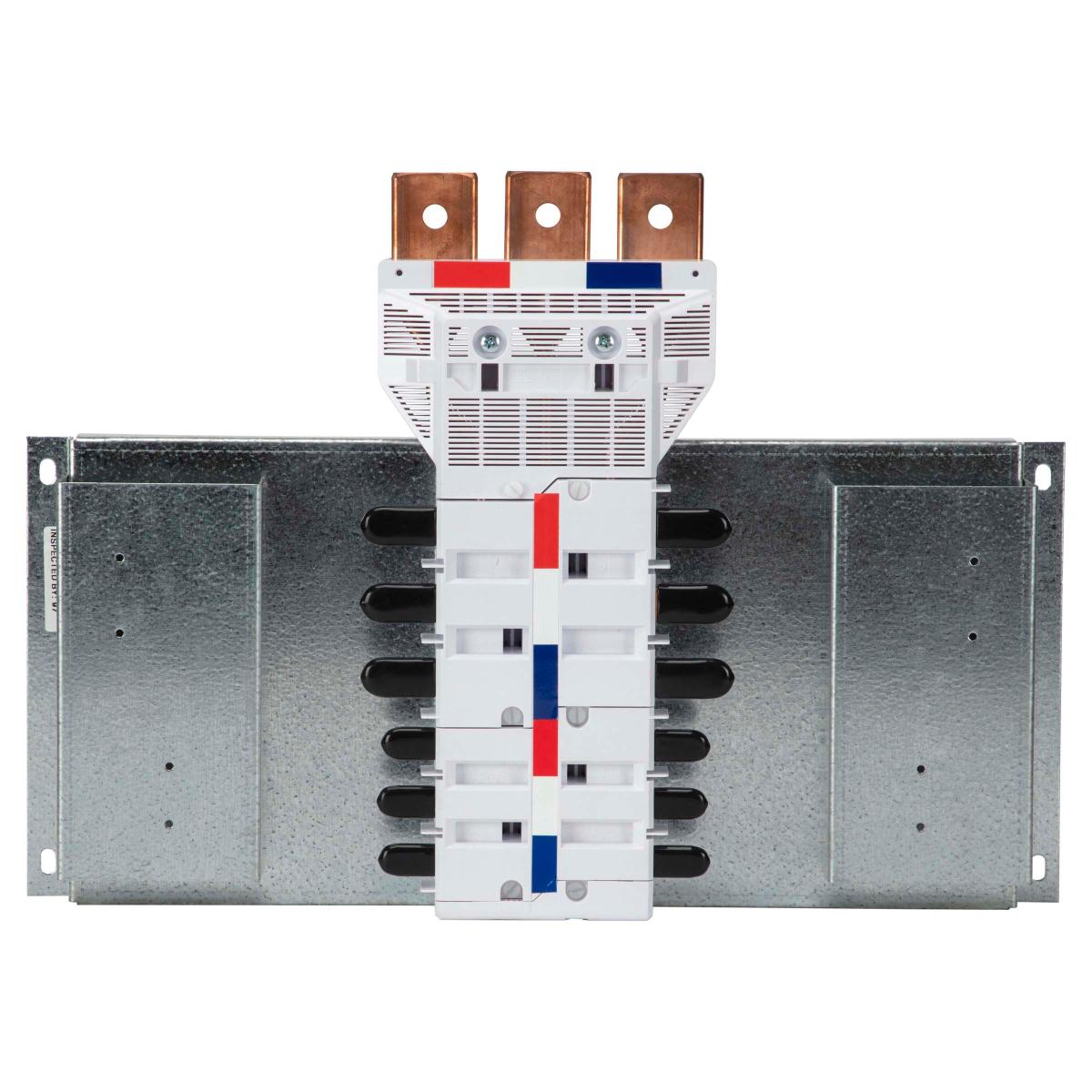

Legrand LCA023KSES, DPX3 Encapsulated MCCB Chassis 630A 3 Phase 50kA / 0.5 sec 6P Bottom Feed 27mm

Designed and manufactured in Australia, the encapsulated chassis range provides efficient power distribution when pairing with DPX³ MCCBs in XL³ main switchboards. With convenience in mind, installation becomes effortless thanks to the carefully crafted mounting panel located at the back. Specifically tailored to perfectly fit XL³ Switch Boards, it ensures a secure and hassle-free setup process.

Features:
• For commercial and industrial applications
• Compatible only with DPX³ MCCBs
• MCCBs are oriented on chassis with ON toggle position away from centre of chassis
• To be installed using DPX³ 160 frame
• Specialised frames available for hybrid installation upon request
• QR code situated on product for easy access to instruction manual
• Double sided chassis allows for MCCB installation on both sides
• REACH IP2X
• Type tested to AS/NZS 61439.2 standards with XL³ main switchboard
• To achieve Form of Separation 4a, it will be required that terminal shields are fitted to MCCBs. Line side: 421050 / Load side: LEG-DPX3-160LTS
