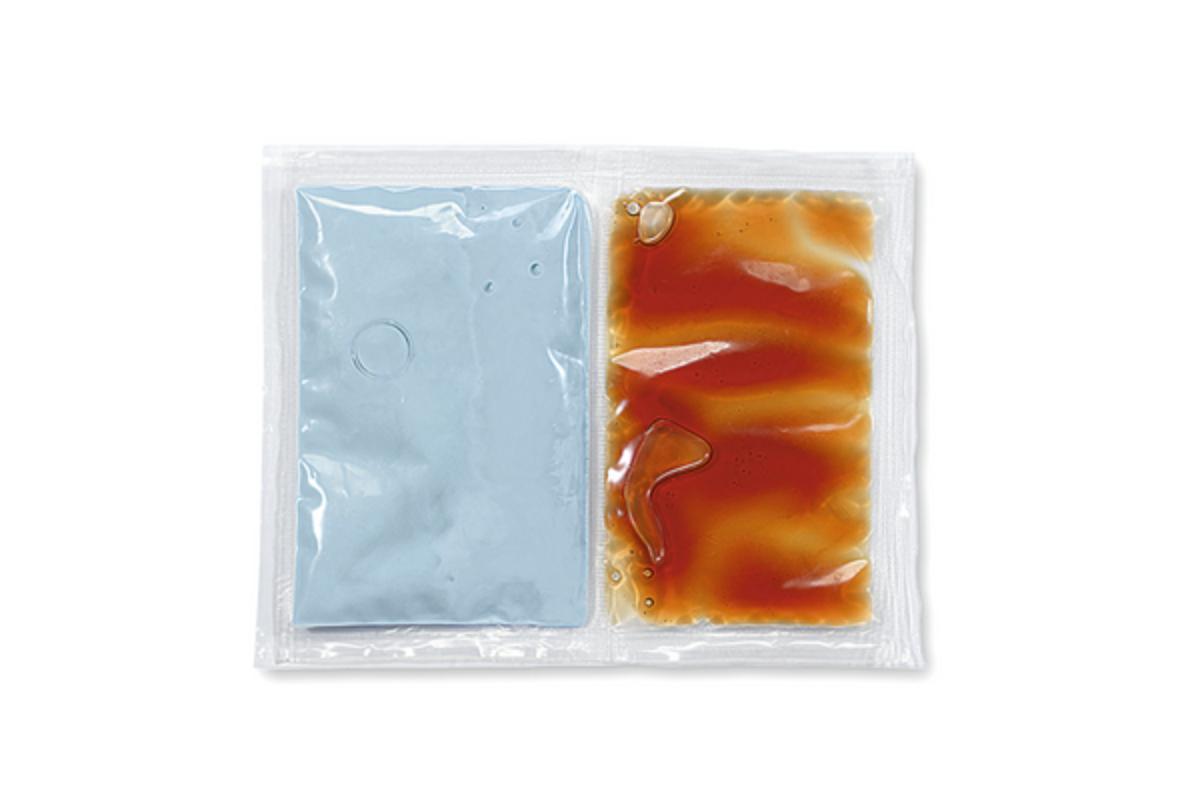

Hellermann Tyton HTARESIN-33-B-SF490 Two-Component Polyurethane Cast Resin GN (490ml)
Code: HTARESIN-33-B-SF490
Unit of measure:
EACH
Description
Hellermann Tyton HTARESIN-33-B-SF490 Two-Component Polyurethane Cast Resin GN (490ml)
Features:
• Hellermann Tyton
• RESIN-33-B-SF490
• HTARESIN-33-B-SF490
• Halogen Free PUR Resin
• Relicon Cast Resin and Gel connectors
• Safe fill system
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Viscosity | 4500mPa-3000mPa |
| Gel Time | 48 min. 5 °C, 20 min. 23 °C, 9 min. 40 °C |
| Shore Hardness | 65±5 |
| Category | Cast Resin |
| Exothermicity | max. +71 °C |
| Environmental status | Environmentally safe |
| Size | 490ml |
| Dielectric Strength | 38 kV/mm |
| Material | Polyurethane Resin 33 |
| Pot Life | 43 min. 5 °C, 15 min. 23 °C, 8 min. 40 °C |
| Colour | Green |
| Brand Name | HellermannTyton |
| Item Name | Cable PUR33 Resin |
| UOM | Metric |
| Type | 240/415 volts |
| Impact Strength | 26 kJ/m² |
| Container Type | Bag |
| Temperature Range | -25 to 120°C |
| Shelf Life | 48 months |
| Mixing Ratio | (weight) 100:26 |
| Storage Temperature | +4 °C to +40 °C |
