Description

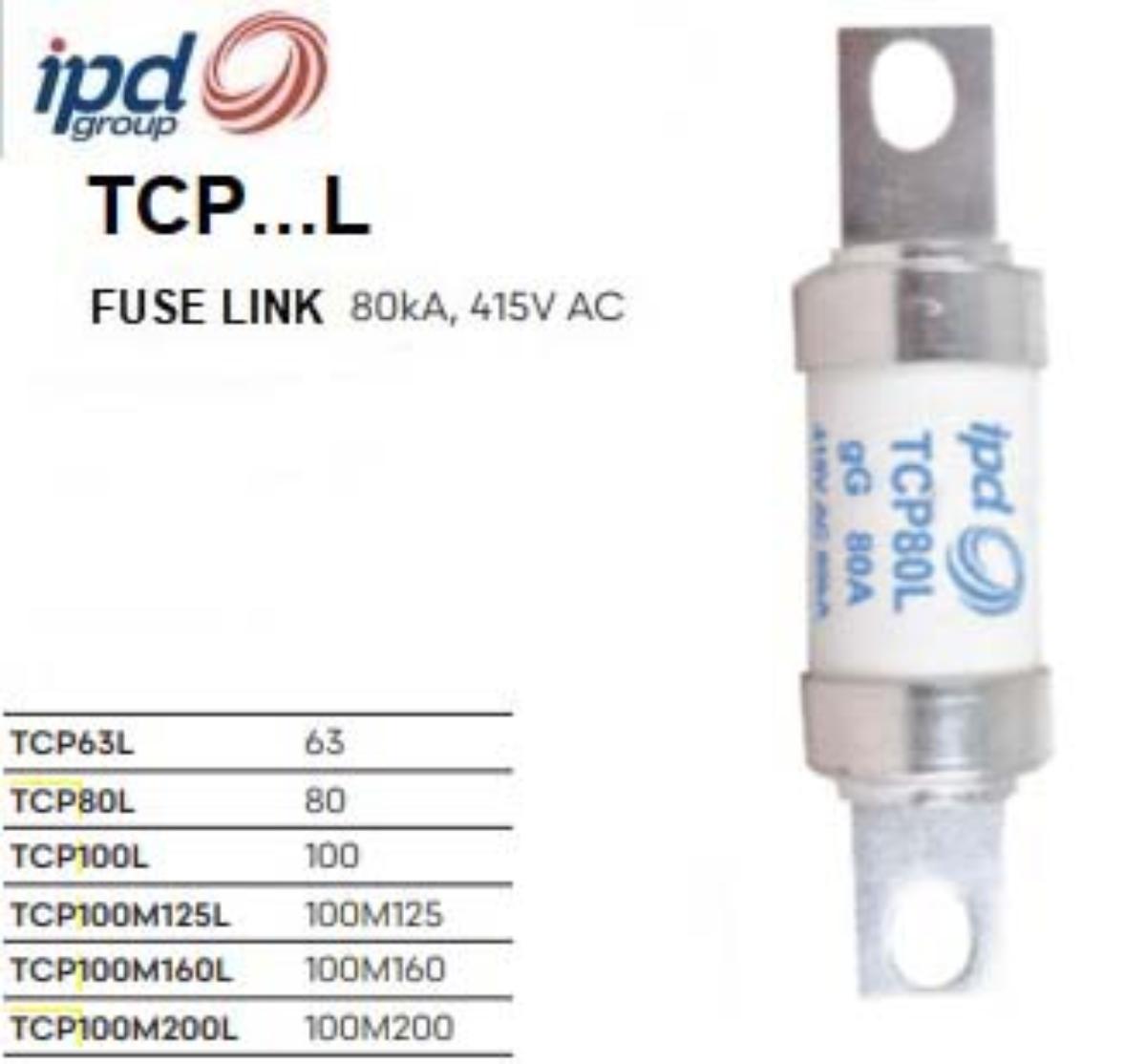

IPD TCP100L Fuse Cartridge Fuse Link HRC TCP 100 Amp 36.1x94mm Fixing Centres 415VAC
Features:
• The TCP_L offset bolted tags-2hole fixing BS fuse links (available in sizes A1 to A4) are designed for general industrial applications.
• They comply with the standard BS88-2 and IEC 60269-2.
• These fuse links have a breaking range and utilisation category of gG, providing good peak and let-through current limitation.
• The breaking capacity is AC: ASTA 20 certified up to 80 kA.
• The rated current is 100A, and the voltage is 415VAC.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Fuses |
| Size | 36.1x94mm Fixing Centres |
| Number of holes | 2 |
| Utilisation Category | Class gG |
| Fuse Type | HRC |
| Range | TCP |
| Fixing Centre | 94mm |
| Suitable for | Industrial |
| Mounting | Bolt-In Offset Tag |
| Brand Name | IPD |
| Box Qty | 10 |
| UOM | Metric |
| Length | 111mm |
| Body Diameter | 34.5mm |
| Voltage | 415VAC |
| Breaking Capacity AC (kA) | 80kA |
| Rated Current | 100 Amp |
| barcode | 9322017011758 |
| Width | 36.1mm |
| Breaking Capacity | 80kA (AC)-40kA (DC) |
| Standards and Approvals | BS88: Part 6 |
