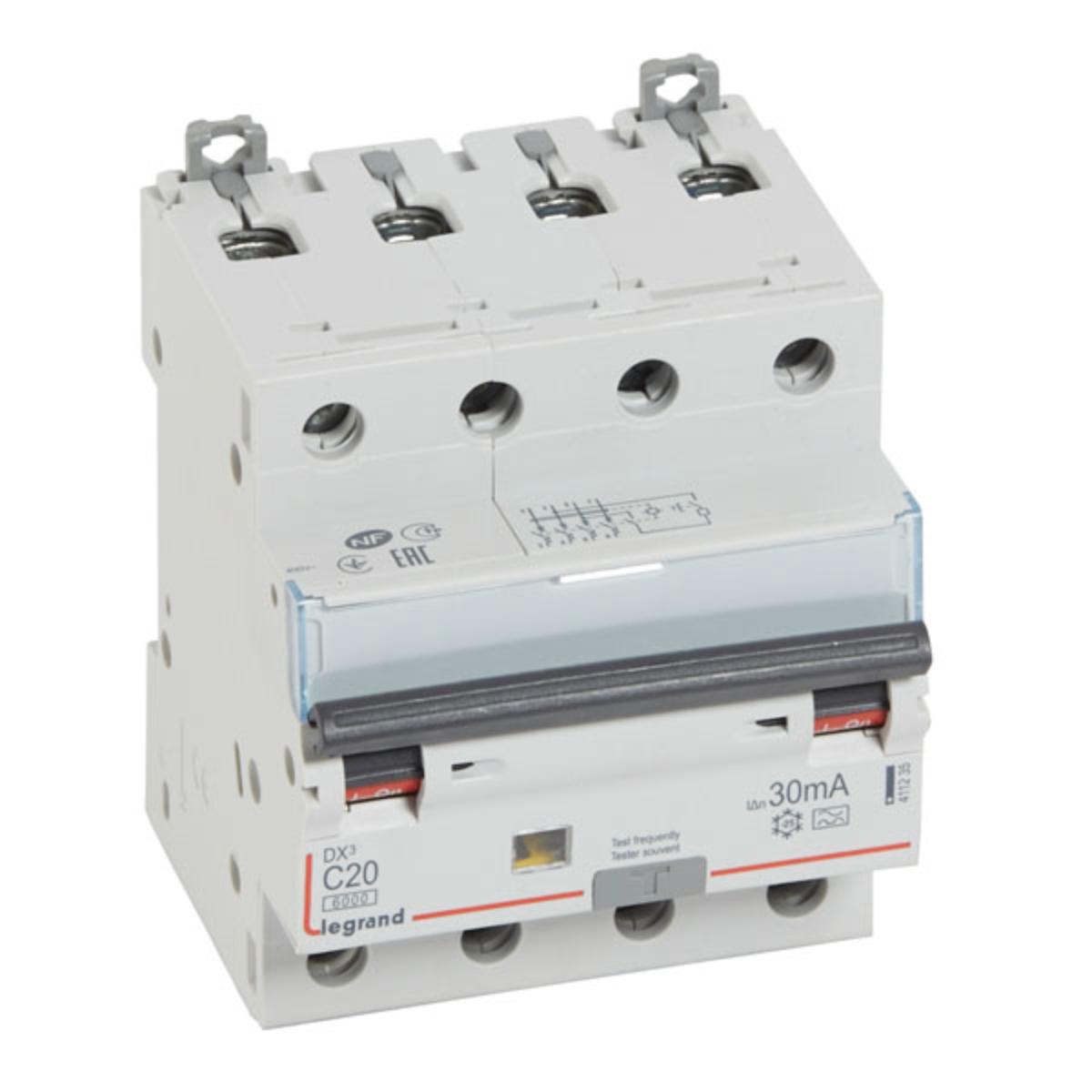

Legrand 411235 DX³ RCBO, 4P, 20A, 6kA Breaking Capacity, C Curve, DIN Rail Mount, 30mA Sensitivity, AS/NZ 61009-1, IP20, Polyamide, 400VAC, White

The Legrand RCBO is a sophisticated Residual Current Operated Circuit Breaker designed to provide comprehensive control and protection for electrical circuits. With a rated current of 20A and a breaking capacity of 6kA, this device effectively safeguards against short circuits and overloads while ensuring the isolation of electrical circuits. The RCBO features a C Curve characteristic, making it suitable for various applications where moderate inrush currents are expected.

Designed for DIN rail mounting, the RCBO occupies four modules and operates at a voltage of 400VAC. It is compliant with AS/NZ 61009-1 standards, ensuring reliability and safety in operation. The device has an IP20 rating, making it suitable for indoor use, and operates efficiently within a temperature range of -25 to 60°C. Additionally, its A Type sensitivity of 30mA allows it to detect both AC and DC component faults, providing enhanced immunity to unwanted tripping in disturbed environments. || The Legrand RCBO is a sophisticated Residual Current Operated Circuit Breaker designed to provide comprehensive control and protection for electrical circuits. With a rated current of 20A and a breaking capacity of 6kA, this device effectively safeguards against short circuits and overloads while ensuring the isolation of electrical circuits. The RCBO features a C Curve characteristic, making it suitable for various applications where moderate inrush currents are expected.

Designed for DIN rail mounting, the RCBO occupies four modules and operates at a voltage of 400VAC. It is compliant with AS/NZ 61009-1 standards, ensuring reliability and safety in operation. The device has an IP20 rating, making it suitable for indoor use, and operates efficiently within a temperature range of -25 to 60°C. Additionally, its A Type sensitivity of 30mA allows it to detect both AC and DC component faults, providing enhanced immunity to unwanted tripping in disturbed environments.

Features:
• Residual Current Operated Circuit Breaker with positive contact indication for enhanced safety
• Rated current of 20A with a breaking capacity of 6kA
• C Curve design suitable for various applications
• DIN Rail mounting for easy installation
• 4 Pole configuration with 4 modules for comprehensive protection
• Temperature range of -25 to 60°C for versatile usage
• Sensitivity of 30mA for effective fault detection
• Constructed from durable polyamide and PBT materials
• IP20 rating for protection against solid objects greater than 12.5mm
• Compliant with AS/NZ 61009-1 standards for reliability and safety
