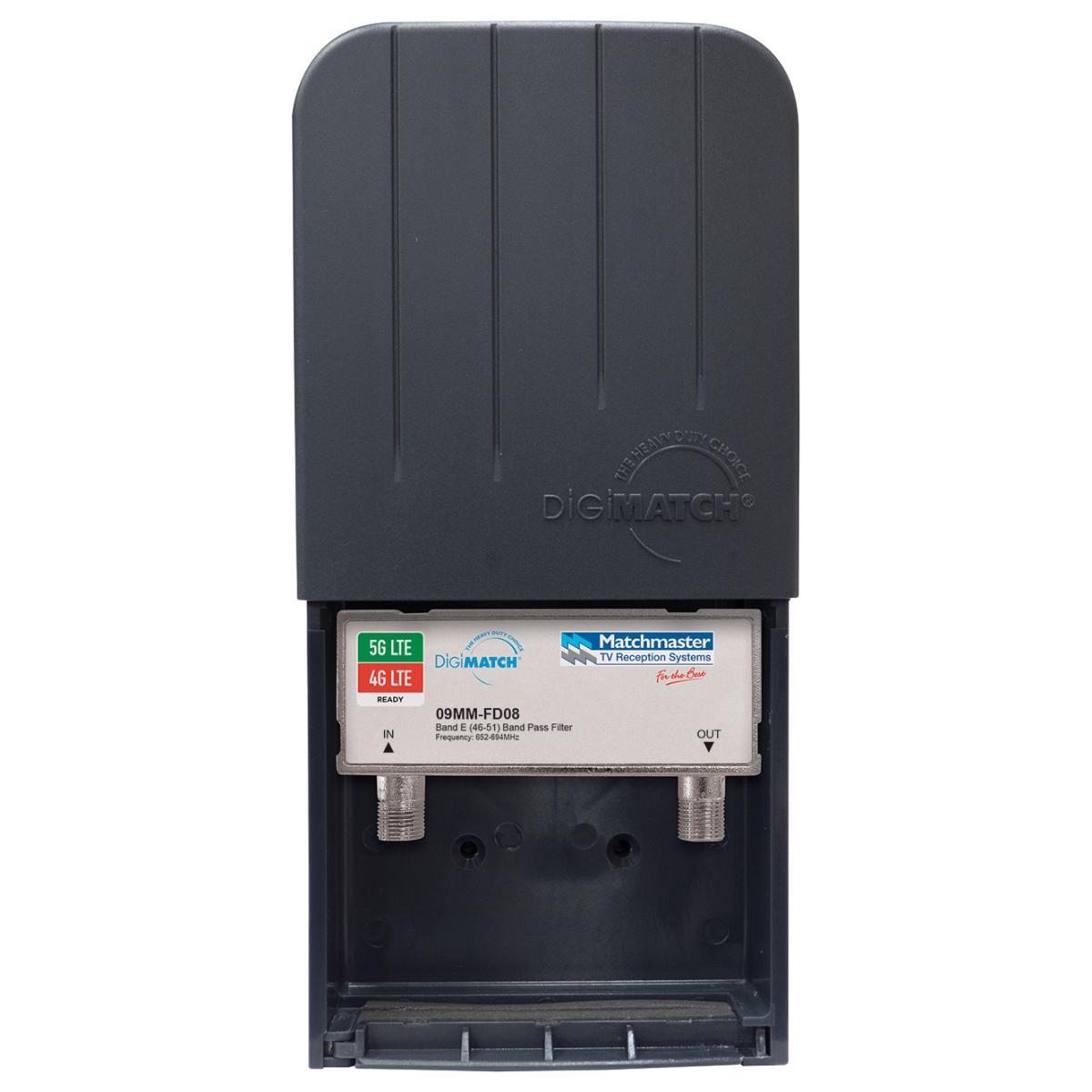

Matchmaster 09MM-FD08 Digital Band Pass Filter, Filter Band Pass Channels (46-51) Band E, Frequency 652-694MHz, Eliminates unwanted channels at lower frequency to allocate correct logical channel numbers
Code: MAT09MM-FD08
Unit of measure:
EACH
Description
Matchmaster 09MM-FD08 Digital Band Pass Filter, Filter Band Pass Channels (46-51) Band E, Frequency 652-694MHz, Eliminates unwanted channels at lower frequency to allocate correct logical channel numbers
Features:
• Frequency 652-694MHz
• Eliminates unwanted channels at lower frequency to allocate correct logical channel numbers
• Through loss
• 4.14dB typical
• Weatherproof housing for external mounting
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Finish/Color | Plastic and Metal |
| Mount | Coax |
| Standard | AS1367, AS1417, IEC60169 |
| Band | E |
| Material | Plastic and Metal |
| Channels | 46 - 51 |
| Colour | Black |
| Brand Name | Matchmaster |
| Item Name | Filter |
| Box Quantity | 1 |
| Connection Type | Female Connector |
| Frequency | 652 - 694MHz |
| Carton Quantity | 50 |
| Finish | Plastic and Metal |
