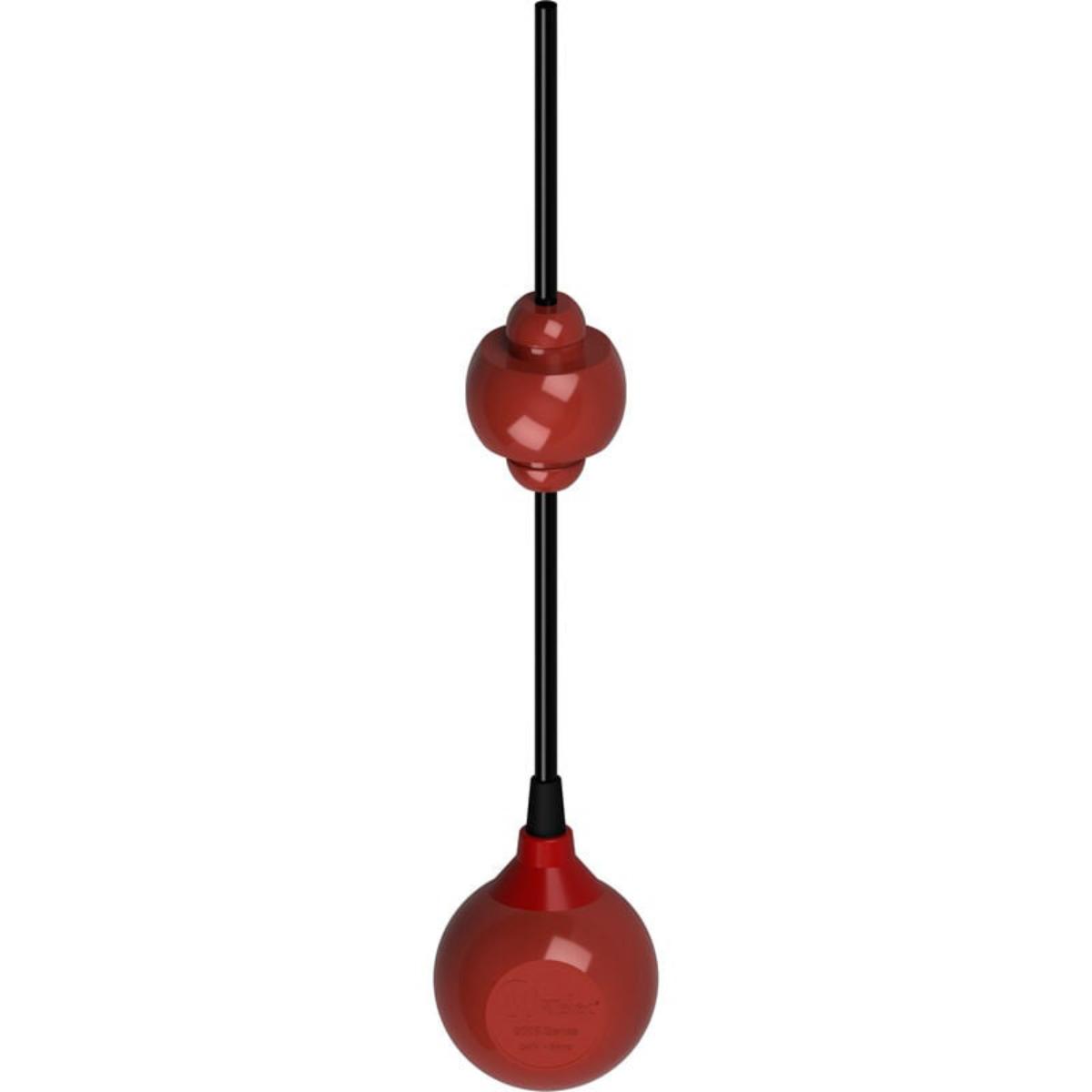

Matelec FSW-12530, Float Switch 9006 NRB 10m
Code: MATFSW-12530
Unit of measure:
EACH
Description
Matelec FSW-12530, Float Switch 9006 NRB 10m
Features:
• Smooth, robust ABS switch housing reduces adhesion of foreign materials
• ‘Sliding detent action’ obviates wave induced oscillation, maintaining consistency in switching level accuracy
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max Voltage | 240Vac 50/60Hz |
| Warranty | 25 Years |
| Configuration | 1 NO + 1 NC |
| Max Current | 6AMPS (COS 0) |
| Liquid Temperature | Min 5˚C (41˚F), max 60˚C (140˚F) |
| Cable Material | Neoprene rubber |
| Pressure Rating | 35 mPa |
| Material | Neoprene Rubber |
| Contact Type | Microswitch with NO and NC contacts |
| Range | 9006 Series |
| Liquid Density | Min .65g/cm, max 1.5g/cm |
| MOQ | 1 |
| Brand Name | Matelec |
| Contact Life | 10,000 switches |
| Item Name | Float Switch |
| EAN/UPC | 2000000689296 |
| Carton QTY | 1 |
| Working Pressure | .35MPa |
| Voltage | 240 VAC |
| Degree of Protection | IP68 |
| Cable Length | 10m |
| Cable Size | ø7mm / 3 x .75mm2 |
| Current | 6A |
| Protection | IP68 @ 20m (65ft) |
