Description

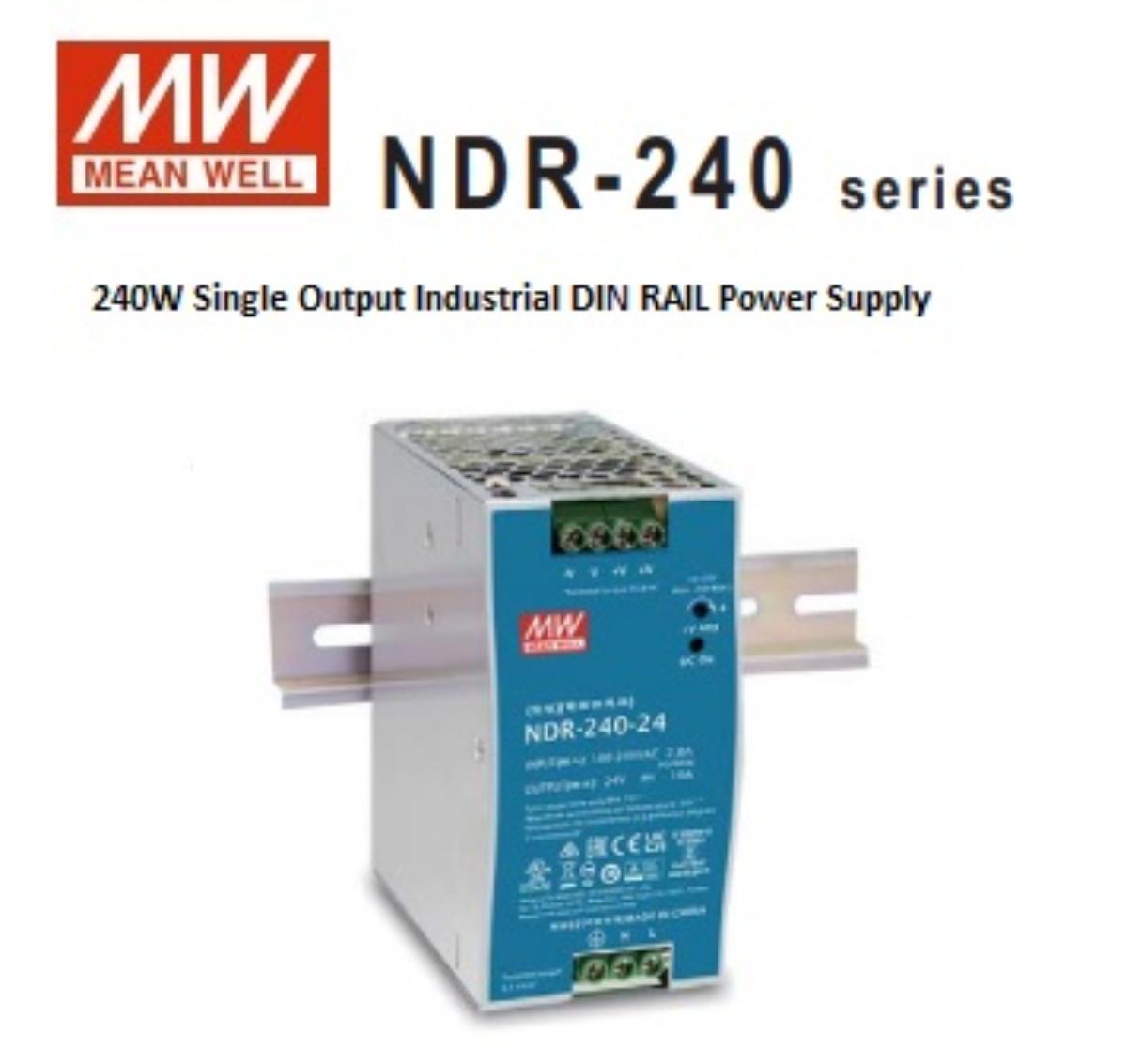

Meanwell NDR-240-24 Power Supply Din Rail Mount, INPUT 90-264VAC, Output 24VDC, 10Amp, 240Watt
Meanwell Power Supply 24Vdc 10A
Features:
• NDR-240 is one econpmical slim 240Watt Din rail Power supply series
• The body is designed 63mm in width, which allows space saving inside the cabinets.
• The entire series adopts the full rangr AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2
• With working efficiency up to 90%, the entire series can operate at ambient temperature between -20° C and 70° C under air convention.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Wattage | 240W |
| Input Voltage | 90-264VAC |
| Brand Name | Meanwell |
| Box Quantity | 1 |
| Length | 113.5mm |
| Voltage | 24V |
| UNSPCS | 39100000 |
| Frequency | 47 - 63Hz |
| Rated Current | 10A |
| Rated Power | 240W |
| Height | 125.2mm |
| Width | 63mm |
| Output Voltage | 24 VDC 10 Amp 240W. |
