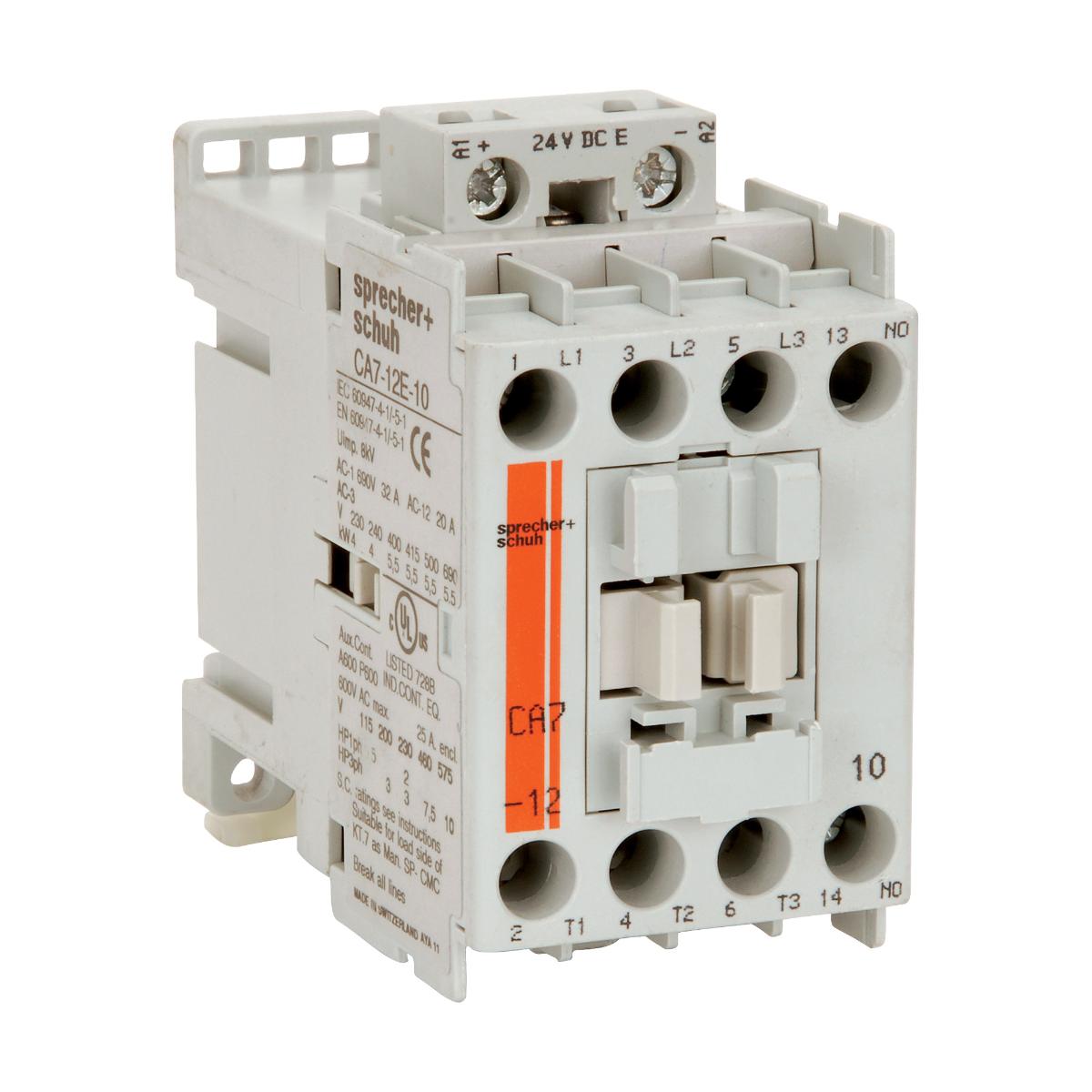

NHP CA716E1024VDC S+S CA7 Contactor 7.5kW 3Pole 24VDC Coil 1NO Contact Auxiliary
Code: NHPCA716E1024VDC
Unit of measure:
EACH
Description
NHP CA716E1024VDC S+S CA7 Contactor 7.5kW 3Pole 24VDC Coil 1NO Contact Auxiliary
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Standard | cULus, CE, UL, CSA |
| HP Rating | 5 hp at 200 V, 5 hp at 230 V, 10 hp at 460 V, 15 hp at 575 V |
| Voltage type for actuating | DC |
| Number of normally closed contacts as main contact | 0 |
| Depth | 86.5mm |
| Coil Power Rating | 7.5 kW |
| Rated operation current Ie at AC-4 - 400V | 9A |
| Number of auxiliary contacts as normally open contact | 1 |
| Voltage | 400/415/500/690 VAC |
| Supplier Code | CA716E1024VDC |
| UNSPCS | 39121529 |
| Height | 81mm |
| Rated operation current Ie at AC-3 - 400V | 16A |
| Rated operation current Ie at AC-1 - 400V | 32A |
| Width | 45mm |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Power consumption - DC coil hold-in | 1.7W |
| Maximum Load Current | 16 A |
| Rated operation power at AC-3 - 690 V | 7.5kW |
| Rated operation power at AC-4 - 400V | 4kW |
| Dimensions | 3-11/64 Inch Height x 1-25/32 Inch Width |
| Operating Cycles | 5000000 |
| Max. rated operation voltage Ue AC | 690V |
| Weight | 0.4kg |
| Number of normally open contacts as main contact | 3 |
| Brand Name | NHP |
| Power consumption - DC coil pickup | 10W |
| Item Name | Contactor |
| Type | Non-Reversing |
| Contact Configuration | 1 NO |
| IP Rating | IP2X |
| Control supply voltage Us at DC | 24V |
| Mounting method | DIN-rail/screw |
| Coil Voltage | 24 VDC Electronic |
| ETIM Class | Power contactor - AC switching |
| Number of Poles | 3 |
| Rated operation power at AC-3 - 400V | 7.5kW |
| Rated operation current Ie at AC-3 - 690 V | 9A |
