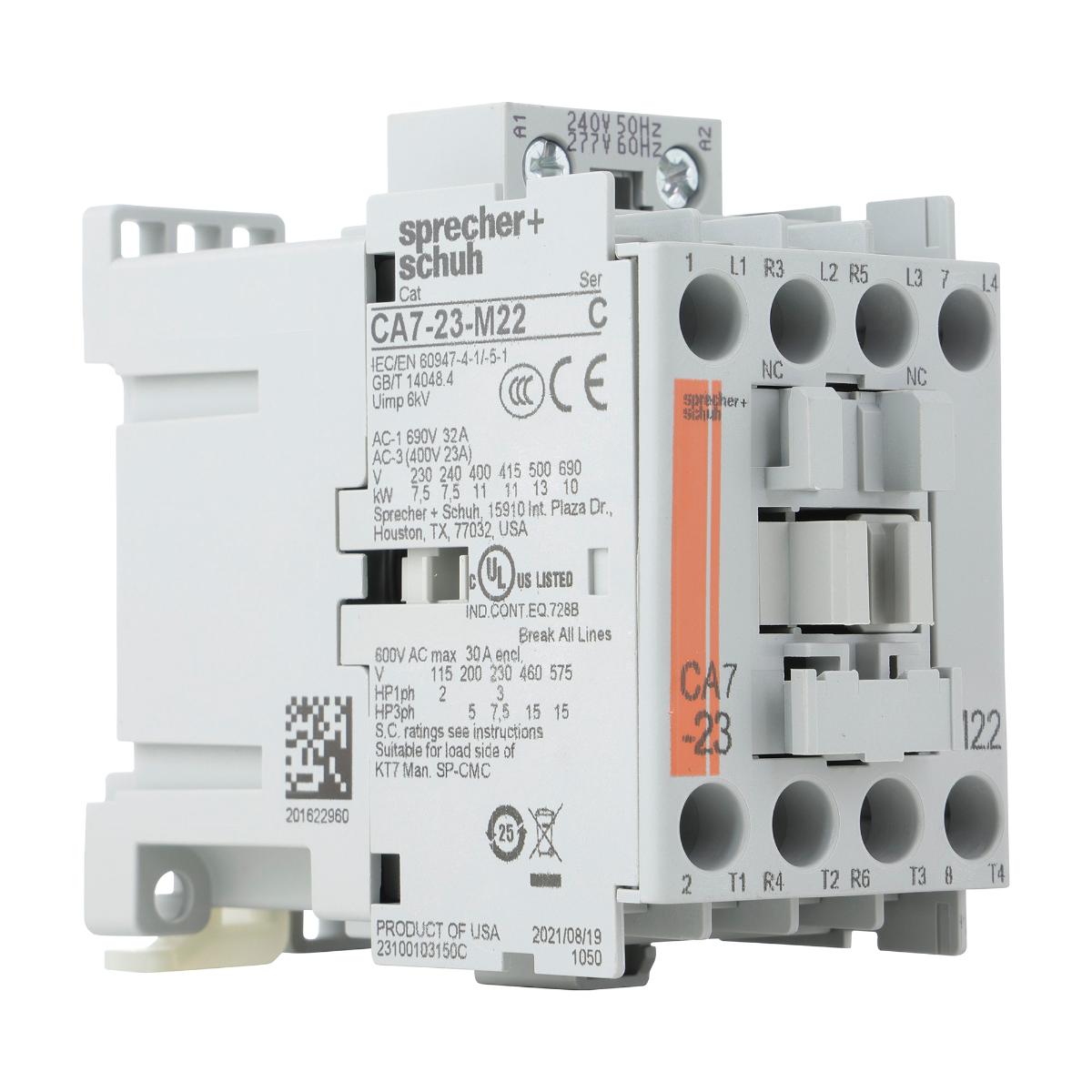

NHP CA723M22240VAC S+S CA7 Contactor 11kW 4Pole 240VAC Coil 2NO 2NC Contact Auxiliary
Code: NHPCA723M22240VAC
Unit of measure:
EACH
Description
NHP CA723M22240VAC S+S CA7 Contactor 11kW 4Pole 240VAC Coil 2NO 2NC Contact Auxiliary
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Voltage type for actuating | AC |
| Number of normally closed contacts as main contact | 2 |
| Depth | 86.5mm |
| Power consumption - AC coil hold-in | 9.5VA |
| Power consumption - AC coil pickup | 75VA |
| Number of auxiliary contacts as normally open contact | 0 |
| Supplier Code | CA723M22240VAC |
| Height | 81mm |
| Rated operation current Ie at AC-3 - 400V | 23A |
| Rated operation current Ie at AC-1 - 400V | 32A |
| Width | 45mm |
| Number of auxiliary contacts as normally closed contact | 0 |
| Control supply voltage Us at AC 50HZ | 240V |
| Control supply voltage Us at AC 60HZ | 277V |
| Type of electrical connection of main circuit | Screw connection |
| Rated operation power at AC-3 - 690 V | 10kW |
| Max. rated operation voltage Ue AC | 690V |
| Weight | 0.39kg |
| Number of normally open contacts as main contact | 2 |
| Brand Name | NHP |
| IP Rating | IP2X |
| Mounting method | DIN-rail/screw |
| ETIM Class | Power contactor - AC switching |
| Rated operation power at AC-3 - 400V | 11kW |
| Rated operation current Ie at AC-3 - 690 V | 12A |
