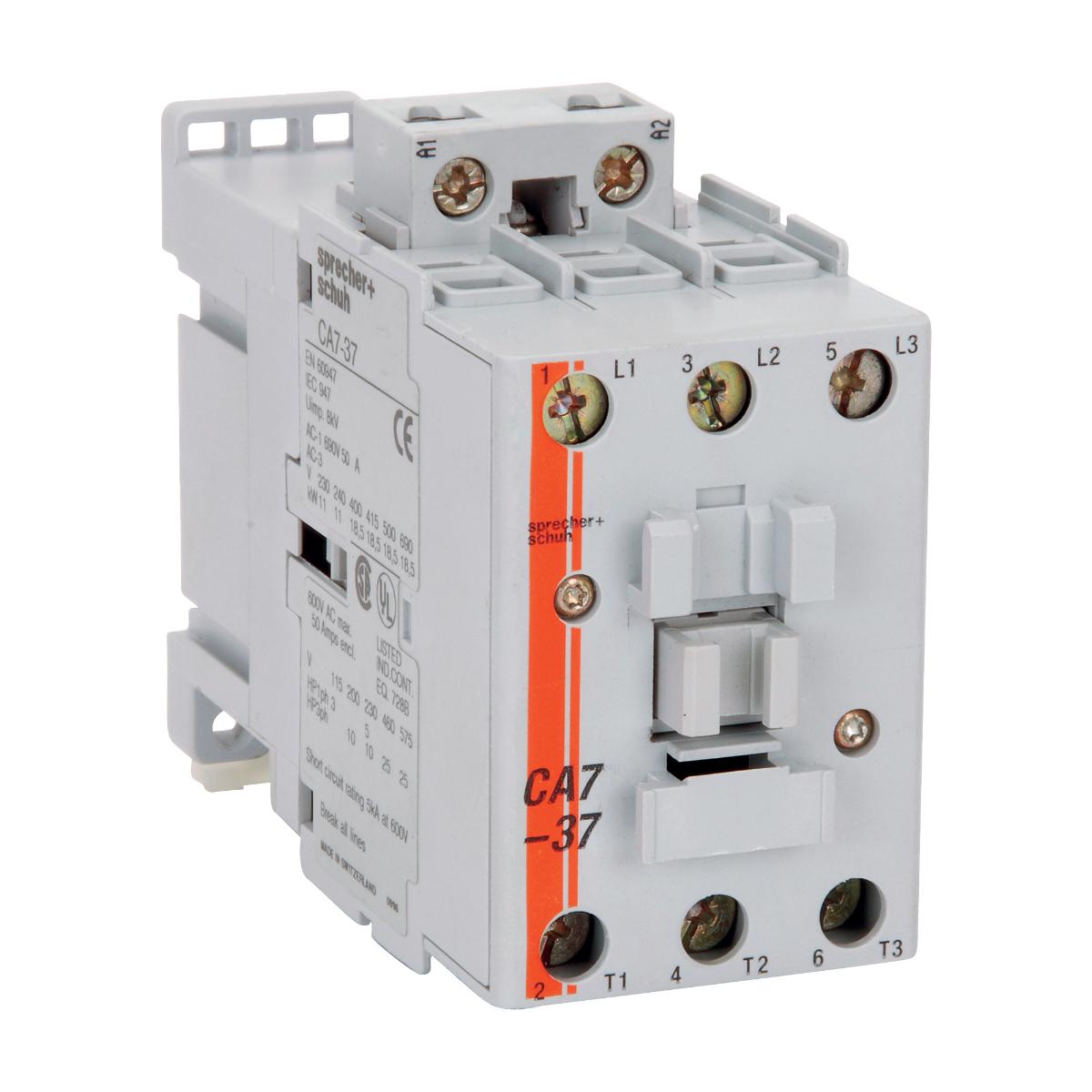

NHP CA737E0024VDC S+S CA7 Contactor 18.5kW 3Pole 24VDC Coil
Code: NHPCA737E0024VDC
Unit of measure:
EACH
Description
NHP CA737E0024VDC S+S CA7 Contactor 18.5kW 3Pole 24VDC Coil
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Voltage type for actuating | DC |
| Number of normally closed contacts as main contact | 0 |
| Depth | 104mm |
| Rated operation current Ie at AC-4 - 400V | 14A |
| Number of auxiliary contacts as normally open contact | 0 |
| Supplier Code | CA737E0024VDC |
| Height | 81mm |
| Rated operation current Ie at AC-3 - 400V | 37A |
| Rated operation current Ie at AC-1 - 400V | 65A |
| Width | 45mm |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Power consumption - DC coil hold-in | 1.7W |
| Rated operation power at AC-3 - 690 V | 18.5kW |
| Rated operation power at AC-4 - 400V | 6.3kW |
| Max. rated operation voltage Ue AC | 690V |
| Weight | 0.49kg |
| Number of normally open contacts as main contact | 3 |
| Brand Name | NHP |
| Power consumption - DC coil pickup | 10W |
| IP Rating | IP2X |
| Control supply voltage Us at DC | 24V |
| Mounting method | DIN-rail/screw |
| ETIM Class | Power contactor - AC switching |
| Rated operation power at AC-3 - 400V | 20kW |
| Rated operation current Ie at AC-3 - 690 V | 21A |
