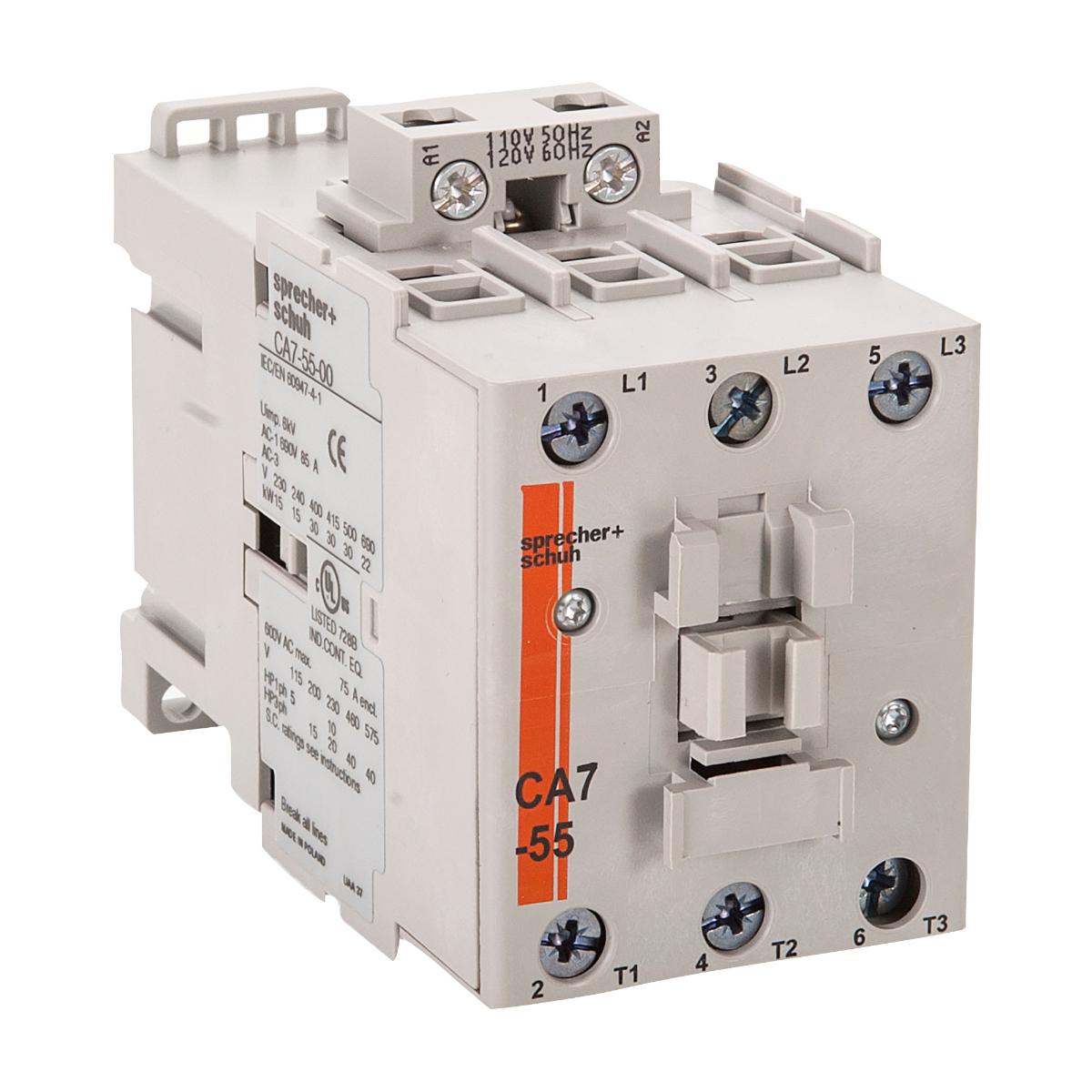

NHP CA75500240VAC S+S CA7 Contactor 30kW 3Pole 240VAC Coil
Code: NHPCA75500240VAC
Unit of measure:
EACH
Description
NHP CA75500240VAC S+S CA7 Contactor 30kW 3Pole 240VAC Coil
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Voltage type for actuating | AC |
| Number of normally closed contacts as main contact | 0 |
| Depth | 107mm |
| Power consumption - AC coil hold-in | 13.3VA |
| Power consumption - AC coil pickup | 135VA |
| Rated operation current Ie at AC-4 - 400V | 22A |
| Number of auxiliary contacts as normally open contact | 0 |
| Supplier Code | CA75500240VAC |
| Height | 81mm |
| Rated operation current Ie at AC-3 - 400V | 55A |
| Rated operation current Ie at AC-1 - 400V | 85A |
| Width | 54mm |
| Number of auxiliary contacts as normally closed contact | 0 |
| Control supply voltage Us at AC 50HZ | 240V |
| Control supply voltage Us at AC 60HZ | 277V |
| Type of electrical connection of main circuit | Screw connection |
| Rated operation power at AC-3 - 690 V | 22kW |
| Rated operation power at AC-4 - 400V | 11kW |
| Max. rated operation voltage Ue AC | 690V |
| Weight | 0.51kg |
| Number of normally open contacts as main contact | 3 |
| Brand Name | NHP |
| IP Rating | IP2X |
| Mounting method | DIN-rail/screw |
| ETIM Class | Power contactor - AC switching |
| Rated operation power at AC-3 - 400V | 30kW |
| Rated operation current Ie at AC-3 - 690 V | 25A |
