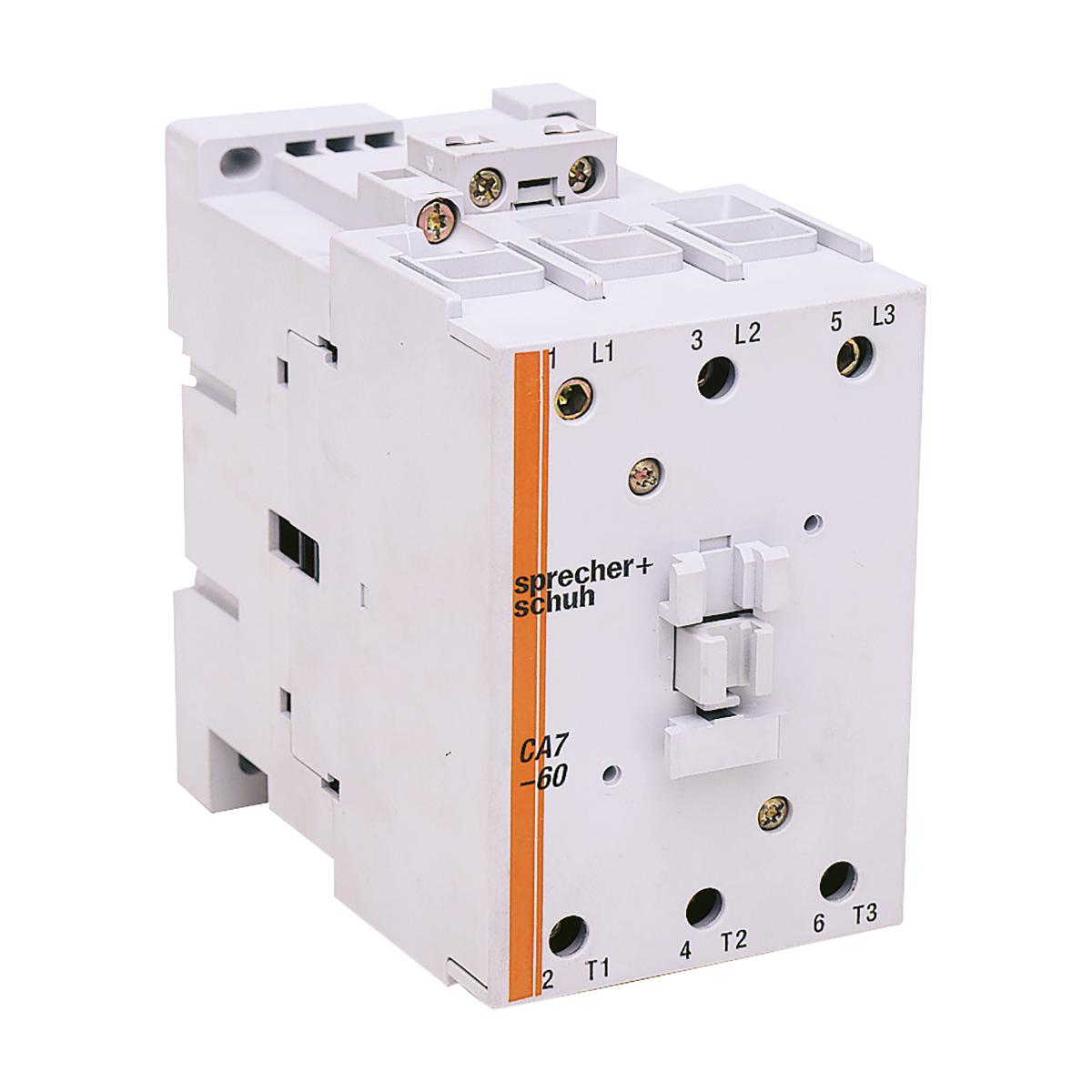

NHP CA77200415VAC S+S CA7 Contactor 37kW 3Pole 415VAC Coil
Code: NHPCA77200415VAC
Unit of measure:
EACH
Description
NHP CA77200415VAC S+S CA7 Contactor 37kW 3Pole 415VAC Coil
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole |
| Standard | cULus, CE, UL, CSA |
| Voltage type for actuating | AC |
| Number of normally closed contacts as main contact | 0 |
| Depth | 125.5mm |
| Power consumption - AC coil hold-in | 19.6VA |
| Power consumption - AC coil pickup | 235VA |
| Rated operation current Ie at AC-4 - 400V | 31A |
| Number of auxiliary contacts as normally open contact | 0 |
| Voltage | 400 - 415 - 690V |
| Supplier Code | CA77200415VAC |
| UNSPCS | 39121529 |
| Height | 122mm |
| Rated operation current Ie at AC-3 - 400V | 72A |
| Rated operation current Ie at AC-1 - 400V | 100A |
| Width | 72mm |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Rated operation power at AC-3 - 690 V | 40kW |
| Rated operation power at AC-4 - 400V | 15kW |
| Max. rated operation voltage Ue AC | 690V |
| Weight | 1.45kg |
| Number of normally open contacts as main contact | 3 |
| Rated control supply voltage Us at AC 50HZ | 400-415V |
| Brand Name | NHP |
| Item Name | Contactor |
| IP Rating | IP2X |
| Mounting method | Screw mounting |
| Coil Voltage | 415VAC |
| ETIM Class | Power contactor - AC switching |
| Rated operation power at AC-3 - 400V | 40kW |
| Current | 72A |
| Rated operation current Ie at AC-3 - 690 V | 42A |
