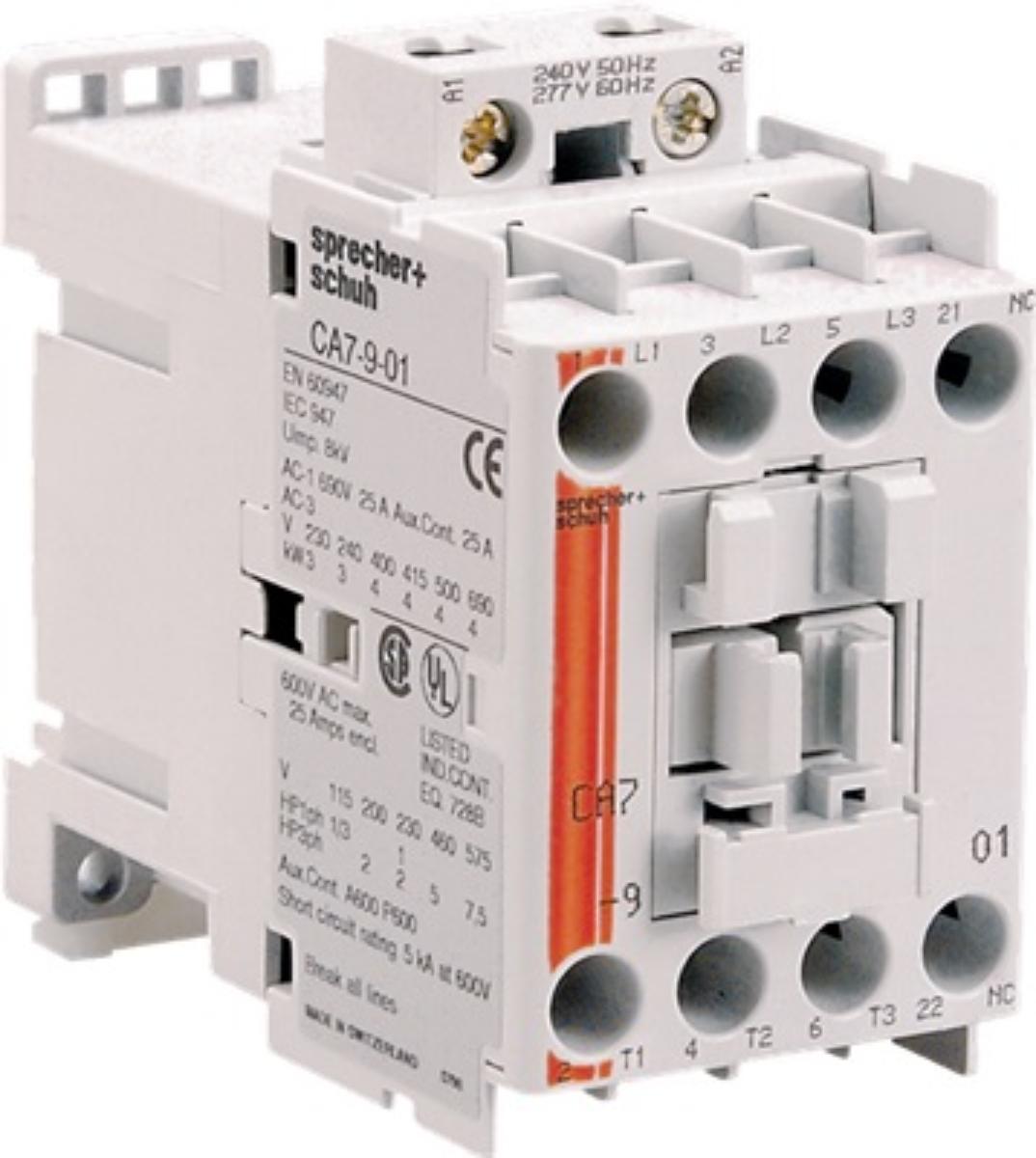

NHP CA7901240VAC CA7 Series Contactor, 3 Pole, 240Vac, 4KW, 9A AC3, 1 N/C Auxiliary, Screw Terminals, Din Rail Mount, 80mm x 86mm x 45mm
Code: NHPCA7901240VAC
Unit of measure:
EACH
Description
CONTACTOR 3P 9A AC3 4KW 240VAC COIL
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole |
| Mount | Din Rail |
| Standard | cULus, CE, UL, CSA |
| Pole Configuration | 3 Pole |
| Material | Plastic and Metal |
| Range | CA7 Series |
| Colour | Grey |
| Brand Name | NHP |
| Item Name | Contactor |
| Box Quantity | 1 |
| Contact Configuration | 1 NC |
| IP Rating | IP20 |
| Connection Type | Screw Terminal |
| Voltage | 240V |
| Coil Voltage | 240VAC |
| Frequency | 50 - 60Hz |
| Height | 80mm |
| Width | 45mm |
| Current | 9A |
