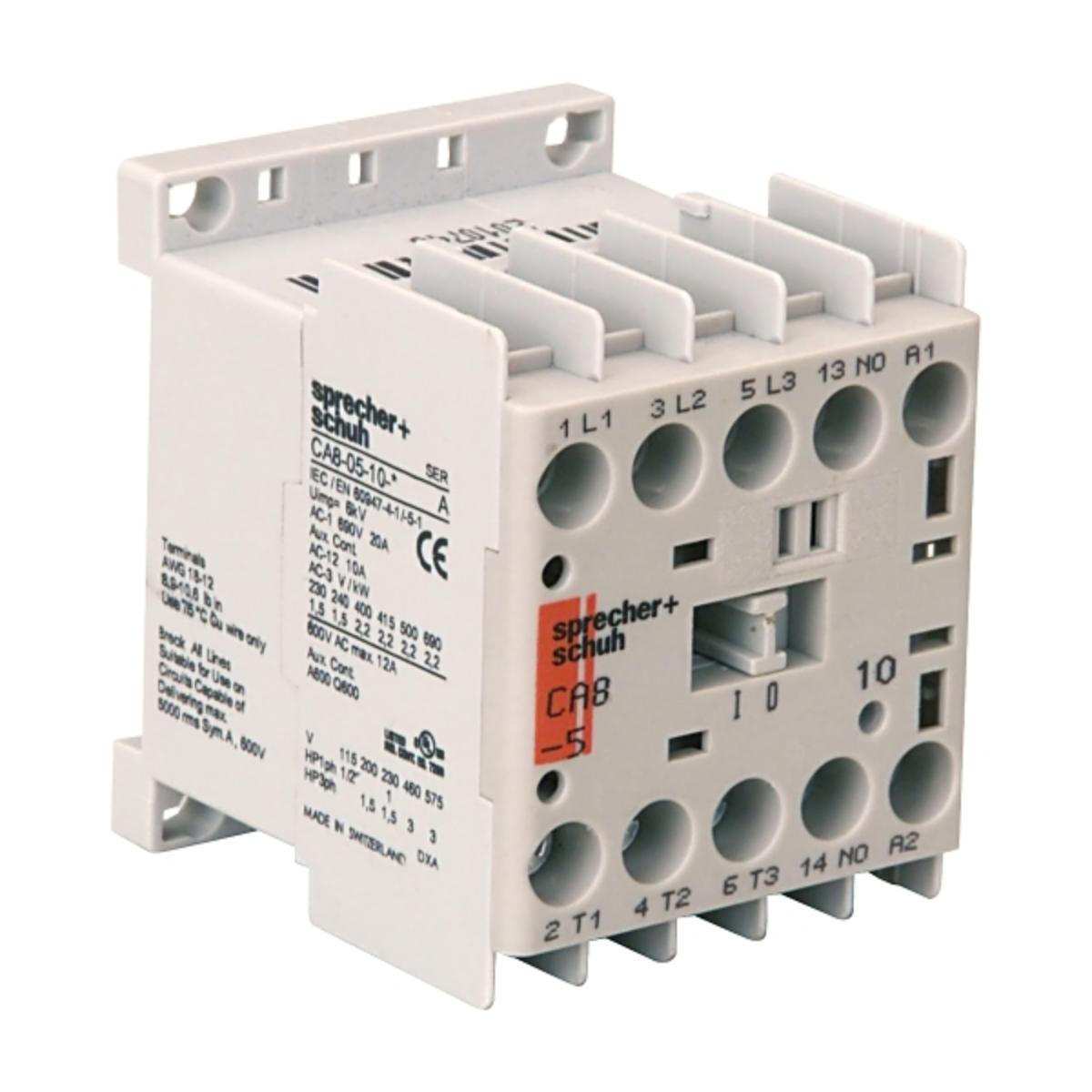

NHP CA81210240VAC CA8 Mini Contactor, 3 Pole, 12A AC3, 5.5kW 240VAC, 3NO, IP20, Compact Design, 53mm Length, 44.9mm Width, 56mm Height, White
Code: NHPCA81210240VAC
Unit of measure:
EACH
Description
MINI CONTACTOR 3P 12A AC3 5.5KW 240VAC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 |
| Warranty | 1 Year |
| Standard | IEC/EN 60947-1, CE, cULus |
| Range | CA8 Mini |
| Kilowatt Rating | 5.5kW (AC-3 400V) |
| Weight | 0.16kg |
| Brand Name | NHP Electrical |
| Item Name | Contactor |
| UOM | Metric |
| Contact Configuration | 3NO,0NC |

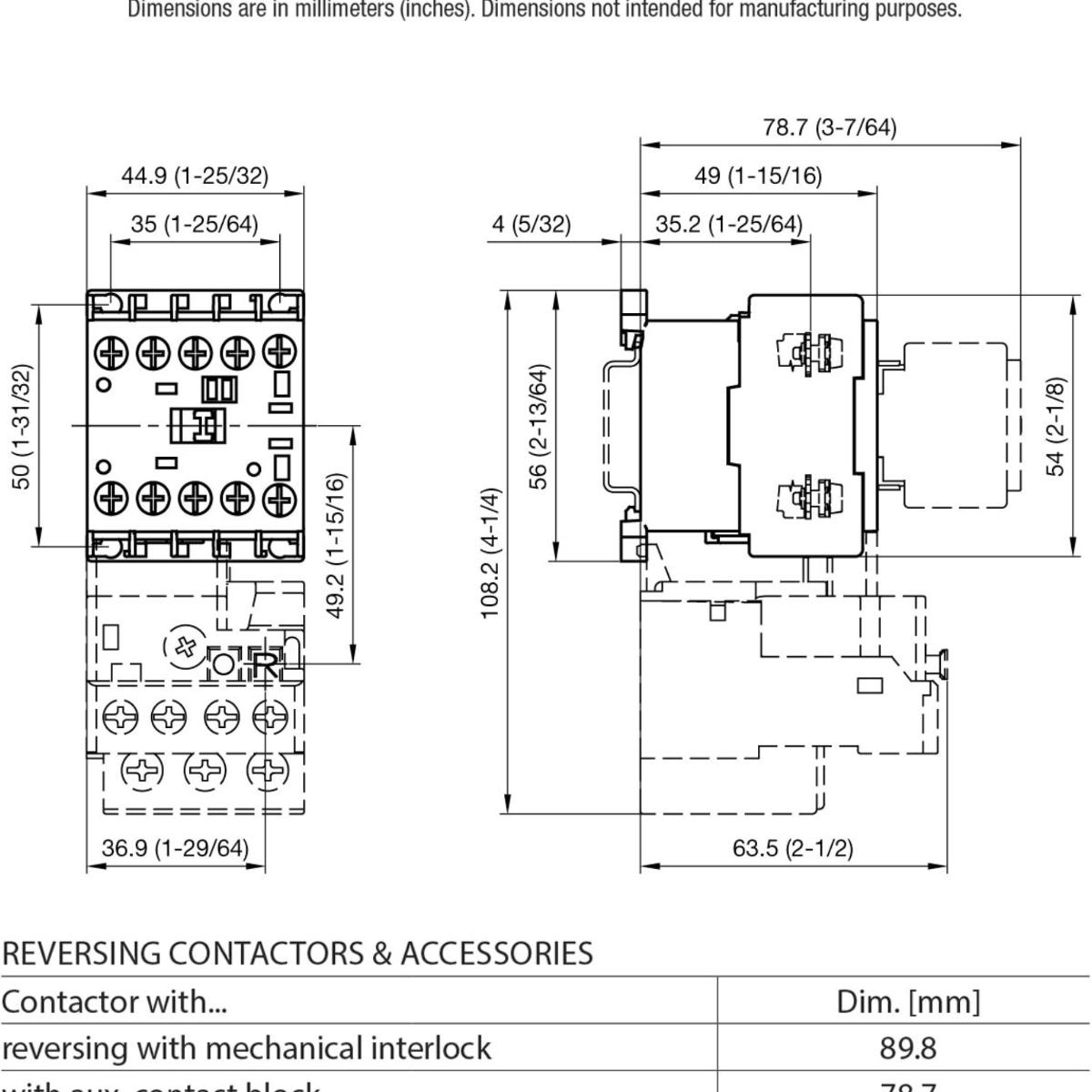

| Length | 53mm |
| Voltage | 400 - 415 - 500V |
| UNSPCS | 39121529 |
| Coil Voltage | 240VAC |
| UNSPSC | 39121529 |
| Rated Current | 11.5A (AC-3 400V),20A (AC-1 400V) |
| Height | 56mm |
| Current | 12A |
| Width | 44.9mm |
