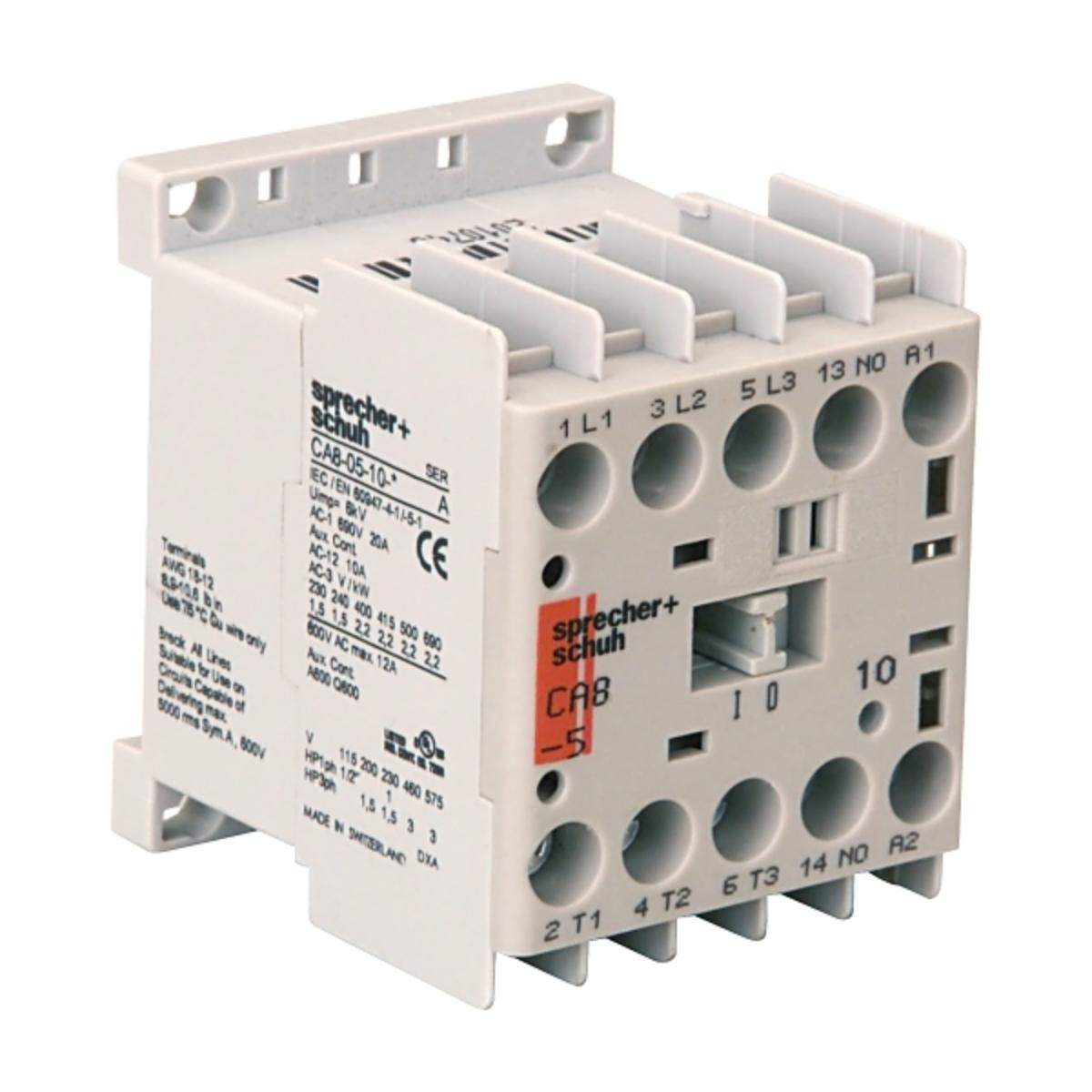

NHP CA8910240VAC CA8 Mini Contactor, 3 Pole, 9A AC3, 4kW, 240VAC Coil, 3NO, IP20, Compact Design, 53mm x 44.9mm x 56mm, White
Code: NHPCA8910240VAC
Unit of measure:
EACH
Description
MINI CONTACTOR 3P 9A AC3 4KW 240VAC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Temperature Rating | -25 to 60 deg C |
| Poles | 3 |
| Maximum Load Current | 9 A |
| Warranty | 1 Year |
| Standard | IEC/EN 60947-1, CE, cULus |
| Mounting Type | Din Rail |
| Range | CA8 Mini |
| Kilowatt Rating | 4kW (AC-3 400 V) |
| Weight | 0.16kg |
| Brand Name | NHP Electrical |
| Item Name | Contactor |
| Type | Non-Reversing, Miniature |
| UOM | Metric |
| Contact Configuration | 3NO,0NC |
| Coil Power Rating | 4 kW |

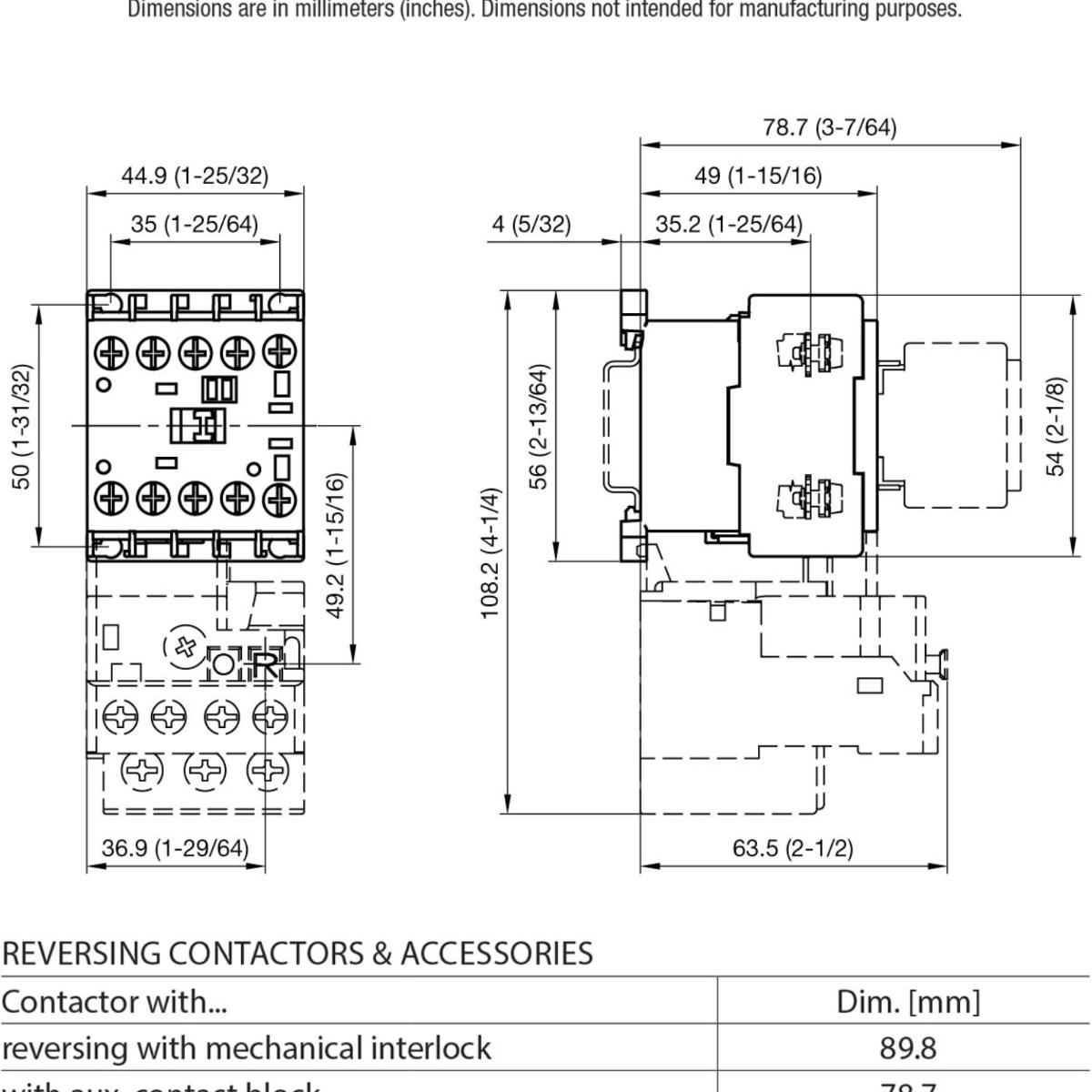

| Length | 53mm |
| UNSPCS | 39121529 |
| Coil Voltage | 240VAC |
| UNSPSC | 39121529 |
| Number of Poles | 3 |
| Rated Current | 8.5A (AC-3 400V),20A (AC-1 400V) |
| Height | 56mm |
| Width | 44.9mm |
