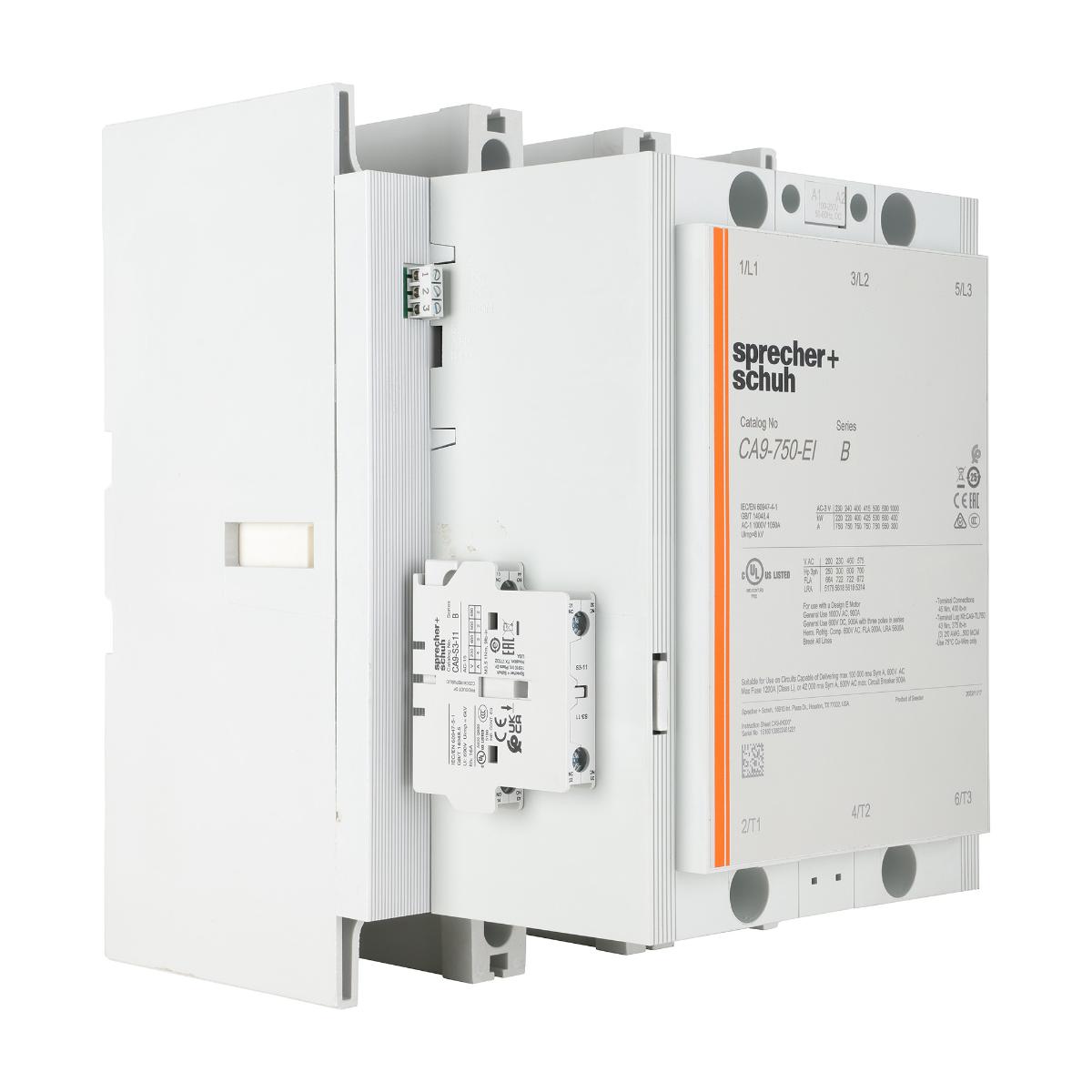

NHP CA9750EI11120W S+S CA9 Contactor 425kW 3Pole 100 to 250VAC and VDC Electronic Coil 1NO 1NC Contact Auxiliary
Code: NHPCA9750EI11120W
Unit of measure:
EACH
Description
NHP CA9750EI11120W S+S CA9 Contactor 425kW 3Pole 100 to 250VAC and VDC Electronic Coil 1NO 1NC Contact Auxiliary
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Voltage type for actuating | AC/DC |
| Number of normally closed contacts as main contact | 0 |
| Rated operation power at AC-3 - 1000 V | 400kW |
| Depth | 242mm |
| Rated control supply voltage Us at AC 60HZ | 100-250V |
| Power consumption - AC coil hold-in | 12VA |
| Power consumption - AC coil pickup | 880VA |
| Number of auxiliary contacts as normally open contact | 1 |
| Supplier Code | CA9750EI11120W |
| Height | 273mm |
| Rated operation current Ie at AC-3 - 400V | 750A |
| Rated operation current Ie at AC-1 - 400V | 1050A |
| Width | 210mm |
| Number of auxiliary contacts as normally closed contact | 1 |
| Type of electrical connection of main circuit | Bolt connection |
| Power consumption - DC coil hold-in | 5W |
| Rated operation power at AC-3 - 690 V | 600kW |
| Rated operation current Ie at AC-3 - 1000 V | 300A |
| Max. rated operation voltage Ue AC | 1000V |
| Weight | 15kg |
| Number of normally open contacts as main contact | 3 |
| Rated control supply voltage Us at AC 50HZ | 100-250V |
| Brand Name | NHP |
| Power consumption - DC coil pickup | 898W |
| IP Rating | IP00 |
| Rated control supply voltage Us at DC | 100-250V |
| Mounting method | Screw mounting |
| ETIM Class | Power contactor - AC switching |
| Rated operation power at AC-3 - 400V | 425kW |
| Rated operation current Ie at AC-3 - 690 V | 650A |
