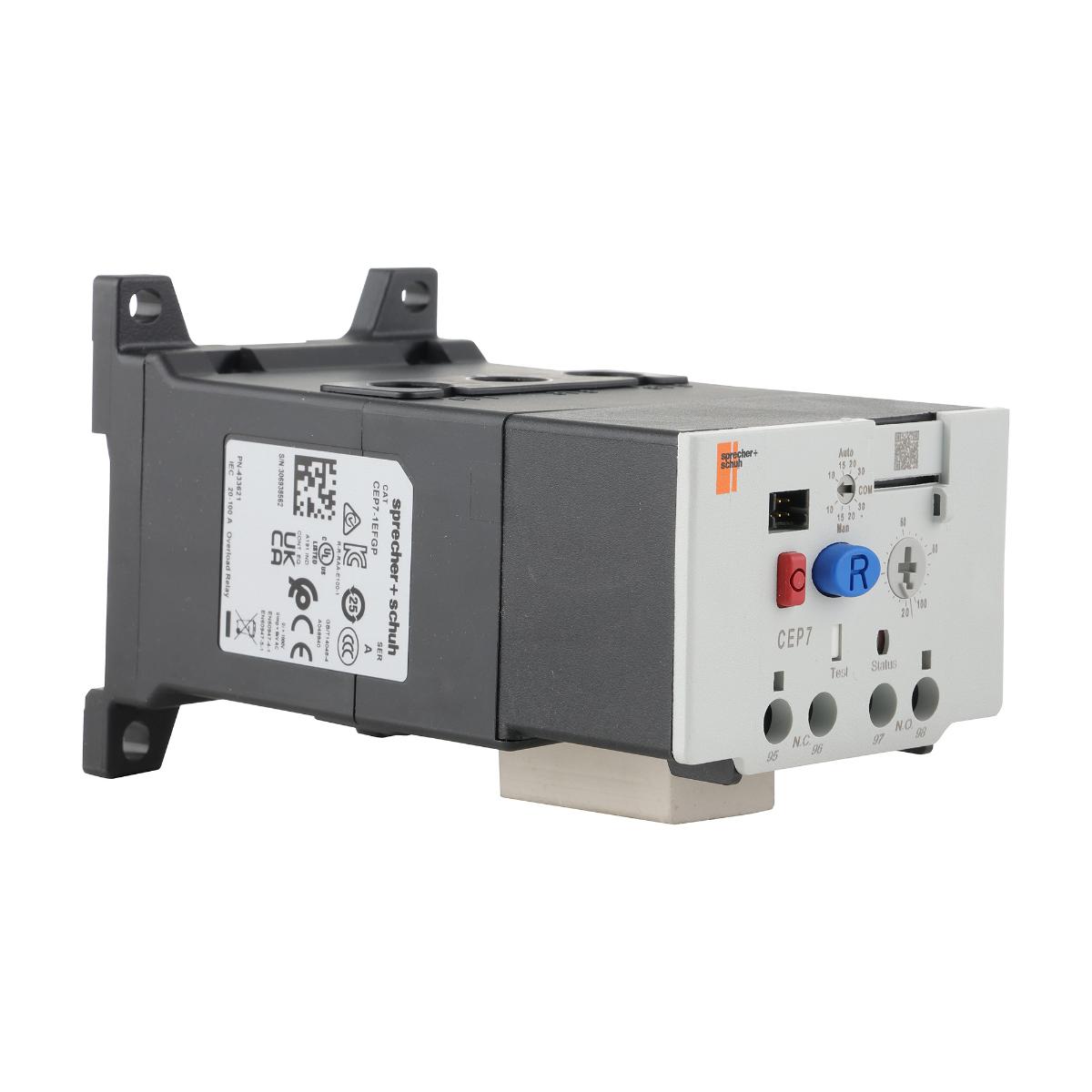

NHP CEP71EFGP S+S CEP71 Overload Electronic Advanced 20 to 100A Pass Thru
Code: NHPCEP71EFGP
Unit of measure:
EACH
Description
NHP CEP71EFGP S+S CEP71 Overload Electronic Advanced 20 to 100A Pass Thru
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Type of electrical connection of main circuit | Through-feed current converter |
| Voltage type for actuating | Self powered |
| Max. rated operation voltage Ue | 1000V |
| Depth | 127.8mm |
| Brand Name | NHP |
| Release class | Adjustable |
| Number of auxiliary contacts as normally open contact | 1 |
| Reset function automatic | Yes |
| Mounting method | Separate positioning |
| Supplier Code | CEP71EFGP |
| ETIM Class | Electronic overload relay |
| Height | 78.3mm |
| Reset function push-button | Yes |
| Width | 71.6mm |
| Number of auxiliary contacts as normally closed contact | 1 |
| Adjustable current range | 20-100 A |
