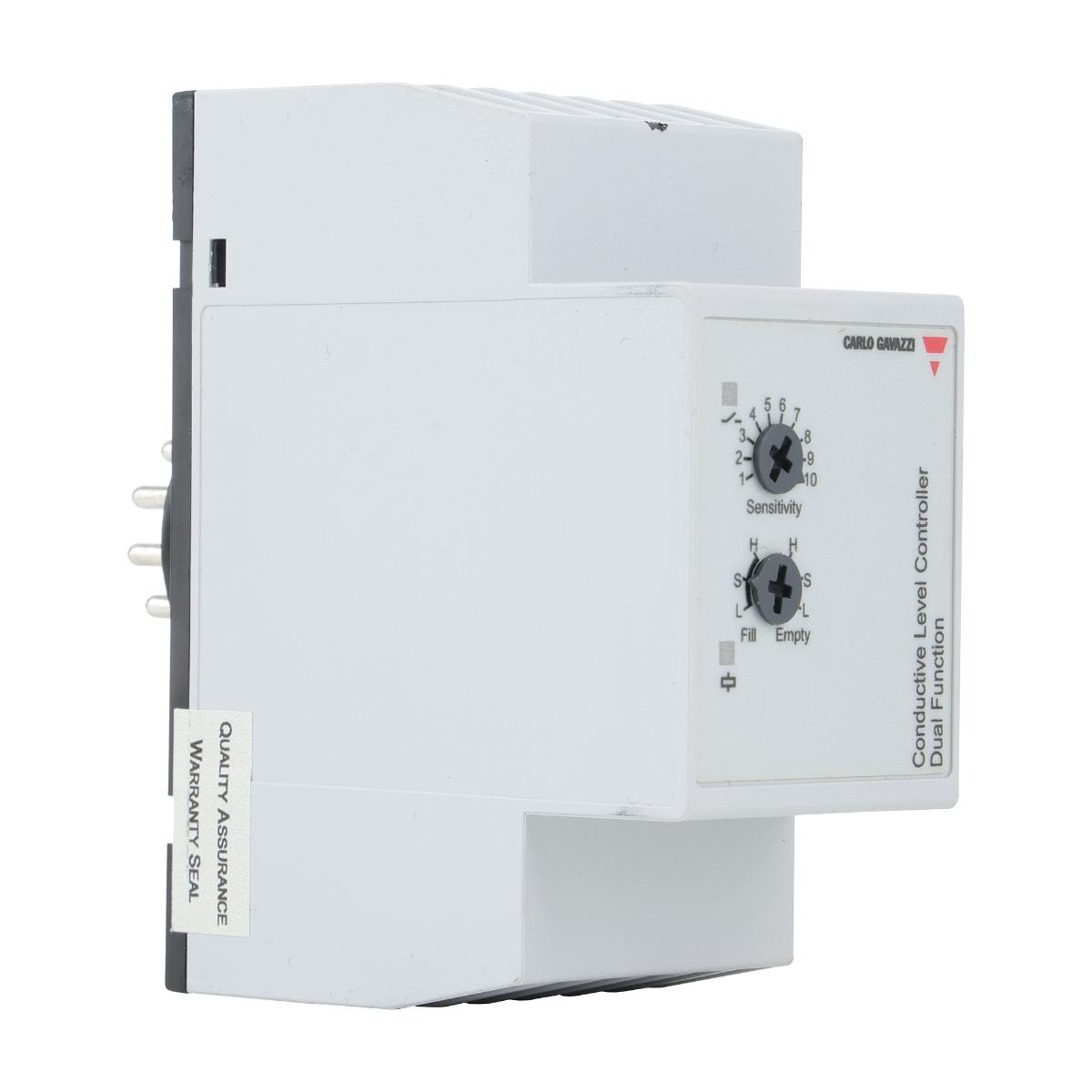

NHP CLP2EA1C230 Carlo Gavazzi Level Sensor Level Controller 230V AC 2 Points Changeover Relay Output DIN
Code: NHPCLP2EA1C230
Unit of measure:
EACH
Description
NHP CLP2EA1C230 Carlo Gavazzi Level Sensor Level Controller 230V AC 2 Points Changeover Relay Output DIN
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Ambient temperature during operating | -20-50°C |
| Type of electric connection | Plug-in connection |
| Number of contacts as change-over contact | 2 |
| Voltage type for actuating | AC |
| Number of contacts as normally closed contact | 0 |
| Material contact | Silver cadmium-oxide |
| Depth | 60.2mm |
| Weight | 0.2kg |
| Rated control supply voltage Us at AC 60HZ | 195-265V |
| Rated control supply voltage Us at AC 50HZ | 195-265V |
| Brand Name | NHP |
| Suitable for DIN rail mounting | No |
| IP Rating | IP20 |
| Rated control supply voltage Us at DC | 0-0V |
| Number of contacts as normally open contact | 0 |
| Supplier Code | CLP2EA1C230 |
| ETIM Class | (Fill) level monitoring relay |
| Height | 81mm |
| Suitable for plug-in socket mounting | Yes |
| Width | 35.5mm |
