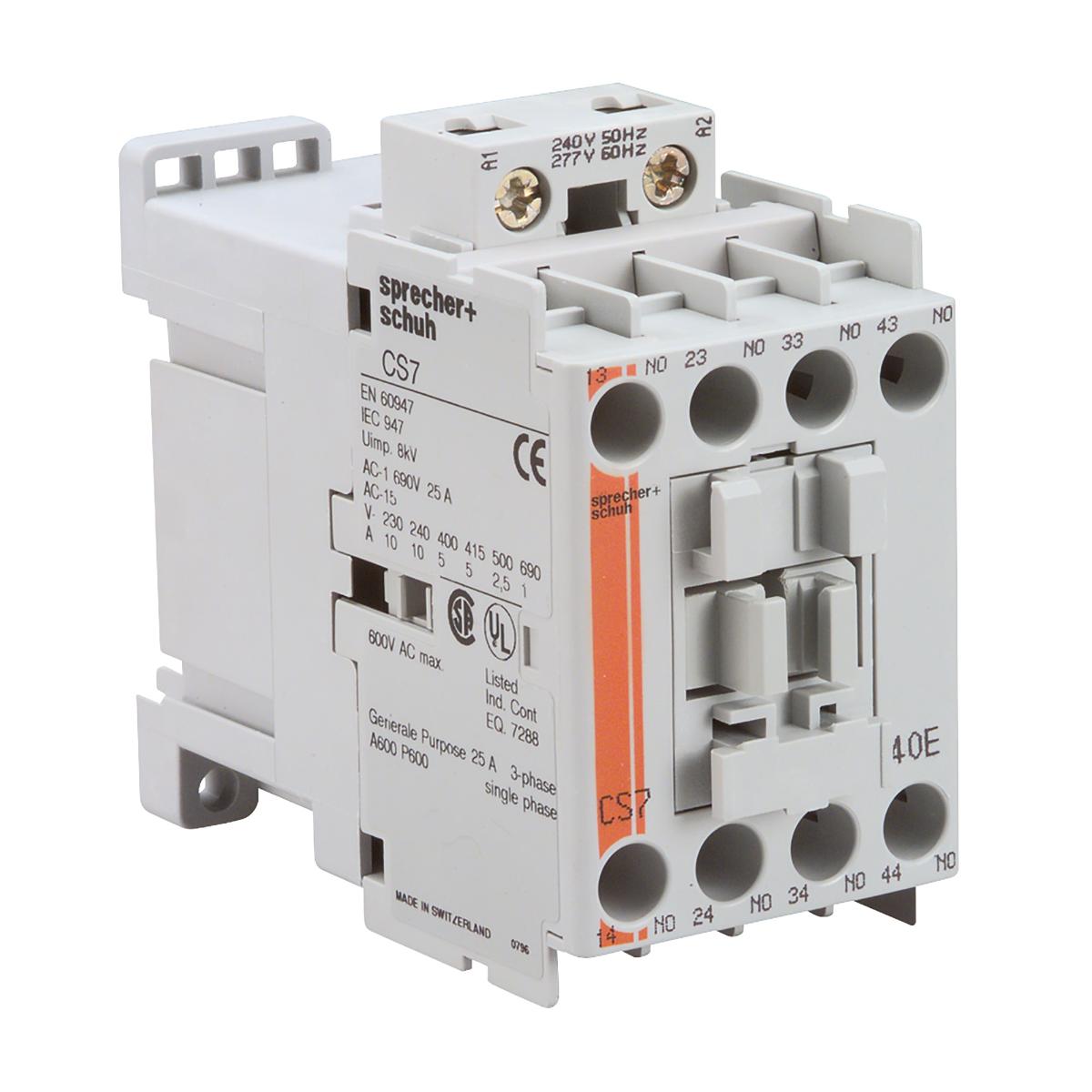

NHP CS740E110VAC S+S CS7 Control Relay 110VAC Coil 4NO Contact
Code: NHPCS740E110VAC
Unit of measure:
EACH
Description
NHP CS740E110VAC S+S CS7 Control Relay 110VAC Coil 4NO Contact
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mount | Din Rail |
| Voltage type for actuating | AC |
| Depth | 86.5mm |
| Current Type | AC/DC |
| Power consumption - AC coil hold-in | 9.5VA |
| Power consumption - AC coil pickup | 75VA |
| Number of auxiliary contacts as normally open contact | 4 |
| Voltage | 600 V |
| Supplier Code | CS740E110VAC |
| Height | 81mm |
| Width | 45mm |
| Number of auxiliary contacts as normally closed contact | 0 |
| Control supply voltage Us at AC 50HZ | 110V |
| Control supply voltage Us at AC 60HZ | 120V |
| Coil Current Type | AC |
| Range | C7 Series |
| Max. rated operation voltage Ue AC | 690V |
| Frequency Rating | 50/60 Hz |
| Weight | 0.39kg |
| Brand Name | NHP |
| Item Name | Control Relay |
| EAN/UPC | 9321807147035 |
| Type | Standard |
| Contact Configuration | 4 NO |
| Mounting method | DIN-rail/screw |
| Coil Voltage | 110 V |
| ETIM Class | Contactor relay |
| Current | 25A |
