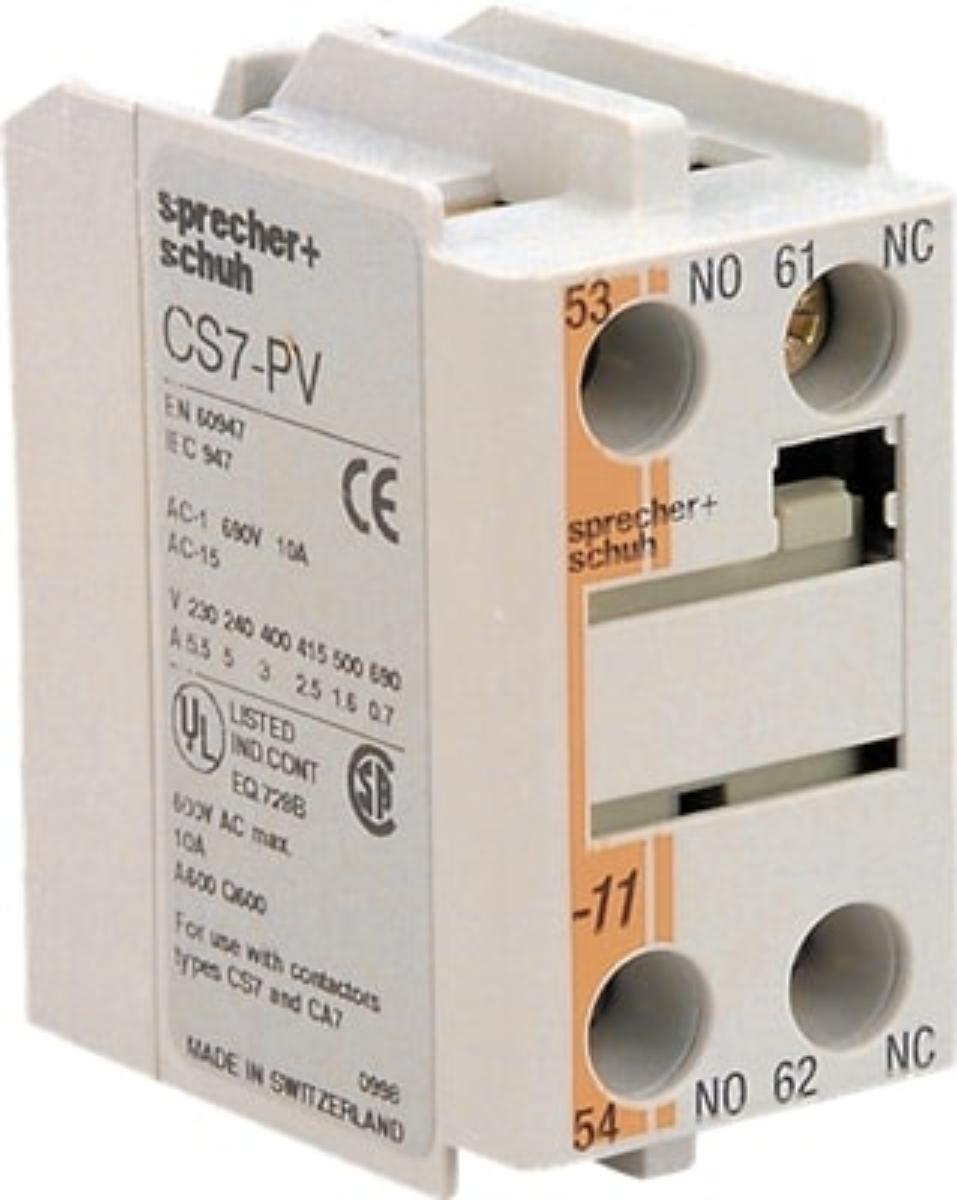

NHP CS7PV11 CA7 Series Auxiliary Contact Block, Top Mount, 1N/O 1 N/C, Suit CA7 and CS7
Code: NHPCS7PV11
Unit of measure:
EACH
Description
AUXILIARY CONTACT 1 N/O 1 N/C TOP MOUNT
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mount | Top Contactor |
| Standard | CE, CSA, UL Listed |
| Material | Metal and Plastic |
| Range | CA7 Series |
| Depth | 50mm |
| Weight | 0.04kg |
| Colour | Grey |
| Brand Name | NHP |
| Item Name | Auxiliary Contact |
| Box Quantity | 1 |
| Contact Configuration | 1 NO + 1 NC |
| IP Rating | IP20 |
| Connection Type | Screw Terminal |
| Frequency | 50 - 60Hz |
| Height | 44mm |
| Current | 6A |
| Width | 30mm |
