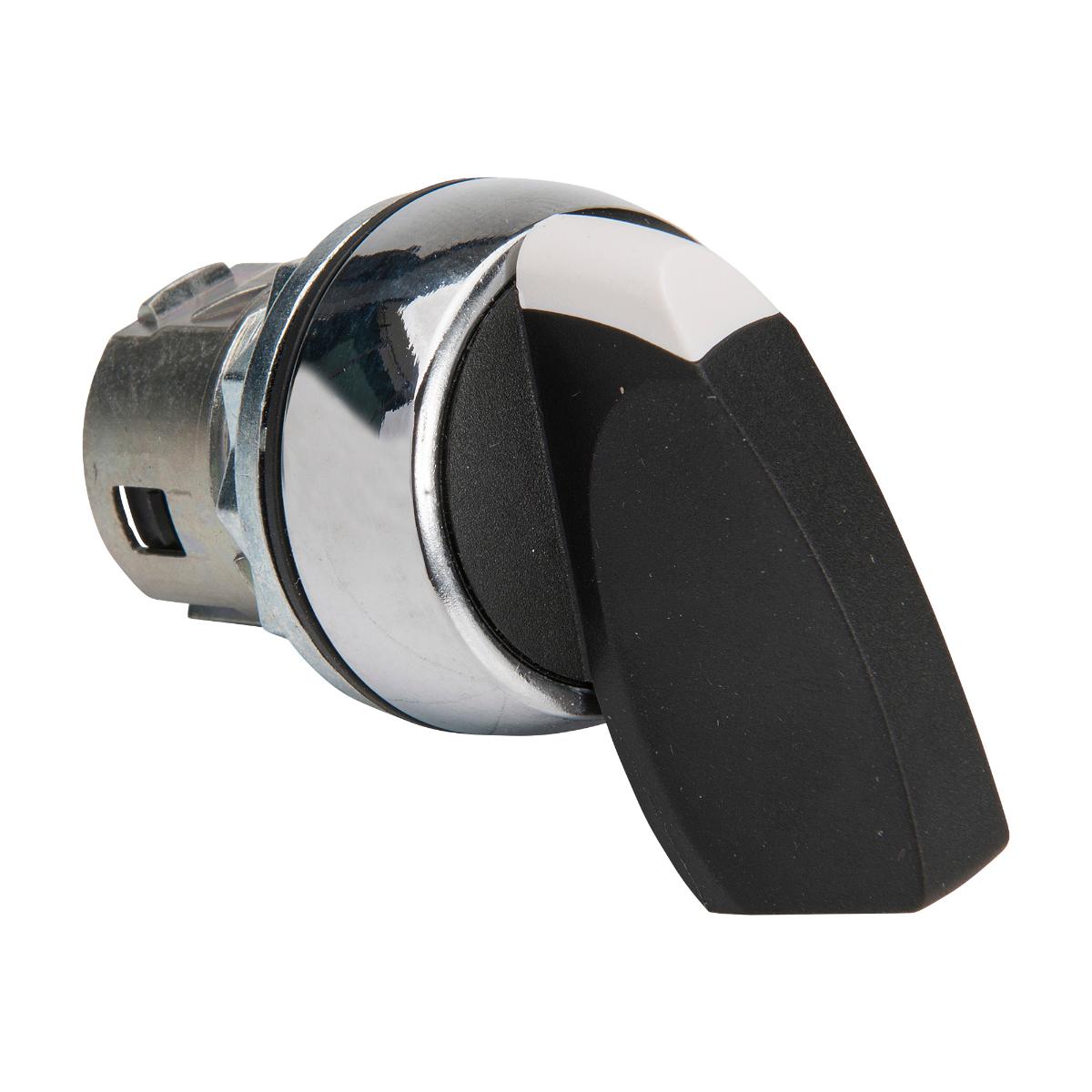

NHP D7MHM32 Sprecher and Schuh D7 Selector Switch 22.5 mm Head Only Metal Long BLK Knob 3 POS Maintained Switch
Code: NHPD7MHM32
Unit of measure:
EACH
Description
NHP D7MHM32 Sprecher and Schuh D7 Selector Switch 22.5 mm Head Only Metal Long BLK Knob 3 POS Maintained Switch
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 100g |
| Max. vibration frequency - operational | 2000Hz |
| Spring-return | No |
| Colour front ring | Other |
| Mechanical life (service cycles) | 300000 cycles |
| Max. vibration acceleration | 10m/s² |
| Colour control element | Black |
| Type of control element | Long turning handle |
| Switching function latching | No |
| Suitable for illumination | No |
| Brand Name | NHP |
| Hole diameter | 22.5mm |
| Width opening | 38.8 mm |
| Supplier Code | D7MHM32 |
| ETIM Class | Front element for selector switch |
| Height opening | 28 mm |
| Degree of protection (NEMA) | Other |
| Material front ring | Metal |
| Number of switch positions | 3 |
| Operating temperature | -25-70°C |
