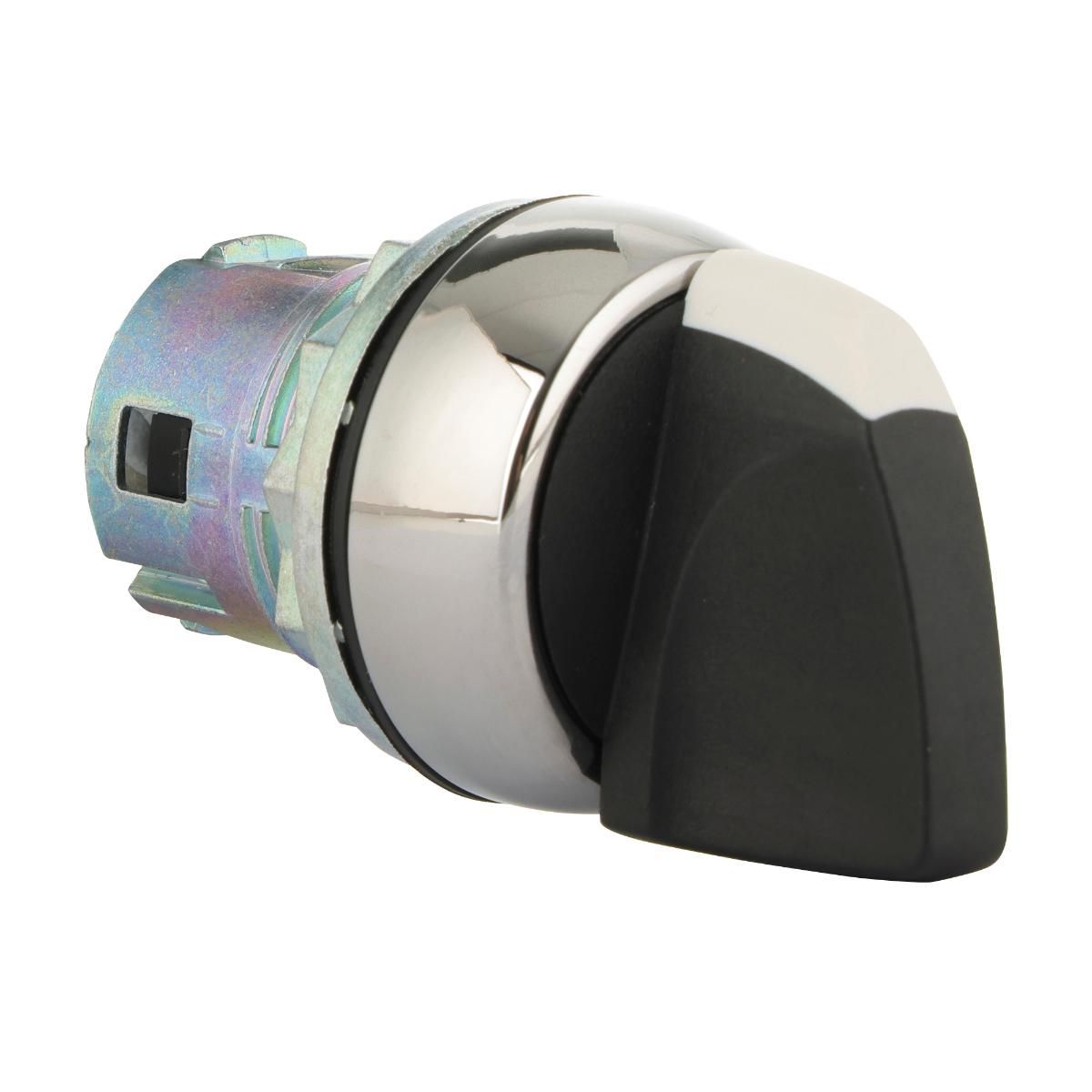

NHP D7MSB32 Sprecher and Schuh D7 Selector Switch 22.5mm Head Only Metal STD BLK Knob 3 POS SR from Left Right
Code: NHPD7MSB32
Unit of measure:
EACH
Description
NHP D7MSB32 Sprecher and Schuh D7 Selector Switch 22.5mm Head Only Metal STD BLK Knob 3 POS SR from Left Right
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 100g |
| Colour front ring | Other |
| Max. vibration acceleration | 10m/s² |
| Switching function latching | No |
| Suitable for illumination | No |
| Colour | Black |
| Series/Model | D7M Series |
| Supplier Code | D7MSB32 |
| Degree of Protection | IP66 |
| Height opening | 28 mm |
| Material front ring | Metal |
| Number of switch positions | 3 |
| Max. vibration frequency - operational | 2000Hz |
| Spring-return | Yes |
| Mechanical life (service cycles) | 300000 cycles |
| Colour control element | Black |
| Type of control element | Short thumb-grip |
| Material | Metal |
| Brand Name | NHP |
| Hole diameter | 22.5mm |
| Item Name | Selector Switch |
| Type | Non-Illuminated |
| Width opening | 29.8 mm |
| ETIM Class | Front element for selector switch |
| Degree of protection (NEMA) | Other |
| Operating temperature | -25-70°C |
