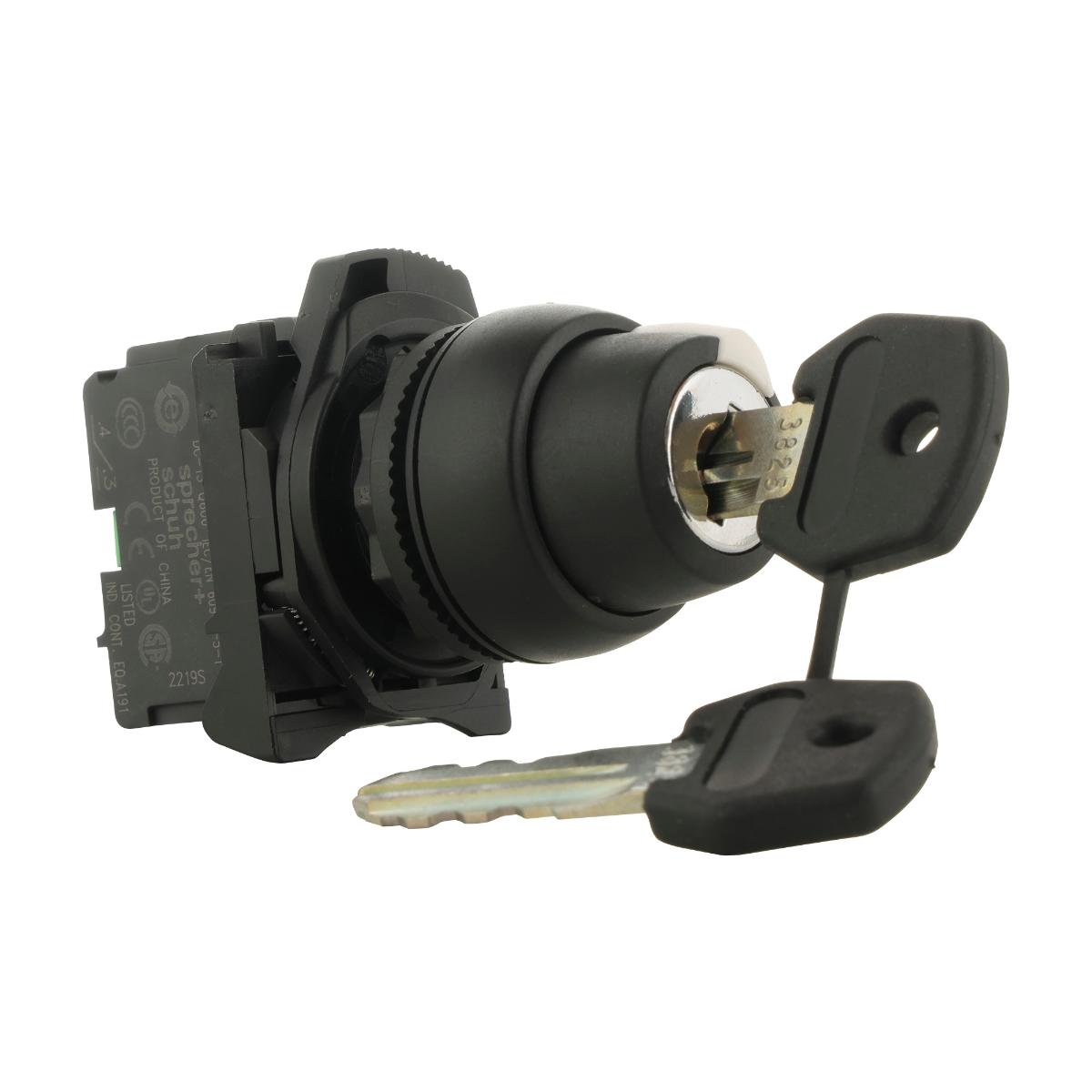

NHP D7PKM21PX10 Sprecher and Schuh D7 Key Selector Switch 22.5 mm 2 Pos Plastic Maint Key Rtn Left Code 3825 1 N.O.
Code: NHPD7PKM21PX10
Unit of measure:
EACH
Description
NHP D7PKM21PX10 Sprecher and Schuh D7 Key Selector Switch 22.5 mm 2 Pos Plastic Maint Key Rtn Left Code 3825 1 N.O.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 100g |
| Colour front ring | Other |
| Max. vibration acceleration | 10m/s² |
| Switching function latching | No |
| Standard | NEMA ICS-5, UL 508, EN 60947-1, EN 60947-5-1, EN 60947-5-5, EN 418, UL, UR, CSA, CCC, CE, RoHS |
| Suitable for illumination | No |
| Enclosure | IP65/66 |
| Colour | Black Operator, White Operator Insert |
| Voltage | 415 VAC |
| Supplier Code | D7PKM21PX10 |
| UNSPCS | 39122224 |
| Height opening | 47.1 mm |
| Material front ring | Plastic |
| Number of switch positions | 2 |
| Temperature Rating | -25 to 70 deg C |
| Max. vibration frequency - operational | 2000Hz |
| Spring-return | No |
| With front ring | Yes |
| Mechanical life (service cycles) | 300000 cycles |
| Colour control element | Black |
| Type of control element | Key |
| Material | Bezel : Glass Filled Nylon, Contact : Silver Nickel, Latches : Glass Filled Nylon, Operator : TP (Thermoplastic, Spring : Zinc-Plated Stainless Steel, Terminal : Brass |
| Mounting Type | 22.5 mm Mounting Hole |
| Operating Cycles | 300000 Cycles |
| Brand Name | NHP |
| Hole diameter | 22.5mm |
| Item Name | Key Selector Switch |
| Contact Configuration | 1 NO |
| Width opening | 29.6 mm |
| ETIM Class | Front element for selector switch |
| Degree of protection (NEMA) | Other |
| Current | 2.2A |
| Operating temperature | -25-70°C |
