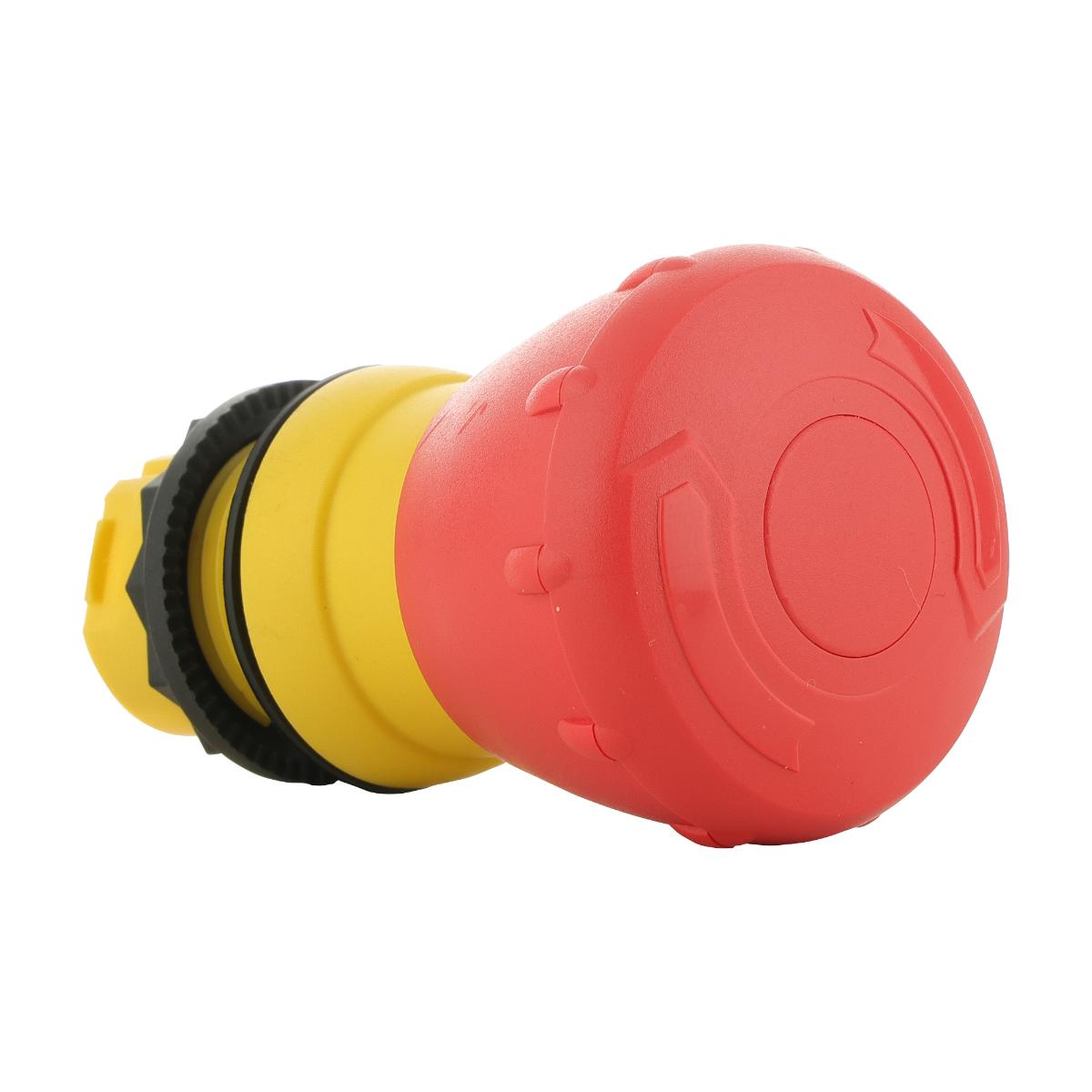

NHP D7PMT44 Sprecher and Schuh D7 E Stop 22.5mm Head Only Plastic 2 POS 40mm Operator MOM Twist to Release Red
Code: NHPD7PMT44
Unit of measure:
EACH
Description
NHP D7PMT44 Sprecher and Schuh D7 E Stop 22.5mm Head Only Plastic 2 POS 40mm Operator MOM Twist to Release Red
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 100g |
| Colour front ring | Other |
| Max. vibration acceleration | 10m/s² |
| Switching function latching | Yes |
| Standard | UL 508, EN 60947-1, EN 60947-5-1, EN 60947-5-5, EN 418, RoHS |
| Electrical life at Un - In (service cycles) | 500000 cycles |
| Suitable for illumination | No |
| Unlocking method | Turn-release |
| Colour | Red |
| NEMA Rating | NEMA ICS-5 |
| Diameter cap | 40mm |
| Suitable for emergency stop | Yes |
| Supplier Code | D7PMT44 |
| UNSPCS | 39122216 |
| Degree of Protection | IP66/IP65 |
| Head Type | Mushroom |
| Material front ring | Plastic |
| Diameter | 22.5 mm |
| Operating Temperature | -25-70°C |
| Max. vibration frequency - operational | 2000Hz |
| Spring-return | No |
| Operator Type | Non-Illuminated |
| Mechanical life (service cycles) | 300000 cycles |
| Button Type | 40 mm Knob |
| Brand Name | NHP |
| Hole diameter | 22.5mm |
| Item Name | Emergency-Stop Push Button |
| Bezel Material | Glass-Filled Nylon |
| IP Rating | IP65/IP66/IP69K |
| ETIM Class | Front element for mushroom push-button |
| Operator Action | Twist to Release |
| Degree of protection (NEMA) | Other |
| Colour button | Red |
