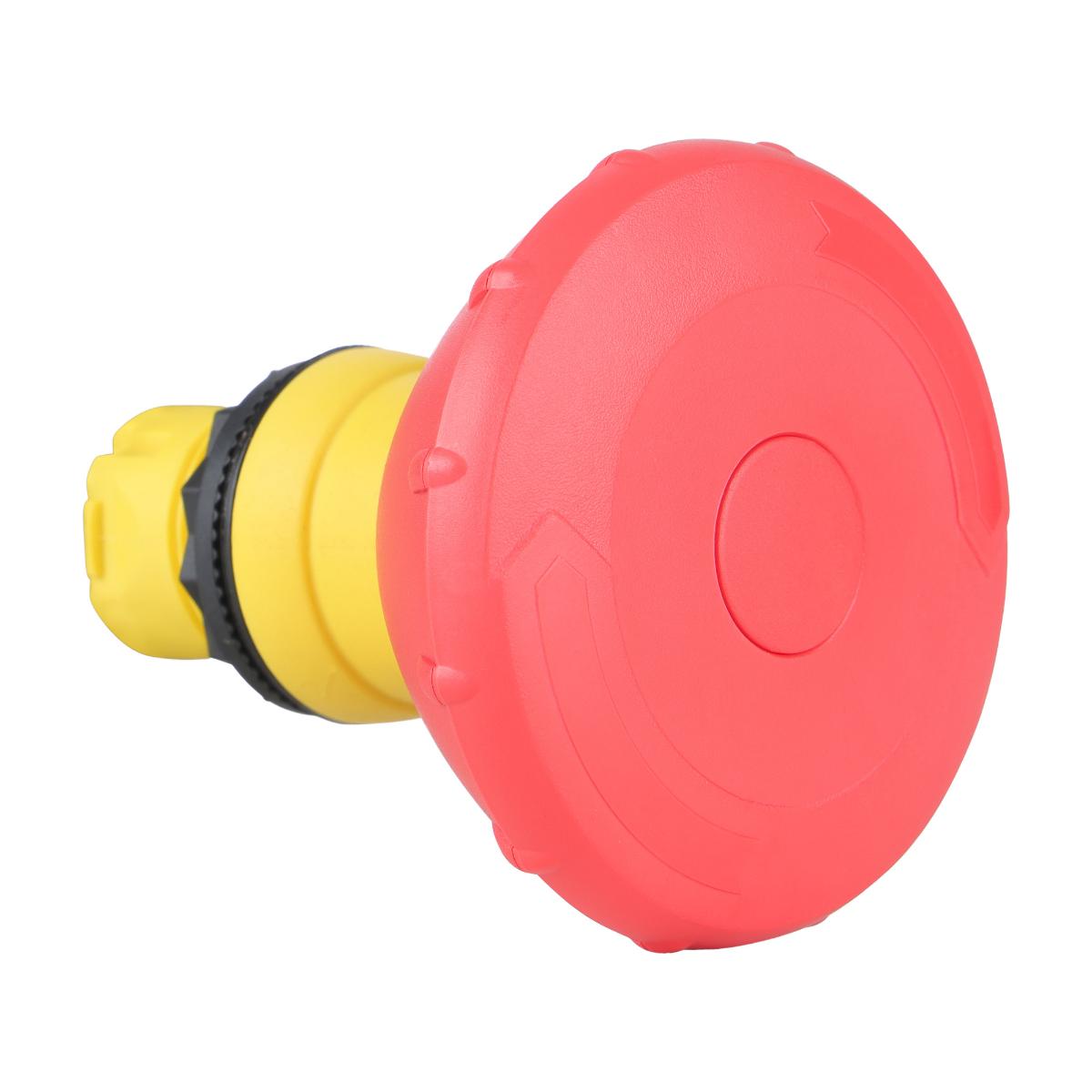

NHP D7PMT64 Sprecher and Schuh D7 E Stop 22.5mm Head Only Plastic 2 POS 60mm Operator MOM Twist to Release Red
Code: NHPD7PMT64
Unit of measure:
EACH
Description
NHP D7PMT64 Sprecher and Schuh D7 E Stop 22.5mm Head Only Plastic 2 POS 60mm Operator MOM Twist to Release Red
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 100g |
| Max. vibration frequency - operational | 2000Hz |
| Spring-return | No |
| Colour front ring | Other |
| Mechanical life (service cycles) | 300000 cycles |
| Max. vibration acceleration | 10m/s² |
| Switching function latching | Yes |
| Electrical life at Un - In (service cycles) | 500000 cycles |
| Suitable for illumination | No |
| Unlocking method | Turn-release |
| Brand Name | NHP |
| Hole diameter | 22.5mm |
| Diameter cap | 60mm |
| Suitable for emergency stop | Yes |
| IP Rating | IP65/IP66/IP69K |
| Supplier Code | D7PMT64 |
| ETIM Class | Front element for mushroom push-button |
| Degree of protection (NEMA) | Other |
| Material front ring | Plastic |
| Colour button | Red |
| Operating temperature | -25-70°C |
