NHP DTCB10202C DIN-T MCB, Miniature Circuit Breaker, 2 Pole, 2A, C Curve, 10kA Breaking Capacity, DIN Rail Mounted, 415V, 76mm x 36mm x 86mm, White
Code: NHPDTCB10202C
Unit of measure:
EACH
Description
NHP NHPDTCB10202C MCB DIN-T10 10KA 2P 2A C Curve
Features:
• High speed and rapid arc quenching technology ensuring the highest level of protection is provided
• DIN rail mounting
• Free tripping mechanism even if toggle is locked ON or OFF
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Standard | IEC 60898, IEC 60077-16-3, IEC 60947-2, IEC 60068-2, DINÂ 40046, ULÂ 94Â V-2, AS/NZS 3111:2009, NSWÂ 17481 Approved |
| Enclosure | IP20 Outside/IP40 Inside |
| Box Qty | 1 Pack |
| Voltage | 415V |
| UNSPCS | 39121603 |

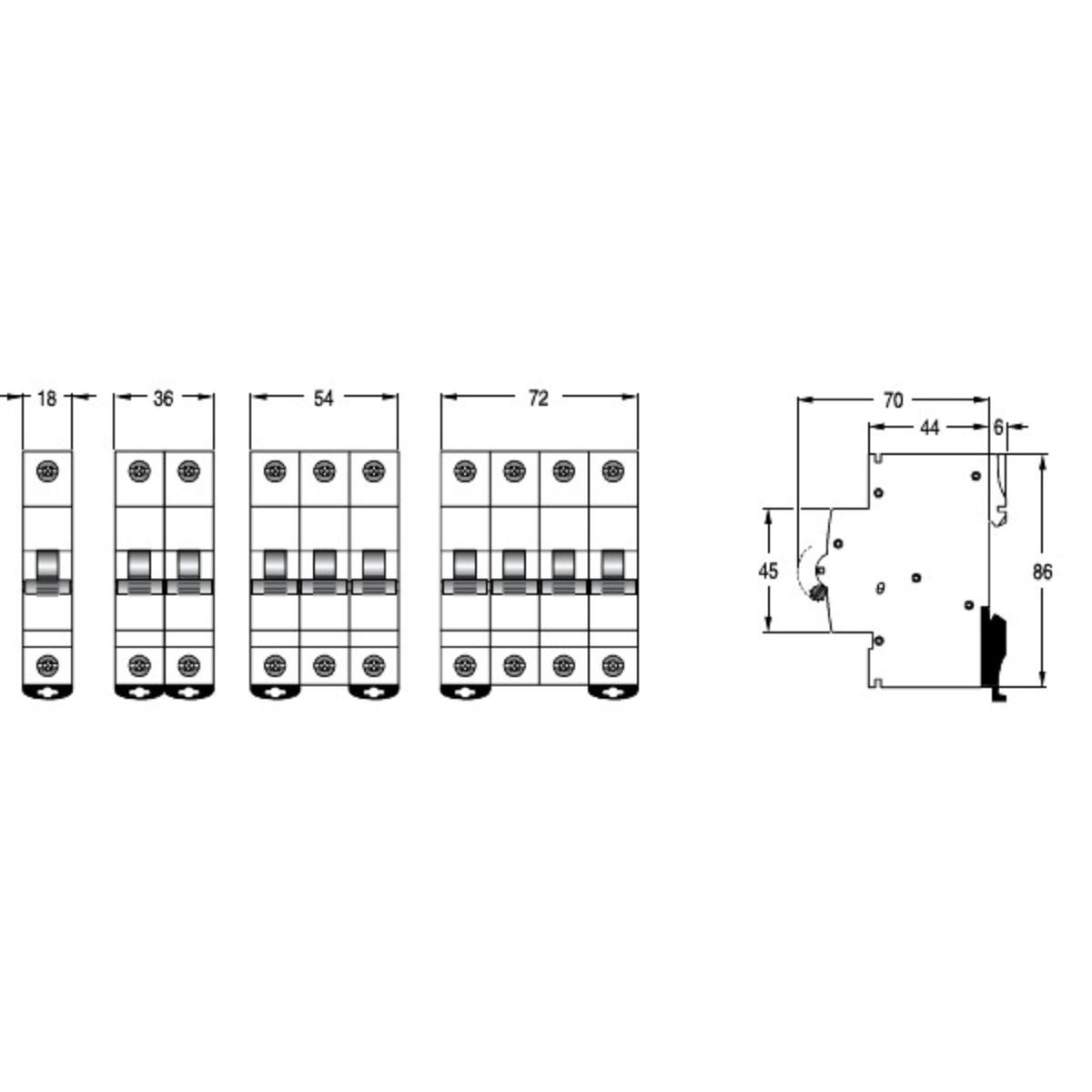

| Height | 86mm |
| Width | 36mm |
| Breaking Capacity | 10kA |
| Curve Characterstic | C |
| Temperature Rating | -25 to 55 deg C |
| Warranty | 1 Year |
| Dielectric Strength | 2.5 kV |
| Connection | 35 sq-mm Rigid Wire Top, 25 sq-mm Flexible Cable |
| Curve | C |
| Pole Configuration | 2 |
| Mounting Type | Din 35 |
| Range | DIN-T MCB |
| Frequency Rating | 50/60 Hz |
| Weight | 0.24kg |
| Brand Name | NHP Electrical |
| Mounting | DIN rail |
| Item Name | Miniature Circuit Breaker |
| EAN/UPC | 5413656758402 |
| UOM | Metric |
| Interrupt Rating | 10 kA |
| Length | 76mm |
| Number of Poles | 2 |
| Rated Current | 2A |
| Environmental Conditions | 95% Relative Humidity, -55 to 55 deg C Storage Temperature, 20000 Cycles of Mechanical, 10000 Cycle of Electrical Durability |
| Current | 2A |
| Pole | 2 |
