MCB DIN-T6 2P 6A 6KA C CURVE 2 MODULE | Circuit Breakers | Electrical Distribution | All Categories

NHP DTCB6206C Circuit Breaker MCB DIN-T 2 Pole 6 Amp 415Volt 6kA C Curve, Din Rail Mount

Code: NHPDTCB6206C

Brand: NHP

Unit of measure: EACH

Description

NHP DTCB6206C Circuit Breaker MCB DIN-T 2 Pole 6 Amp 415Volt 6kA C Curve, Din Rail Mount

Circuit Breaker MCB DIN-T 2 Pole 6 Amp 415Volt 6kA C Curve, Din Rail Mount,

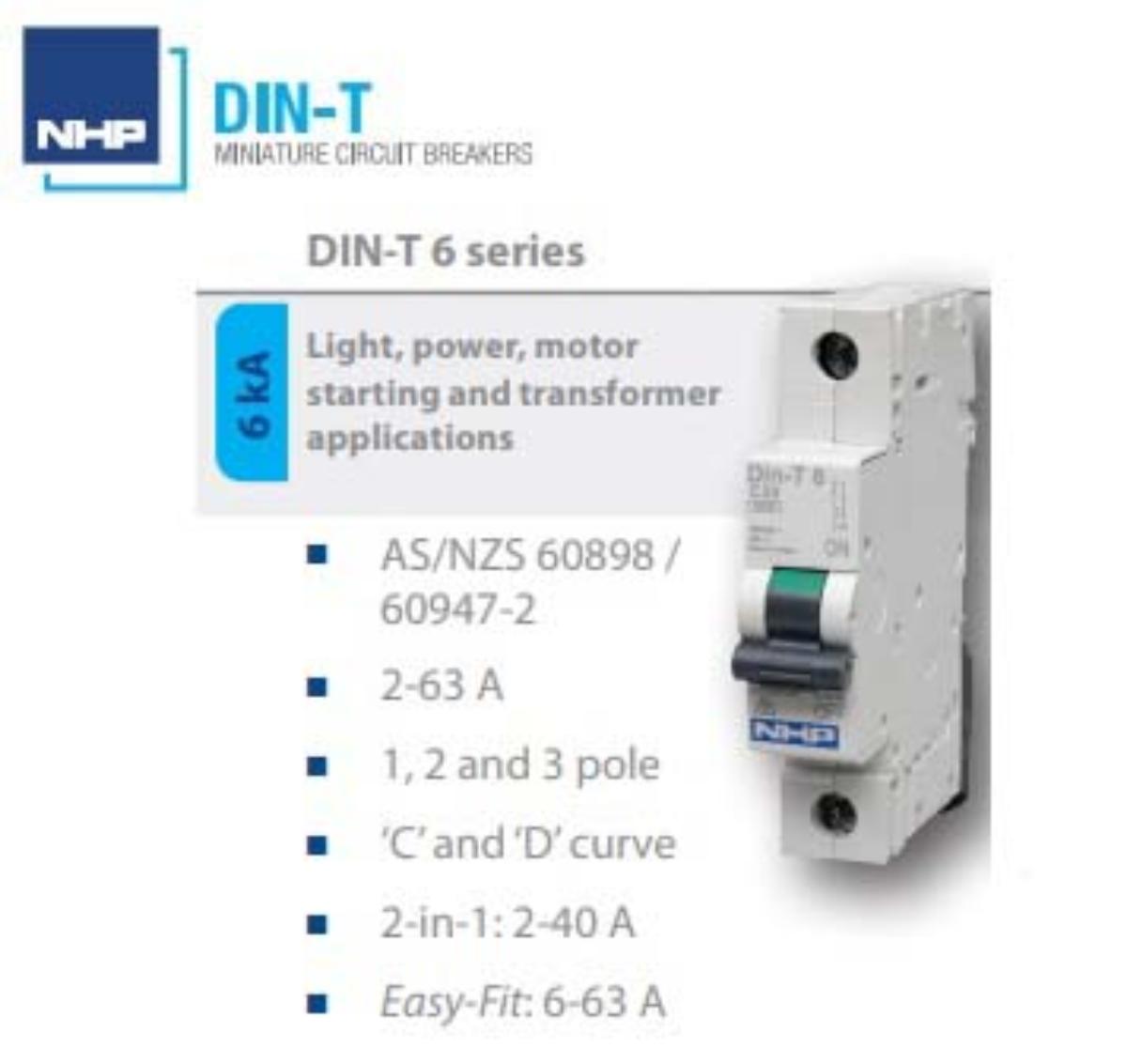

Features:
• DIN-T 6 series
• Light, power, motor starting and transformer applications
• AS/NZS 60898 / 60947-2
• 2-63 Amp
• 1, 2 and 3 pole

Looking for something specific? Search with keywords to help filter your required specifications.

Category	Circuit Breakers
Standard	IEC 60898, IEC 60947-2, ULÂ 94Â V-2, DINÂ 40046, IEC 60068-2, IEC 60077-16-3, AS/NZS 3111:2009, NSWÂ 17481 Approved
Enclosure	IP20 Outside/IP40 Inside
Voltage	415Volt
UNSPCS	39121603
Height	86 mm
Width	36 mm
Breaking Capacity	6kA
Curve Characterstic	C
Temperature Rating	-25 to 55 deg C
Dielectric Strength	2.5 kV
Connection	35 sq-mm Rigid Wire Top, 25 sq-mm Flexible Cable
Curve	C Curve
Pole Configuration	2 Pole
Mounting Type	Din 35
Range	DIN-T
Frequency Rating	50/60 Hz
Brand Name	NHP
Mounting	Din Rail Mount
Item Name	Miniature Circuit Breaker
EAN/UPC	5413656757665
Interrupt Rating	6 kA
Length	68 mm
Number of Poles	2
Rated Current	6 Amp
Environmental Conditions	95% Relative Humidity, -55 to 55 deg C Storage Temperature, 20000 Cycles of Mechanical, 10000 Cycle of Electrical Durability
Current	6A
Pole	2
