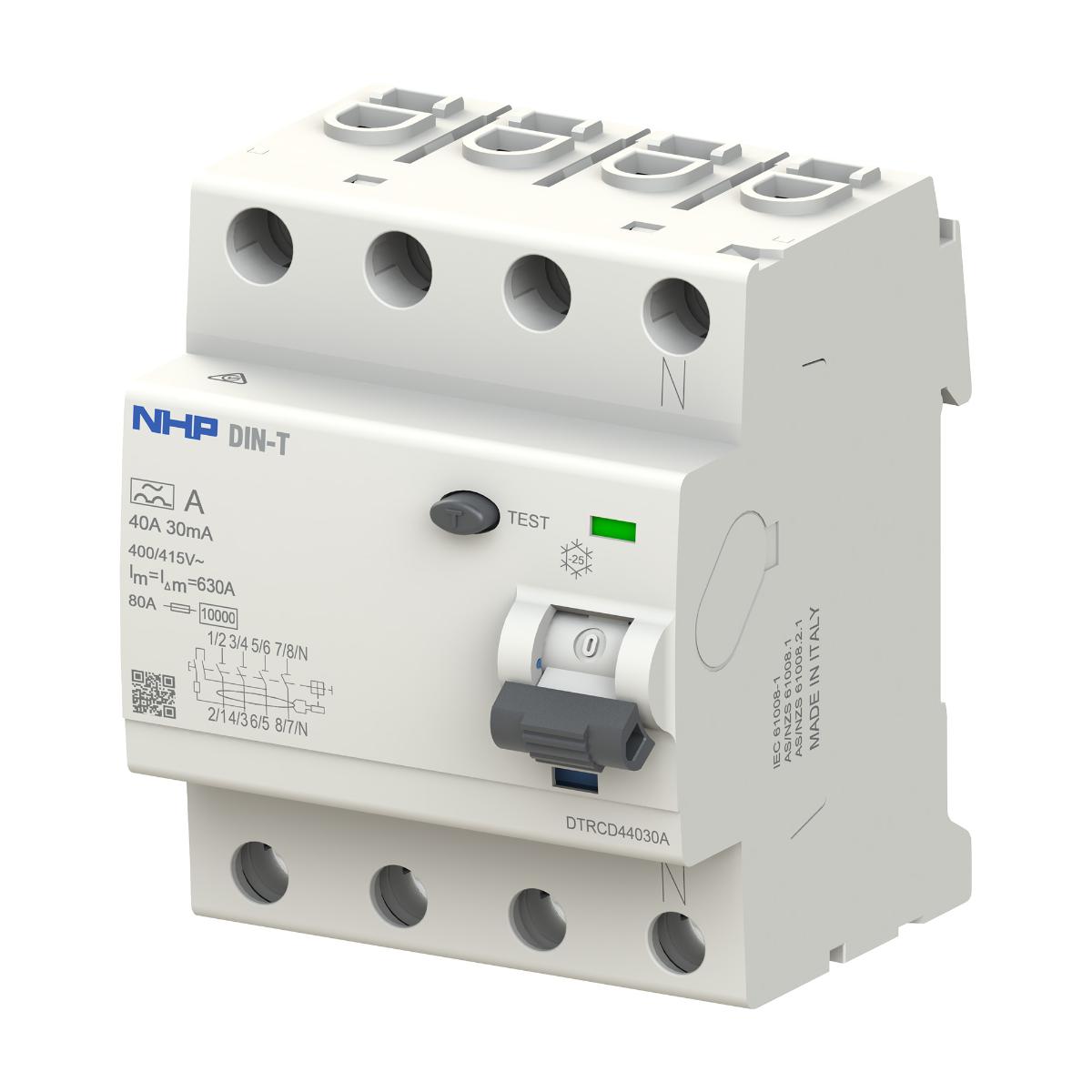

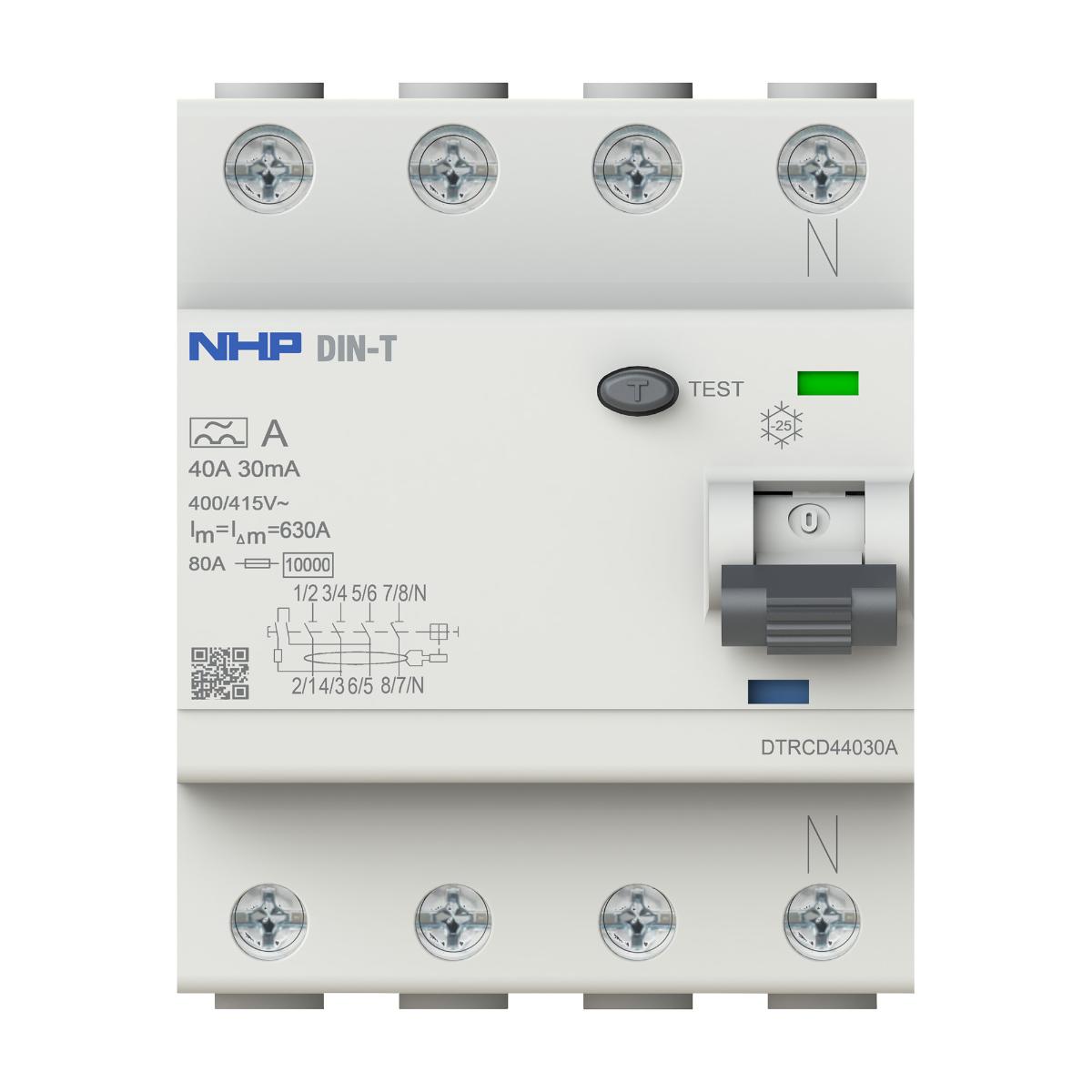

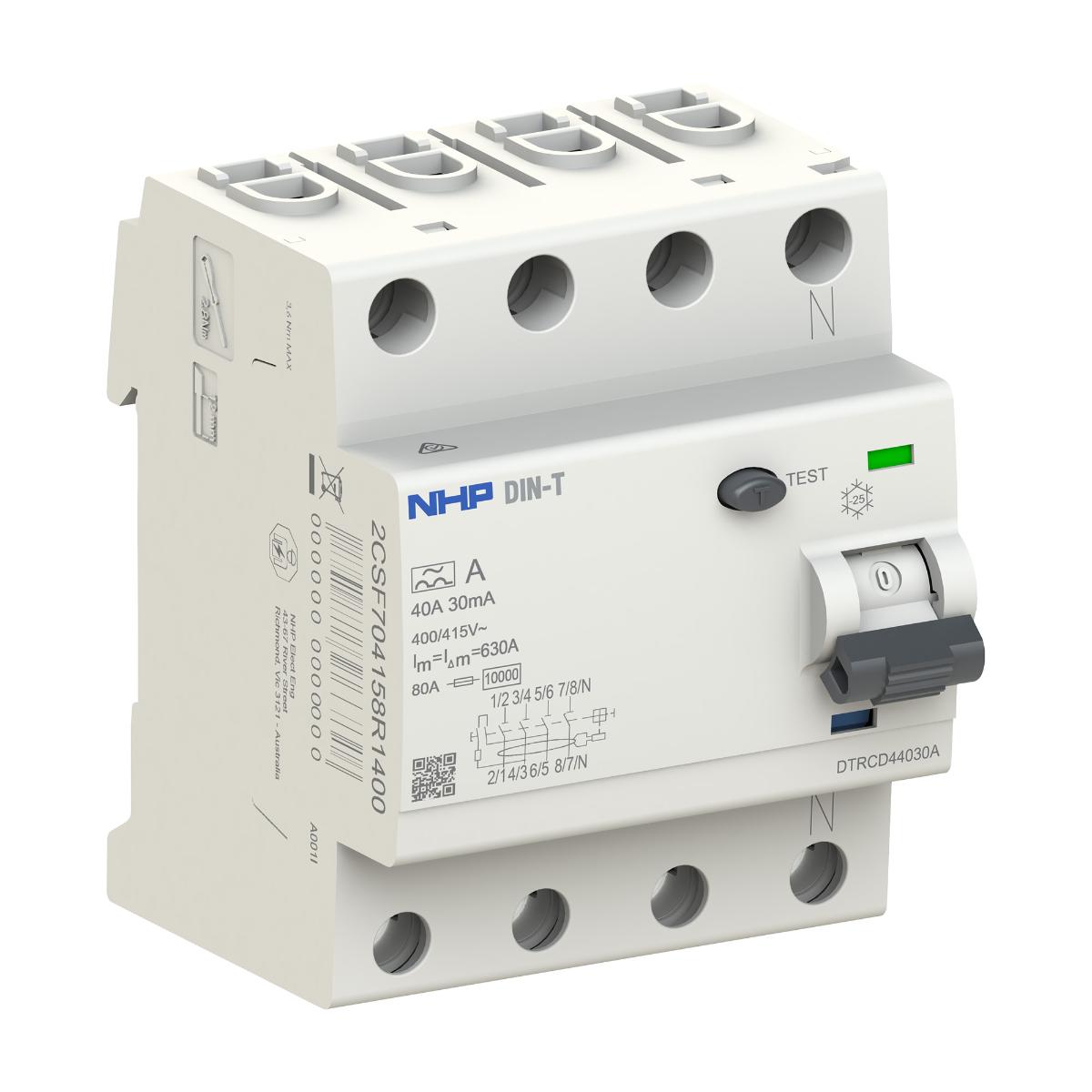

NHP DTRCD463100S DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 100mA Type S
Code: NHPDTRCD463100S
Unit of measure:
EACH
Description
NHP DTRCD463100S DIN-T Residual Current Device RCCB 3 Pole and Switched Neutral 63A 100mA Type S
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Electrical life at Un- In (service cycles) | 10000 |
| Voltage type | AC |
| Storage temperature | 70 Degree |
| Leakage current type | Other |
| Surge current capacity | 5kA |
| Depth | 75mm |
| Connectable conductor cross section multi-wired | 1-16mm2 |
| Rated current | 63A |
| Rated impulse withstand voltage Uimp | 4kV |
| Rated voltage | 415V |
| Width in number of modular spacings | 4 |
| Rated fault current | 10000A |
| Min. service voltage | 230V |
| Height | 85mm |
| Concurrently switching neutral conductor | 1 |
| Width | 70mm |
| Connectable conductor cross section solid-core | 1-25mm2 |
| Number of poles | 4 Pole |
| Rated insulation voltage Ui | 500V |
| Ambient temperature during operating | -25-70 Degree |
| Mechanical life (service cycles) | 20000 |
| Max. rated operation voltage Ue AC | 456V |
| Weight | 0.38mm |
| Brand Name | NHP |
| IP Rating | IP40 |
| Mounting method | DIN rail |
| Pollution degree | 2 |
| Frequency | 50/60 Hz |
| Operating temperature | 70 Degree |
| Rated leakage current | 100mA |
