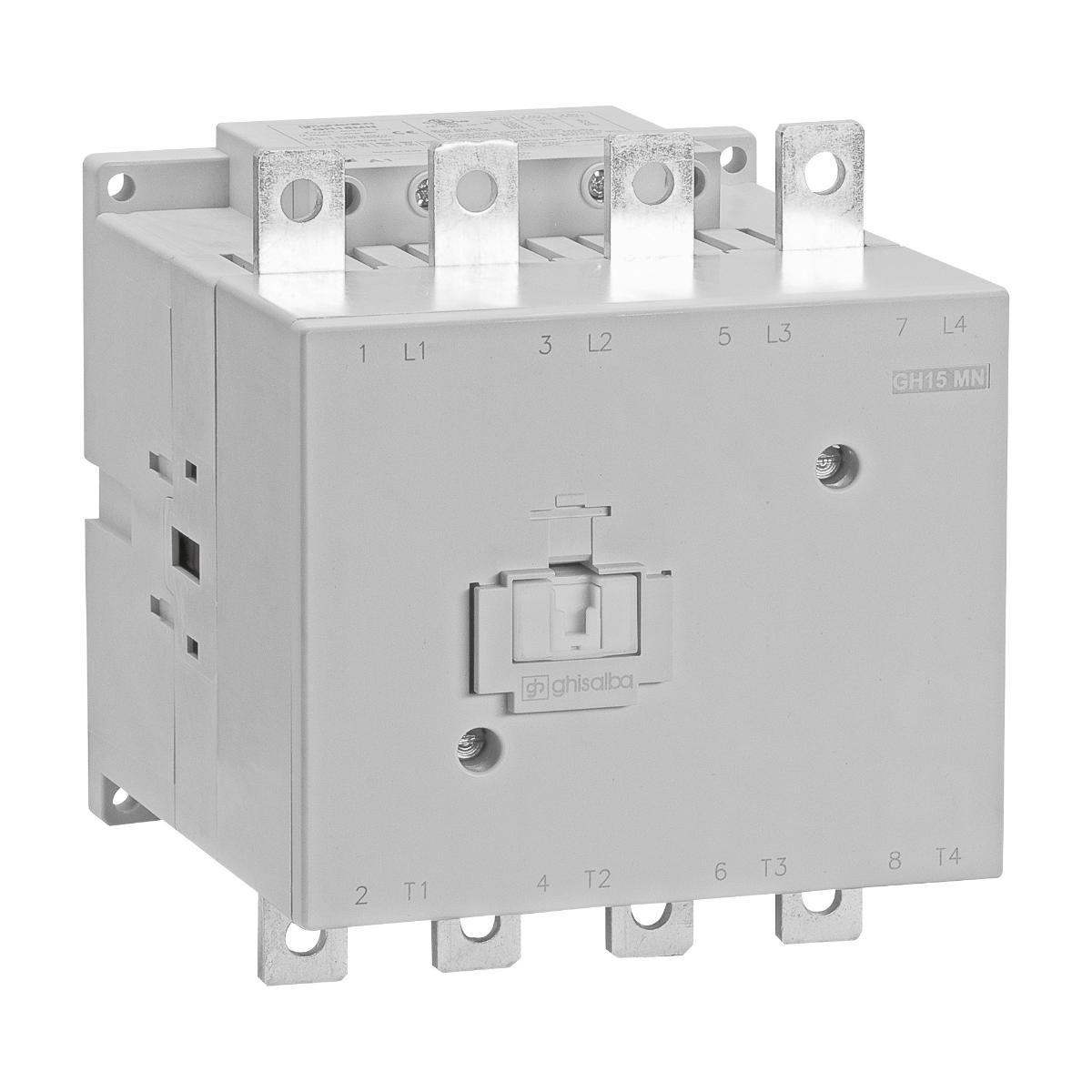

NHP GH15PN40240VAC Ghisalba Contactor 90kW 4Pole 240VAC and 220VDC Coil
Code: NHPGH15PN40240VAC
Unit of measure:
EACH
Description
NHP GH15PN40240VAC Ghisalba Contactor 90kW 4Pole 240VAC and 220VDC Coil
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Type of electrical connection of main circuit | Bolt connection |
| Rated operation current Ie at AC-3 - 1000 V | 70A |
| Voltage type for actuating | DC |
| Max. rated operation voltage Ue AC | 1000V |
| Number of normally closed contacts as main contact | 0 |
| Depth | 162mm |
| Weight | 4.7kg |
| Number of normally open contacts as main contact | 4 |
| Rated control supply voltage Us at AC 50HZ | 200-240V |
| Rated control supply voltage Us at AC 60HZ | 200-240V |
| Brand Name | NHP |
| IP Rating | IP00 |
| Number of auxiliary contacts as normally open contact | 0 |
| Control supply voltage Us at DC | 220V |
| Mounting method | Screw mounting |
| Supplier Code | GH15PN40240VAC |
| ETIM Class | Power contactor - AC switching |
| Height | 170mm |
| Rated operation power at AC-3 - 400V | 90kW |
| Rated operation current Ie at AC-1 - 400V | 300A |
| Rated operation current Ie at AC-3 - 400V | 175A |
| Width | 147mm |
| Number of auxiliary contacts as normally closed contact | 0 |
