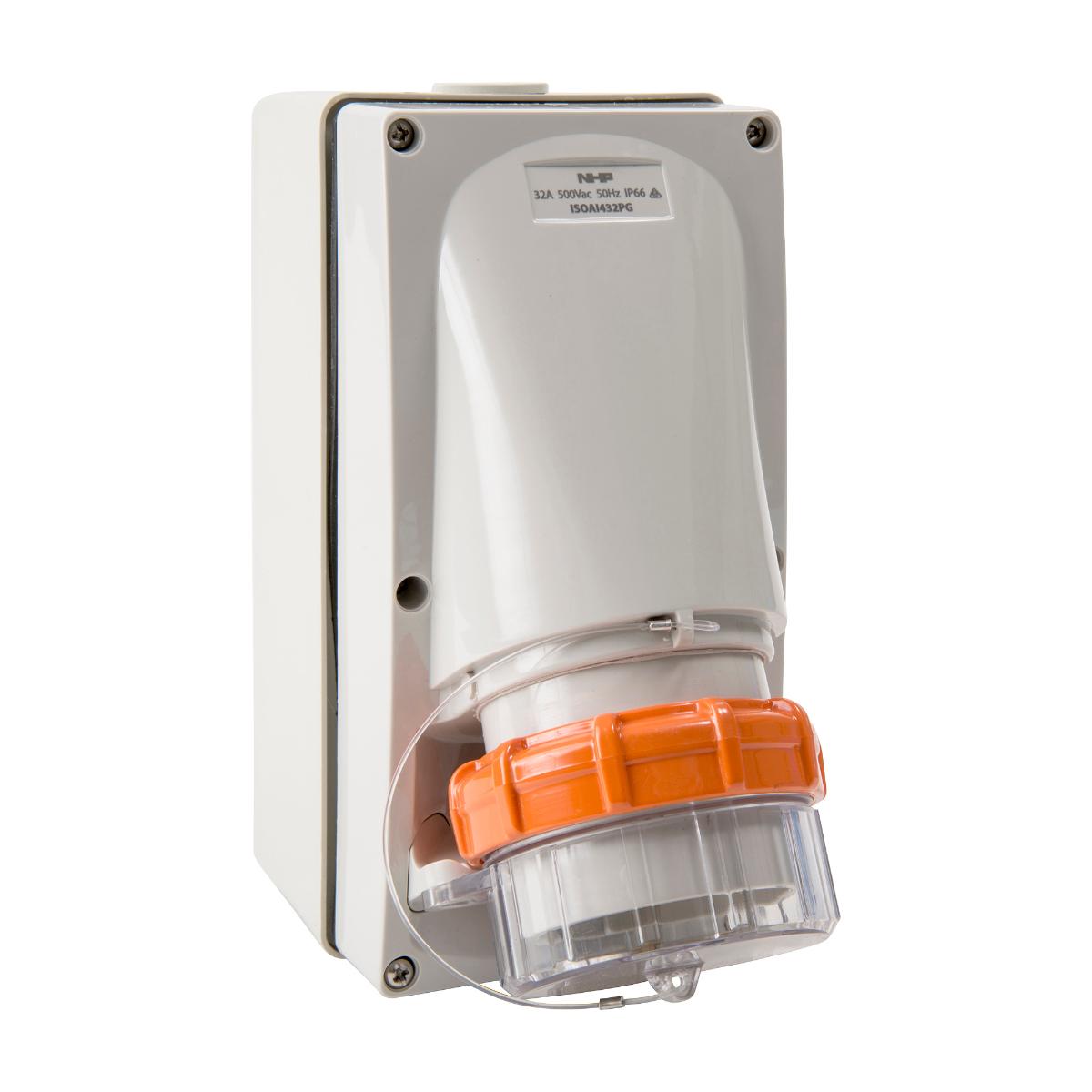

NHP ISOAI432PG ISO Appliance Inlet, 4 Round Pins 32A 500V AC, with Base 63mm, Grey
Code: NHPISOAI432PG
Unit of measure:
EACH
Description
NHP ISOAI432PG ISO Appliance Inlet, 4 Round Pins 32A 500V AC, with Base 63mm, Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of active pins (round) | 4 |
| Nominal Operational Voltage | 500V AC |
| Nominal voltage | 500V |
| Conductor cross section solid (solid - stranded) | 6-16mm² |
| Standard | AS/NZSÂ 3112:2004 AS/NZSÂ 3123:2005 |
| Product Series | ISO |
| Depth | 63mm |
| Colour | Grey |
| Component Type | Appliance Inlet |
| With base | Yes |
| Number of phases | 3 |
| Pin Configuration | 4 Pin |
| Voltage | 500V |
| Supplier Code | ISOAI432PG |
| Number of Pins | 4 Pin |
| Colour (Body / Housing) | Grey |
| Height | 198mm |
| Material (Body / Housing) | PC (Polycarbonate) |
| Width | 101mm |
| Type of cover | Screwed |
| Chemical Resistent (Body / Housing) | No |
| With neutral conductor contact | No |
| Material | Plastic |
| Brand Name | NHP |
| Base depth | 63mm |
| IP Rating | IP66 |
| ETIM Class | Appliance inlet according to AS/NZS 3123 |
| Rated Current | 32A |
| Current | 32A |
