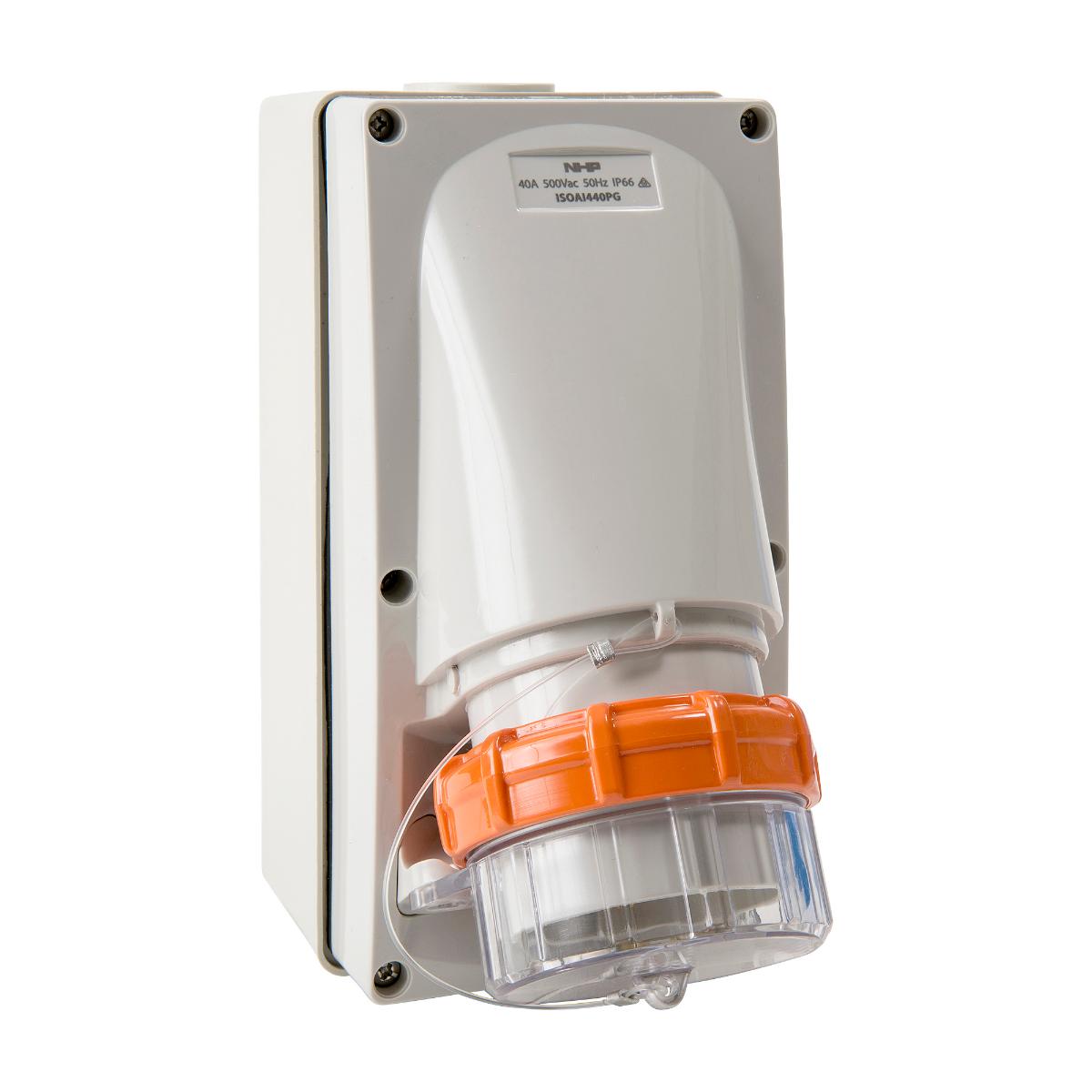

NHP ISOAI440PG ISO Appliance Inlet, 4 Round Pins 40A 500V AC, with Base 63mm, Grey
Code: NHPISOAI440PG
Unit of measure:
EACH
Description
NHP ISOAI440PG ISO Appliance Inlet, 4 Round Pins 40A 500V AC, with Base 63mm, Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of active pins (round) | 4 |
| Nominal voltage | 500V |
| With neutral conductor contact | No |
| Conductor cross section solid (solid - stranded) | 10-16mm² |
| Material | Plastic |
| Depth | 63mm |
| Colour | Grey |
| Brand Name | NHP |
| Base depth | 63mm |
| With base | Yes |
| Number of phases | 3 |
| IP Rating | IP66 |
| Voltage | 500V |
| Supplier Code | ISOAI440PG |
| Number of Pins | 4 Pin |
| ETIM Class | Appliance inlet according to AS/NZS 3123 |
| Height | 198mm |
| Current | 40A |
| Width | 101mm |
| Type of cover | Screwed |
