Description

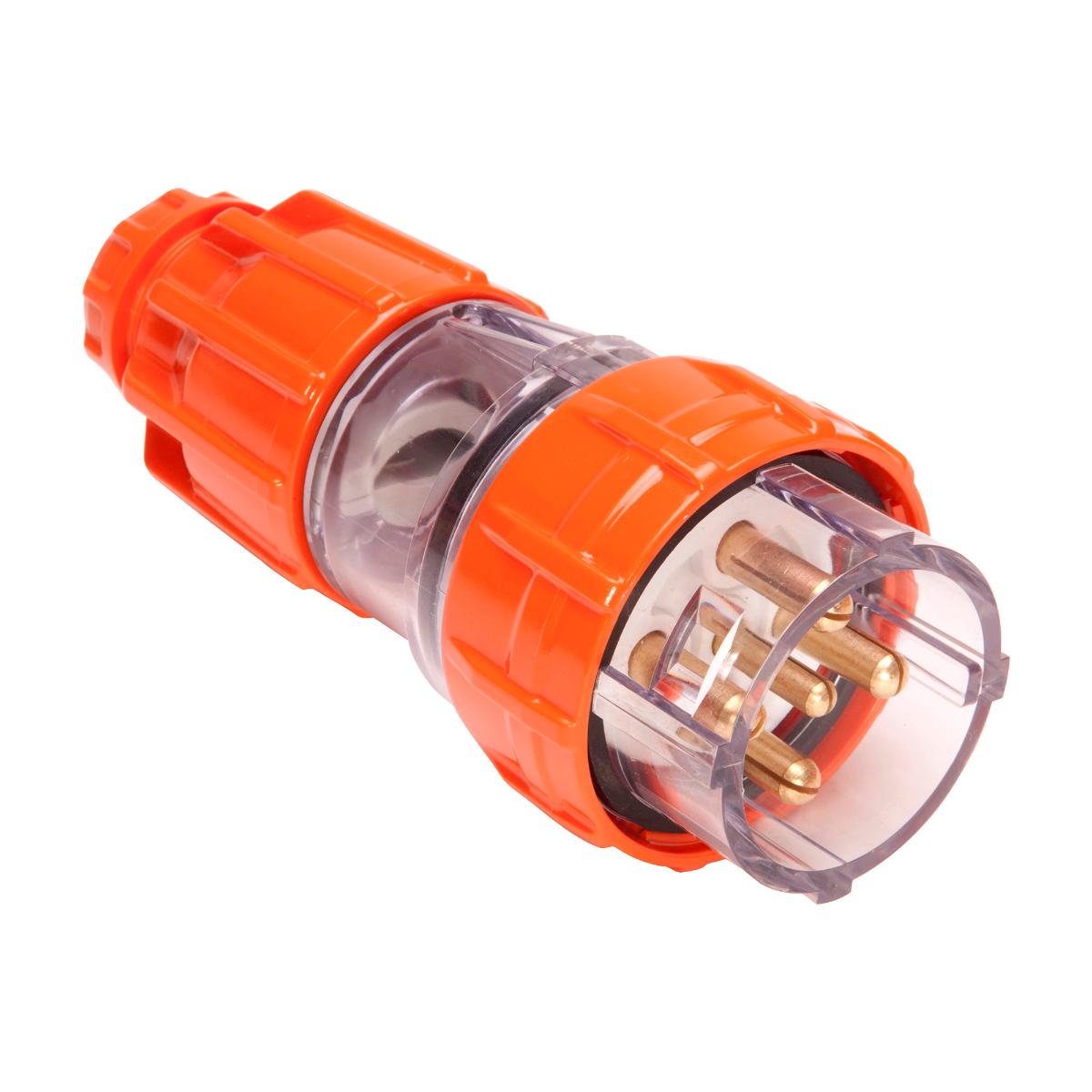

NHP NHPISOPS540P Plug Straight 5 Pin 40A Electric Orange
Features:
• Large range covering 10 to 50A in 3 4 and 5 pin configurations
• Components available: Switched Socket outlets. Switches. Socket Outlets. Plugs. Extension Sockets. Appliance Inlets. RCD Protected Outlets. Back Boxes and large range of accessories
• High ingress protection of IP66 across the range
• User friendly design with extruded ribbed grips. large switch handle and large socket latches for easy operation with or without gloves
• Suitable for most industrial and commercial applications
• Designed and tested to AS/NZS 3112 and AS/NZS 3194
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of active pins (round) | 5 |
| Nominal voltage | 500V |
| With neutral conductor contact | Yes |
| Conductor cross section solid (solid - stranded) | 10-16mm² |
| Standard | AS/NZS 3112:2004, AS/NZS 3123:2005 |
| Material | Plastic |
| Enclosure | IP66 |
| Colour | Orange |
| Brand Name | NHP |
| Item Name | Straight Plug |
| Angle of plug | Straight |
| Number of phases | 3 |
| IP Rating | IP66 |
| Supplier Code | ISOPS540P |
| UNSPCS | 39121402 |
| Number of Pins | 5 Round Pin |
| ETIM Class | Plug according to AS/NZS 3123 |
| Resistant to chemicals | No |
| Current | 40A |
