Description

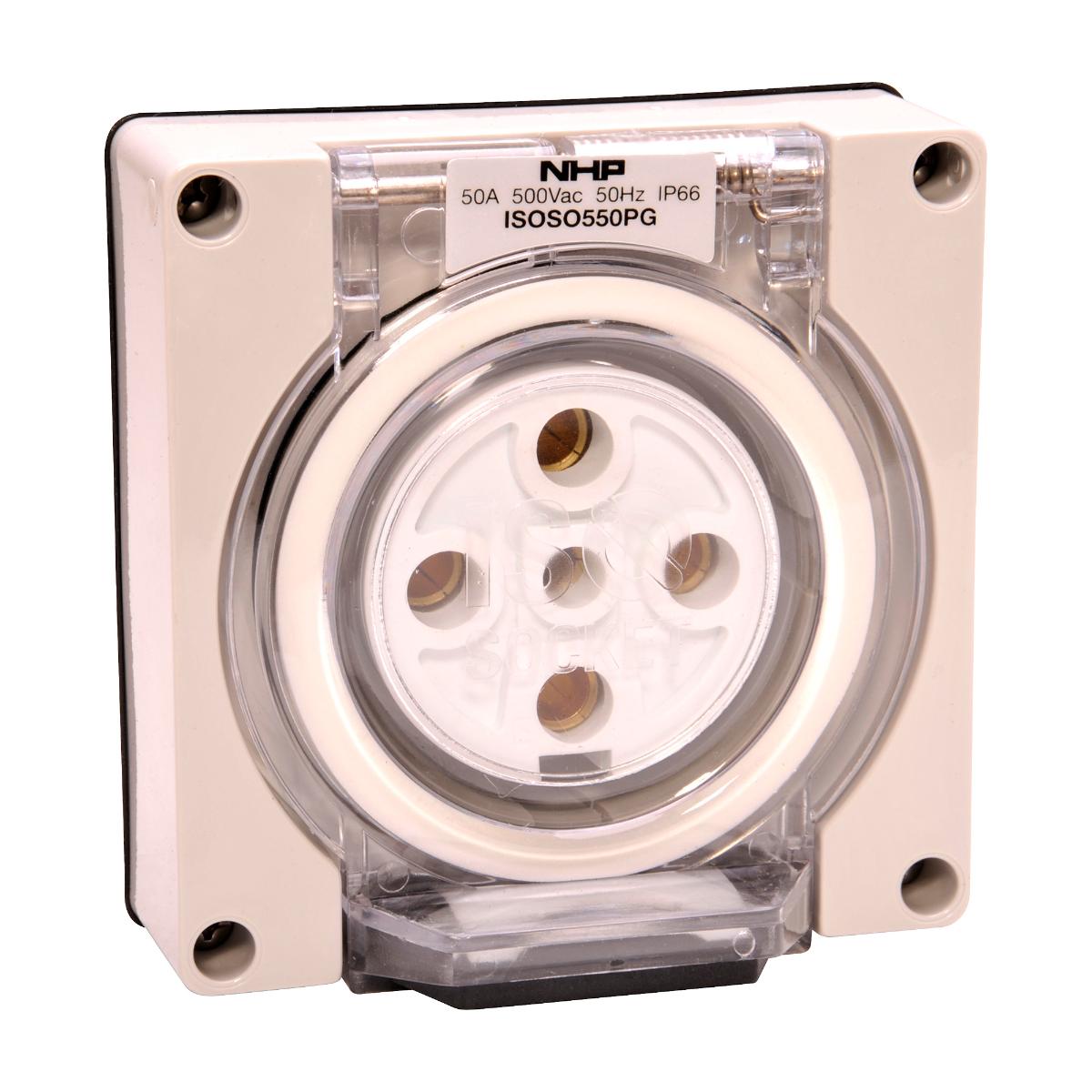

NHP NHPISOSO550PGLB Socket Outlet 5 Pin 50A Grey No Back Box
Features:
• Large range covering 10 to 50A in 3 4 and 5 pin configurations
• Components available: Switched Socket outlets. Switches. Socket Outlets. Plugs. Extension Sockets. Appliance Inlets. RCD Protected Outlets. Back Boxes and large range of accessories
• High ingress protection of IP66 across the range
• User friendly design with extruded ribbed grips. large switch handle and large socket latches for easy operation with or without gloves
• Suitable for most industrial and commercial applications
• Designed and tested to AS/NZS 3112 and AS/NZS 3239
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of active pins (round) | 5 |
| With neutral conductor contact | Yes |
| Conductor cross section solid (solid - stranded) | 10-16mm² |
| Nominal Voltage | 500V |
| Modular version | Yes |
| Standard | AS/NZSÂ 3112:2004 AS/NZSÂ 3123:2005 |
| Material | Plastic |
| Colour | Grey |
| Brand Name | NHP |
| Base depth | 63mm |
| With base | No |
| Number of phases | 3 |
| IP Rating | IP66 |
| Supplier Code | ISOSO550PGLB |
| Number of Pins | 5 Pin |
| ETIM Class | Socket outlet according to AS/NZS 3123 |
| Height | 101mm |
| Current | 50A |
| Width | 101mm |
| Type of cover | Hinged lid |
