Description

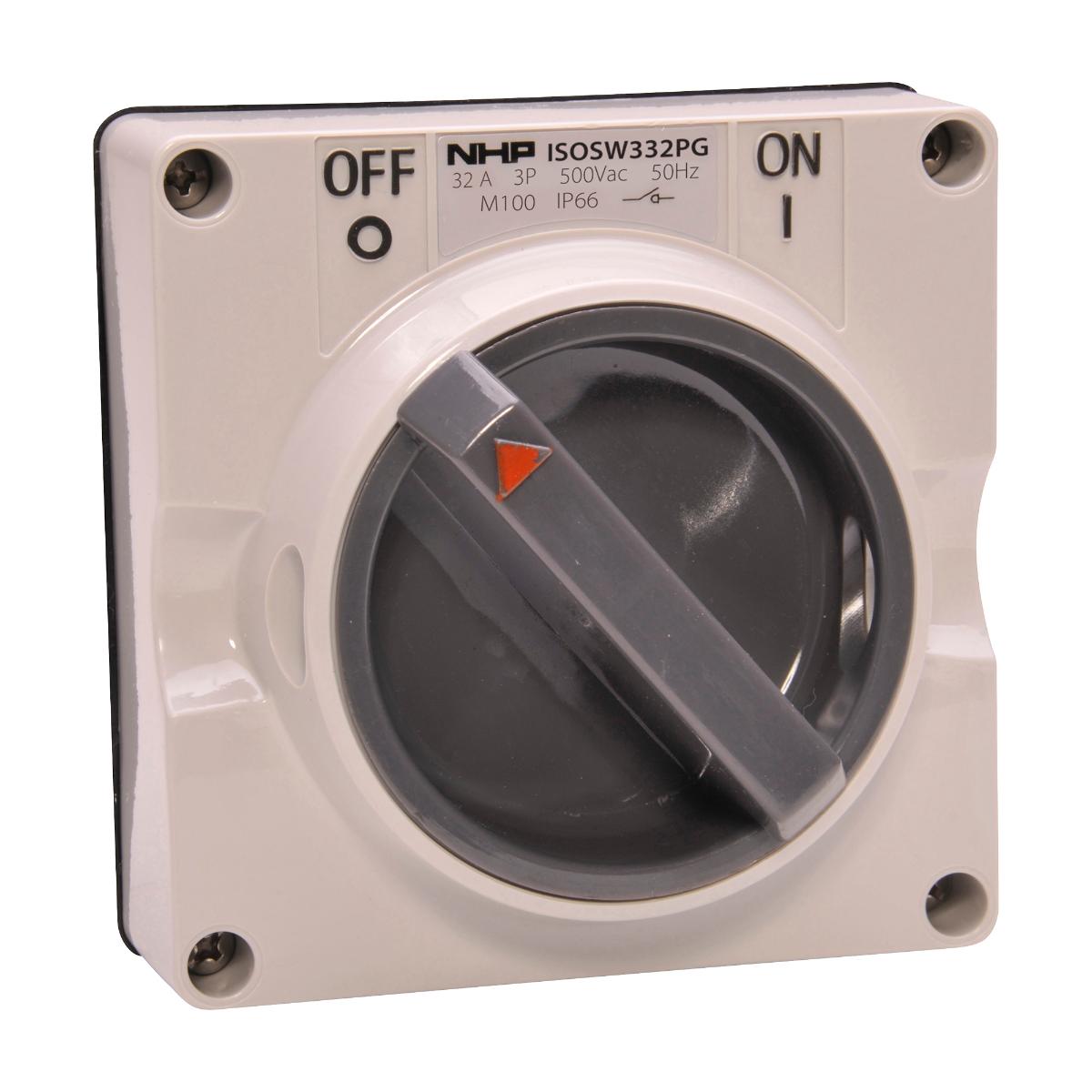

NHP NHPISOSW332PGLB Surface Switch 3 Pole 32A Grey No Back Box
Features:
• Large range covering 10 to 50A in 3 4 and 5 pin configurations
• Components available: Switched Socket outlets. Switches. Socket Outlets. Plugs. Extension Sockets. Appliance Inlets. RCD Protected Outlets. Back Boxes and large range of accessories
• High ingress protection of IP66 across the range
• User friendly design with extruded ribbed grips. large switch handle and large socket latches for easy operation with or without gloves
• Suitable for most industrial and commercial applications
• Designed and tested to AS/NZS 3112 and AS/NZS 3227
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Suitable for floor mounting | No |
| M rating | M100 |
| Material housing | Plastic |
| Standard | AS/NZS 3112:2004, AS/NZS 3123:2005 |
| Depth | 54mm |
| Colour | Grey |
| Voltage | 500 VAC |
| Supplier Code | ISOSW332PGLB |
| UNSPCS | 39122233 |
| Degree of Protection | IP66 |
| Height | 95mm |
| Width | 95mm |
| Rated operating voltage Ue | 500V |
| Suitable for distribution board installation | No |
| Connectable conductor cross section | 1.5-6mm² |
| Colour control element | Grey |
| Pole Configuration | 3 Pole |
| Mounting Type | Surface |
| Rated operating voltage | 500V |
| Version as reversing switch | No |
| Padlock locking | Yes |
| Brand Name | NHP |
| Item Name | Surface Switch |
| ETIM Class | Switch disconnector |
| Number of Poles | 3 |
| Degree of protection (NEMA) | 4X |
| Current | 32A |
| Pole | 3 |
