Description

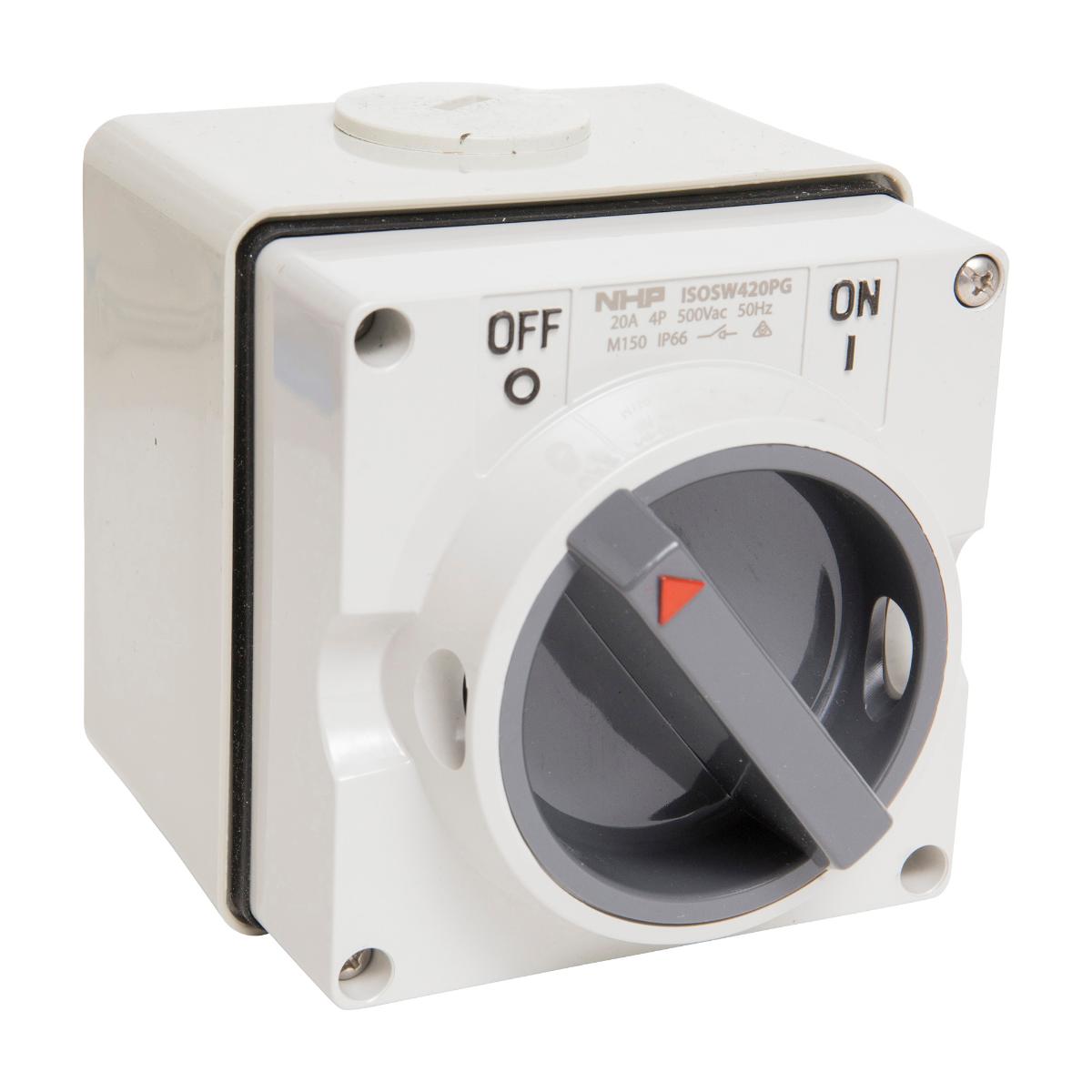

NHP NHPISOSW420PG Surface Switch 4 Pole 20A 500V AC Grey 63mm Base
Features:
• Large range covering 10 to 50A in 3 4 and 5 pin configurations
• Components available: Switched Socket outlets. Switches. Socket Outlets. Plugs. Extension Sockets. Appliance Inlets. RCD Protected Outlets. Back Boxes and large range of accessories
• High ingress protection of IP66 across the range
• User friendly design with extruded ribbed grips. large switch handle and large socket latches for easy operation with or without gloves
• Suitable for most industrial and commercial applications
• Designed and tested to AS/NZS 3112 and AS/NZS 3265
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Suitable for floor mounting | No |
| Connectable conductor cross section | 2.5-6mm² |
| Colour control element | Grey |
| Material housing | Plastic |
| Pole Configuration | 4 Pole |
| Rated operating voltage | 500V |
| Version as reversing switch | No |
| Depth | 117mm |
| Padlock locking | Yes |
| Colour | Grey |
| Brand Name | NHP |
| Voltage | 500V |
| Supplier Code | ISOSW420PG |
| ETIM Class | Switch disconnector |
| Height | 101mm |
| Degree of protection (NEMA) | 4X |
| Current | 20A |
| Width | 101mm |
| Pole | 4 |
| Rated operating voltage Ue | 500V |
