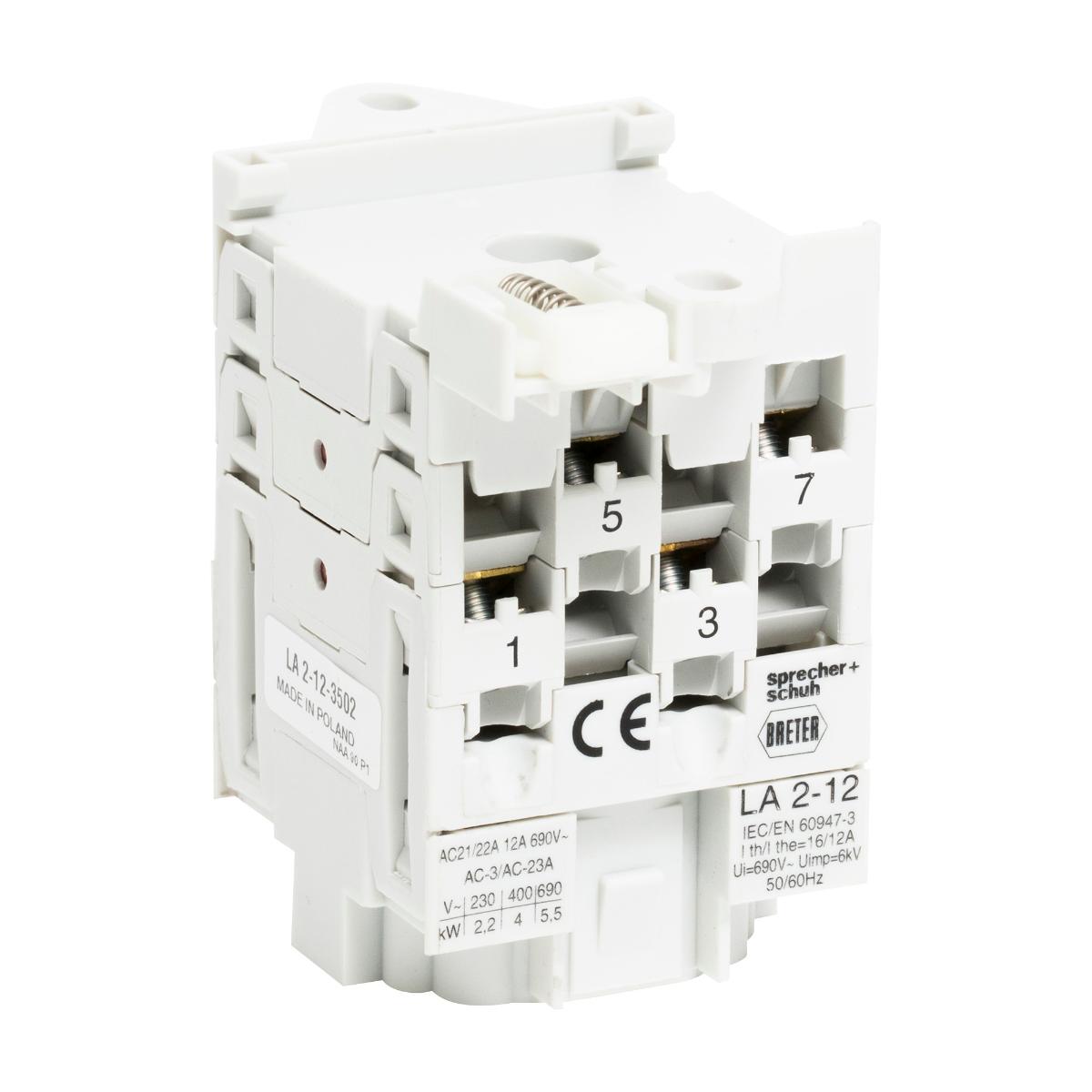

NHP LA2123502 Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover with Off 12A Base Mount
Code: NHPLA2123502
Unit of measure:
EACH
Description
NHP LA2123502 Sprecher and Schuh L2 Cam Switch Switch Body 2 Pole Changeover with Off 12A Base Mount
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Type of electrical connection of main circuit | Screw connection |
| Mechanical life (service cycles) | 1000000 cycles |
| Material housing | Plastic |
| Pole Configuration | 2 Pole |
| Depth | 68mm |
| Brand Name | NHP |
| Number of auxiliary contacts as normally open contact | 0 |
| Mounting method | DIN rail |
| Supplier Code | LA2123502 |
| ETIM Class | Off-load switch |
| Height | 59mm |
| Rated operation power at AC-3 - 400V | 2.2kW |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of switch positions | 3 |
| Operating temperature | -25-60°C |
