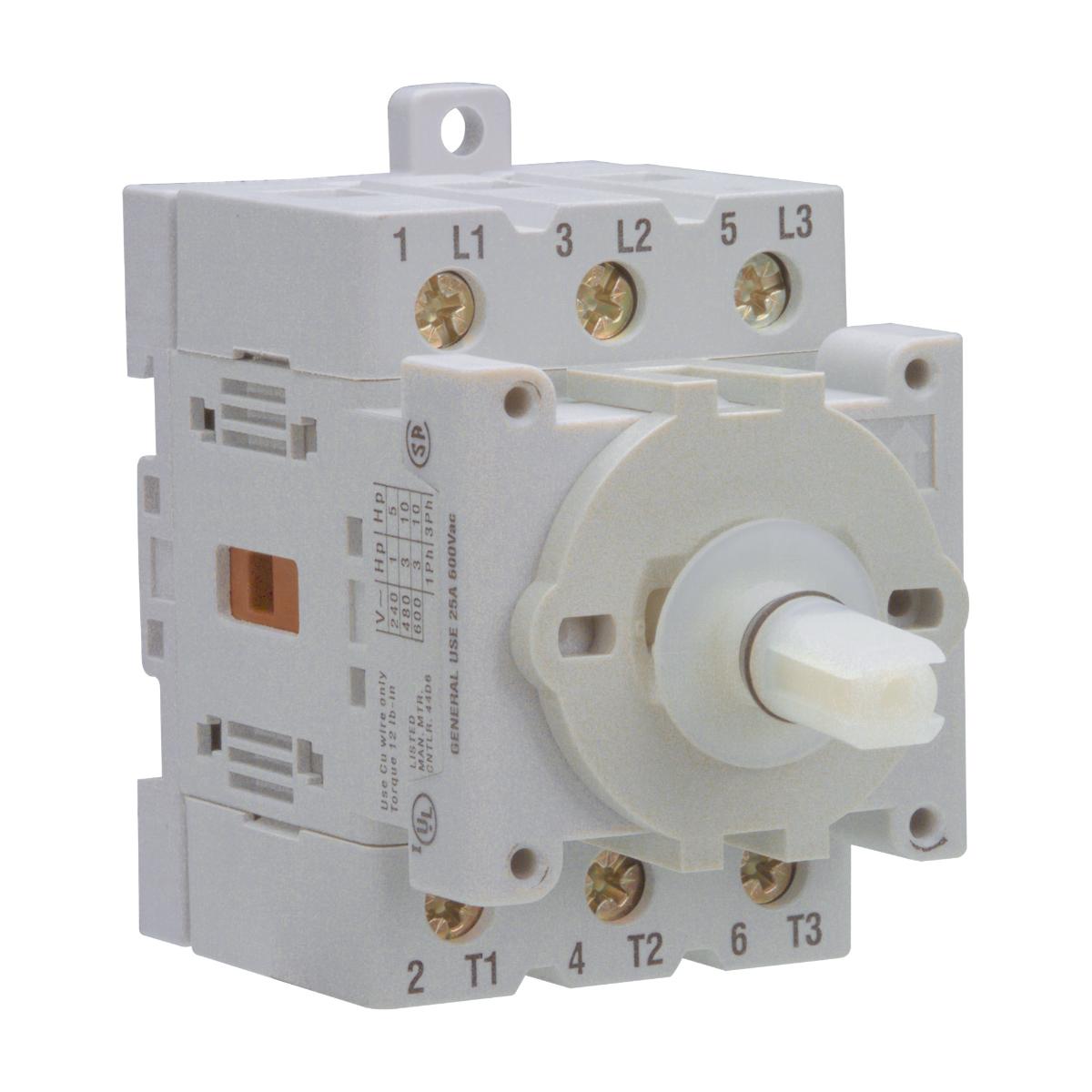

NHP LA7251753 Sprecher and Schuh L7 Switch Body 3 Pole Off On 25A Base Mount
Code: NHPLA7251753
Unit of measure:
EACH
Description
NHP LA7251753 Sprecher and Schuh L7 Switch Body 3 Pole Off On 25A Base Mount
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mechanical life (service cycles) | 200000 cycles |
| Material housing | Plastic |
| Pole Configuration | 3 Pole |
| Depth | 59mm |
| Brand Name | NHP |
| Number of auxiliary contacts as normally open contact | 0 |
| Mounting method | DIN rail |
| Supplier Code | LA7251753 |
| ETIM Class | Off-load switch |
| Model | On/Off switch |
| Height | 63mm |
| Rated operation power at AC-3 - 400V | 7.5kW |
| Number of auxiliary contacts as normally closed contact | 0 |
| Width | 45mm |
| Number of switch positions | 2 |
| Operating temperature | -25-60°C |
