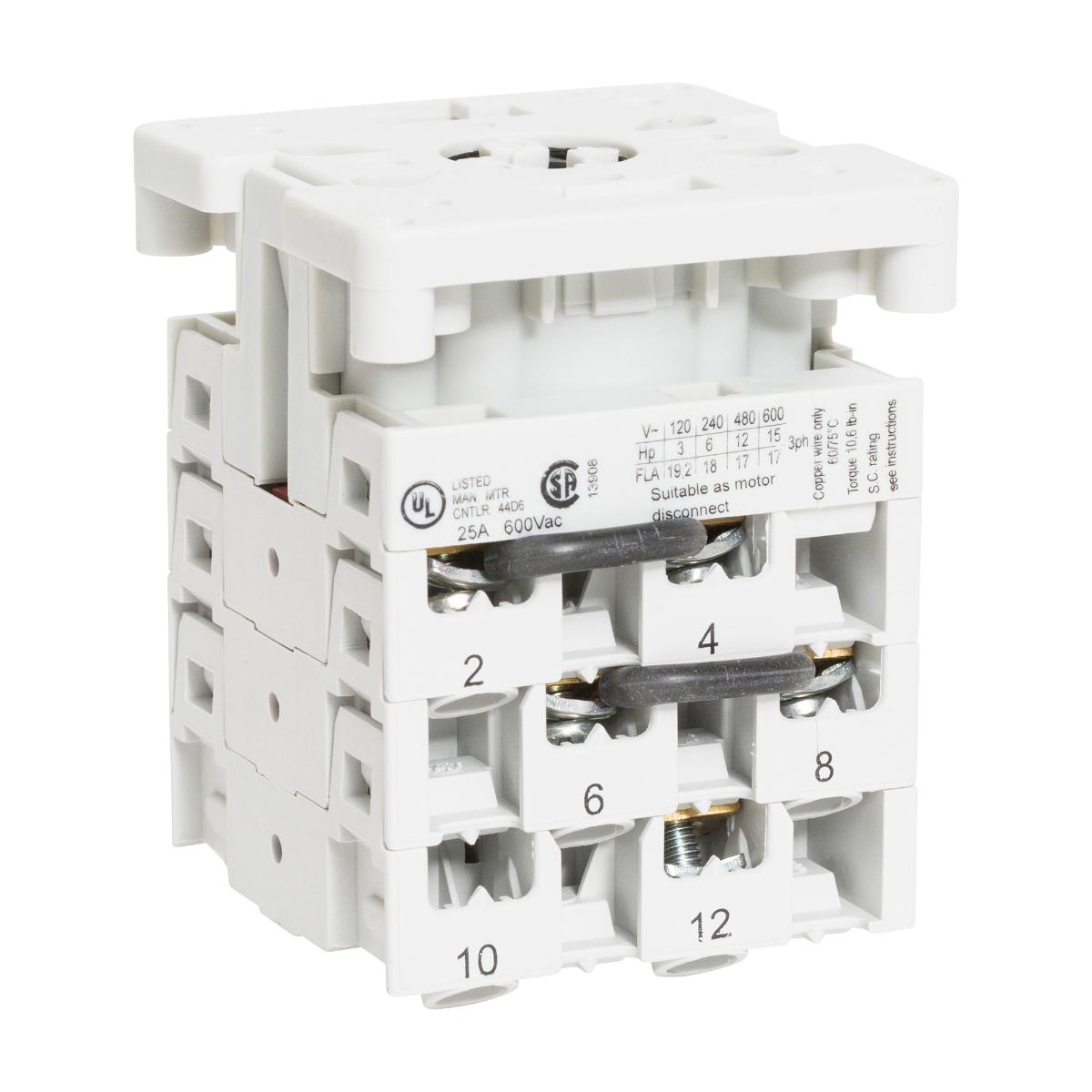

NHP LE2257303 Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Reversing 25A Panel Mount
Code: NHPLE2257303
Unit of measure:
EACH
Description
NHP LE2257303 Sprecher and Schuh L2 Cam Switch Switch Body 3 Pole Reversing 25A Panel Mount
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Type of electrical connection of main circuit | Screw connection |
| Mechanical life (service cycles) | 1000000 cycles |
| Material housing | Plastic |
| Pole Configuration | 3 Pole |
| Depth | 69.5mm |
| Brand Name | NHP |
| Number of auxiliary contacts as normally open contact | 0 |
| Mounting method | Front mounting |
| Supplier Code | LE2257303 |
| ETIM Class | Off-load switch |
| Model | Reversing switch |
| Rated operation power at AC-3 - 400V | 11kW |
| Height | 55mm |
| Number of auxiliary contacts as normally closed contact | 0 |
| Width | 55mm |
| Number of switch positions | 3 |
| Operating temperature | -25-60°C |
