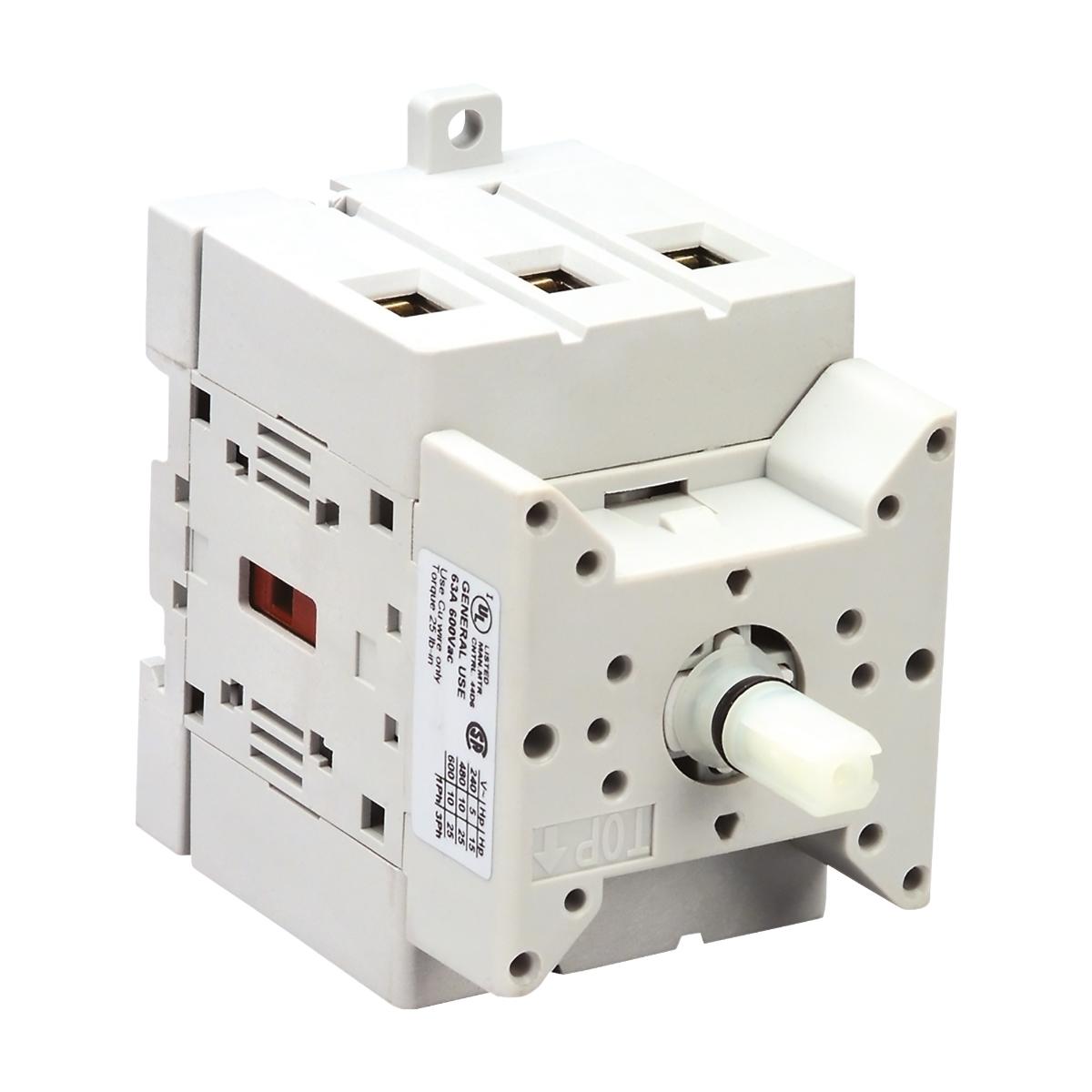

NHP LE7631753 Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 63A
Code: NHPLE7631753
Unit of measure:
EACH
Description
NHP LE7631753 Sprecher and Schuh L7 Switch Body 3 Pole Off On Panel Mount 63A
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mechanical life (service cycles) | 200000 cycles |
| Material housing | Plastic |
| Pole Configuration | 3 Pole |
| Depth | 74mm |
| Brand Name | NHP |
| Number of auxiliary contacts as normally open contact | 0 |
| Mounting method | Front mounting |
| Supplier Code | LE7631753 |
| ETIM Class | Off-load switch |
| Model | On/Off switch |
| Height | 72mm |
| Rated operation power at AC-3 - 400V | 18.5kW |
| Width | 54mm |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of switch positions | 2 |
| Operating temperature | -25-60°C |
