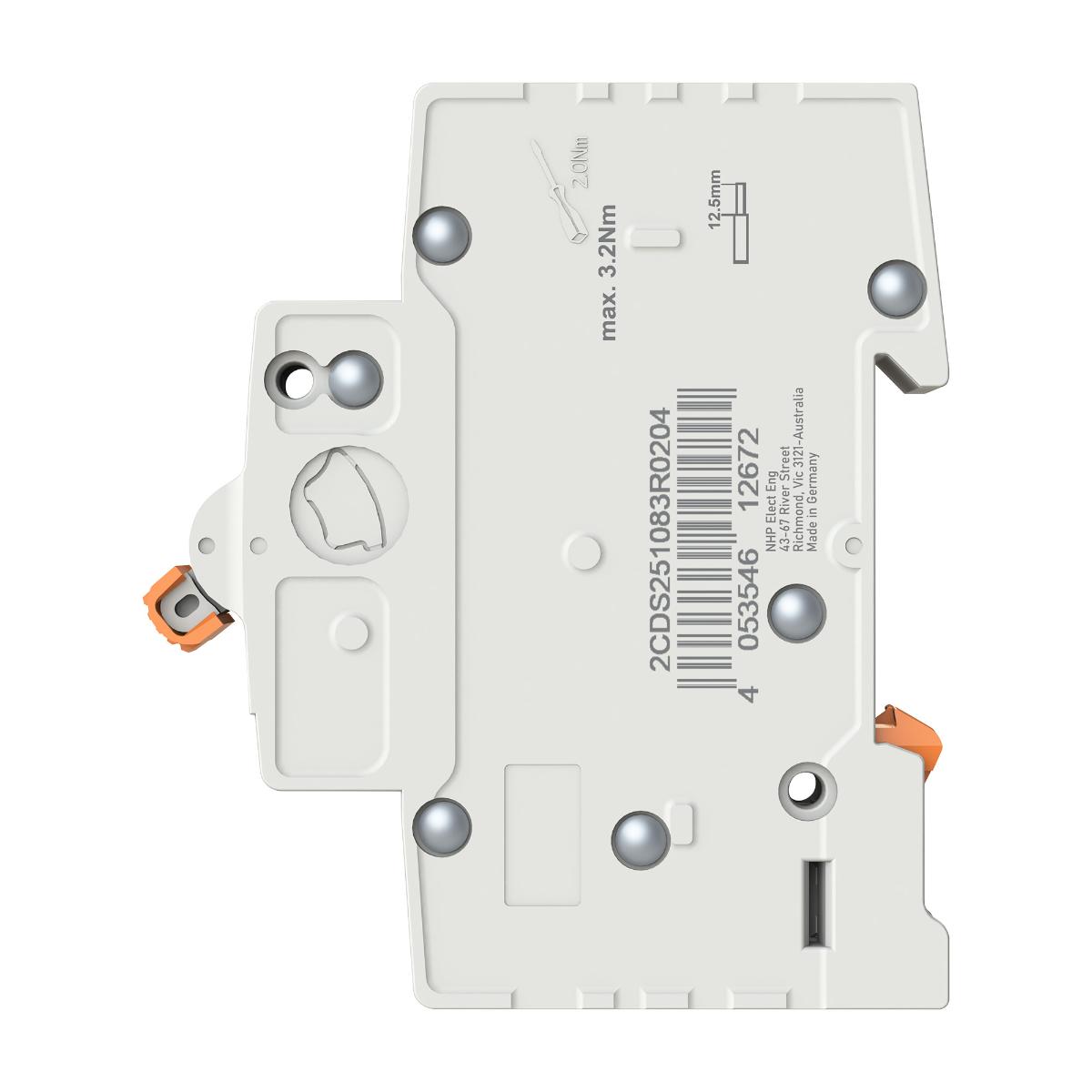

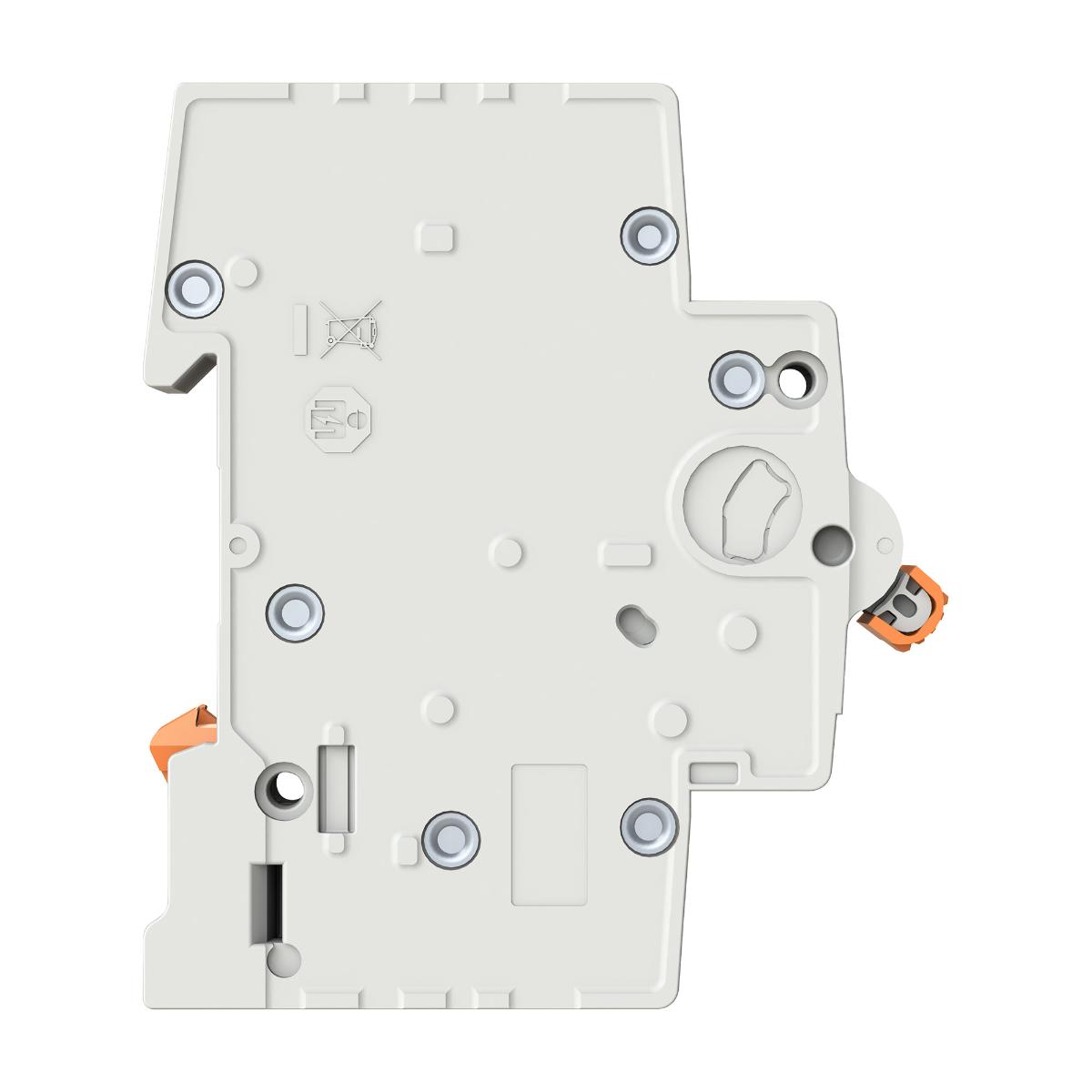

NHP MD6MH180 MOD6+ Miniature Circuit Breaker MCB 10kA 1 Pole 80A C Curve
Code: NHPMD6MH180
Unit of measure:
EACH
Description
NHP MOD6+ MD6MH180 MOD6+ MCB 10kA 1P 80A C Curve
MOD6+ MCB 10kA 1P 80A C Curve
Features:
• ETIM.Circuit breakers and fuses.Miniature circuit breaker (MCB) (EC000042)
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Rated insulation voltage Ui | 440V |
| Number of protected poles | 1 Pole |
| Rated surrounding temperature without derating | 30 Degree |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 10kA |
| Pole Configuration | 1 Pole |
| Ambient temperature during operating (EF007515) | -25 - 60 Degree |
| Range | MOD6 |
| Max. rated operation voltage Ue | 264V |
| Depth | 80.5mm |
| Brand Name | NHP |
| Rated current | 80A |
| Rated impulse withstand voltage Uimp | 4kV |
| IP Rating | IP40 |
| Rated voltage | 240V |
| Pollution degree | 3 |
| Frequency | 50/60 Hz |
| Number of poles (total) | 1 Pole |
| Height | 89.5mm |
| Width | 27mm |
