Description

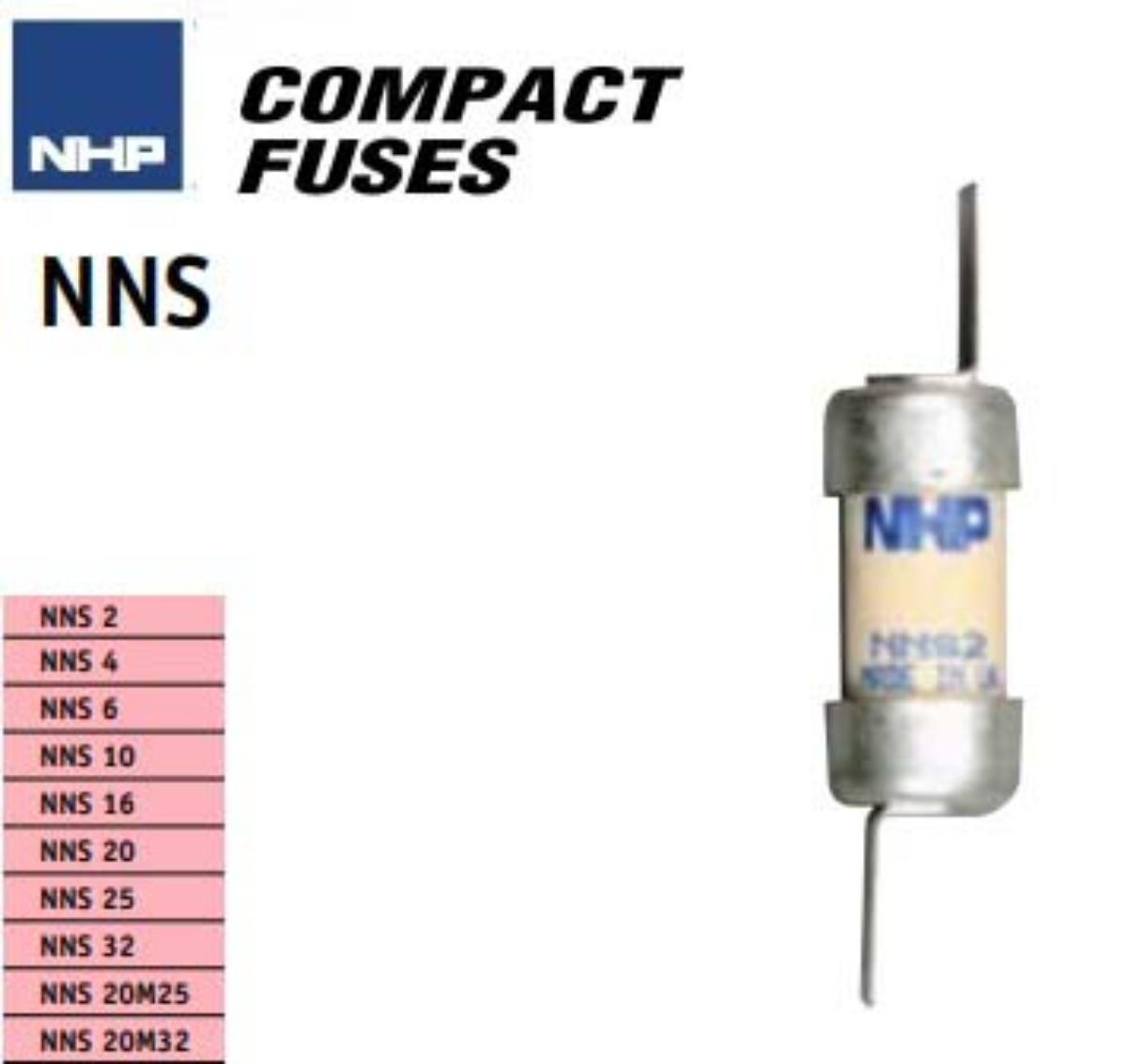

NHP NNS32 Fuse Cartridge Fuse Link Clip-In Offset Blade Tag NS 32 Amp 13.5mm x 59mm, 415VAC
Features:
• The element of an HRC fuse is similar to that of a regular fuse.
• It is manufactured from a metal such as silver that is designed to melt at a predetermined temperature
• When the fuse is operating within it's normal current range, the heat in the element is dissipated without causing any damage to the element.
• HRC Fuses do not deteriorate with age, providing reliable operation
• HRC Fuse (High Rupturing Capacity Fuse)
• Use in fuse-holder SC32
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Fuses |
| Size | 13.5mm x 59mm |
| Connection | Clip-In Offset Tag |
| Utilisation Category | Class gG |
| Fuse Type | aM |
| Standard | AS/NZS 60269-1:2005, IEC 60269-1, IEC 60269-2, VDEÂ 0636-10, DINÂ 43620 |
| Range | NS |
| Mounting | Offset Blade Tag |
| Brand Name | NHP |
| Box Qty | 10 |
| Item Name | Cylindrical Fuse |
| EAN/UPC | 5019586064516 |
| Length | 59mm |
| Interrupt Rating | 80 kA |
| Voltage | 500 VAC |
| UNSPCS | 39121606 |
| Breaking Capacity AC (kA) | 80kA |
| Rated Current | 32 Amp |
| Class | Class GG |
| Width | 13.5mm |
| Current | 32A |
| Standards and Approvals | BS88: Part 6 |
