Description

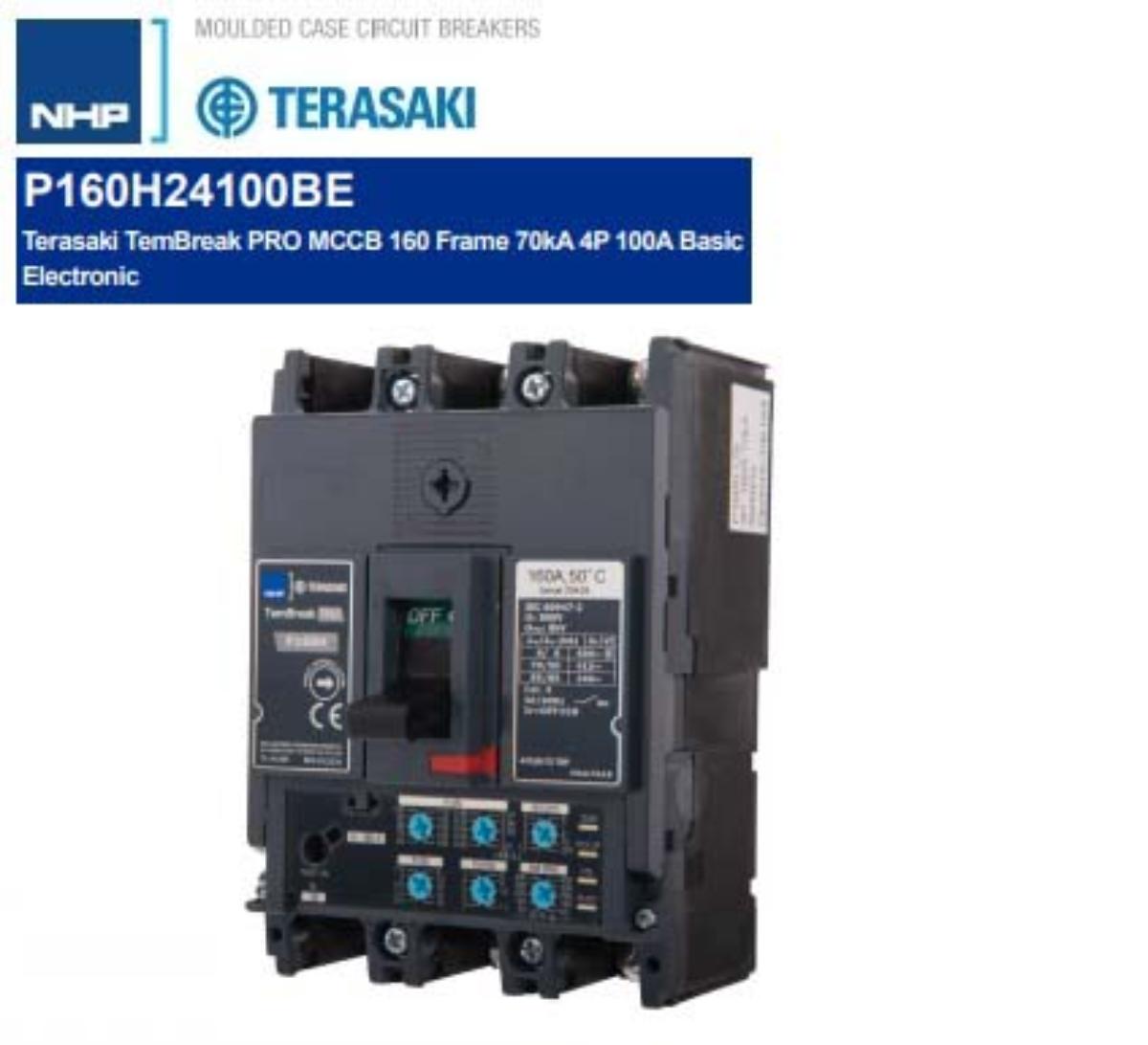

NHP P160H24100BE Circuit Breaker MCCB Complete, TemBreak PRO, 160A Frame, 4-Pole, Electronic release Trip Unit, LSI Curve, 36.8-100 Amp at 70kA at 415V 50Hz
Circuit Breaker MCCB Complete TemBreak PRO, 160 Amp Frame, 4-Pole, Electronic release Trip Unit, LSI Curve, 36.8-100 Amp Trip range 70kA at 415 V, 50 Hz,
Features:
• Moulded Case Circuit Breaker (MCCB) (Sub Distribution) - e. A typical low end current rating would be 20 A, but in general they are more commonly used from around 160 A upwards and have a typical maximum current rating of 3200 A. When ratings around 63 A and below are present, MCBs tend to be preferred over MCCBs. MCCB contacts open and close in air at atmospheric pressure.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Brand Name | NHP |
| Category | Circuit Breakers |
| Voltage | 690VAC |
| Curve | Electronic release Trip Unit,LSI Curve |
| Rated Current | 36.8-100 Amp Trip range |
| Pole Configuration | 4-Pole |
| Range | TemBreak PRO |
| Breaking Capacity | 70kA at 415 V,50 Hz |
