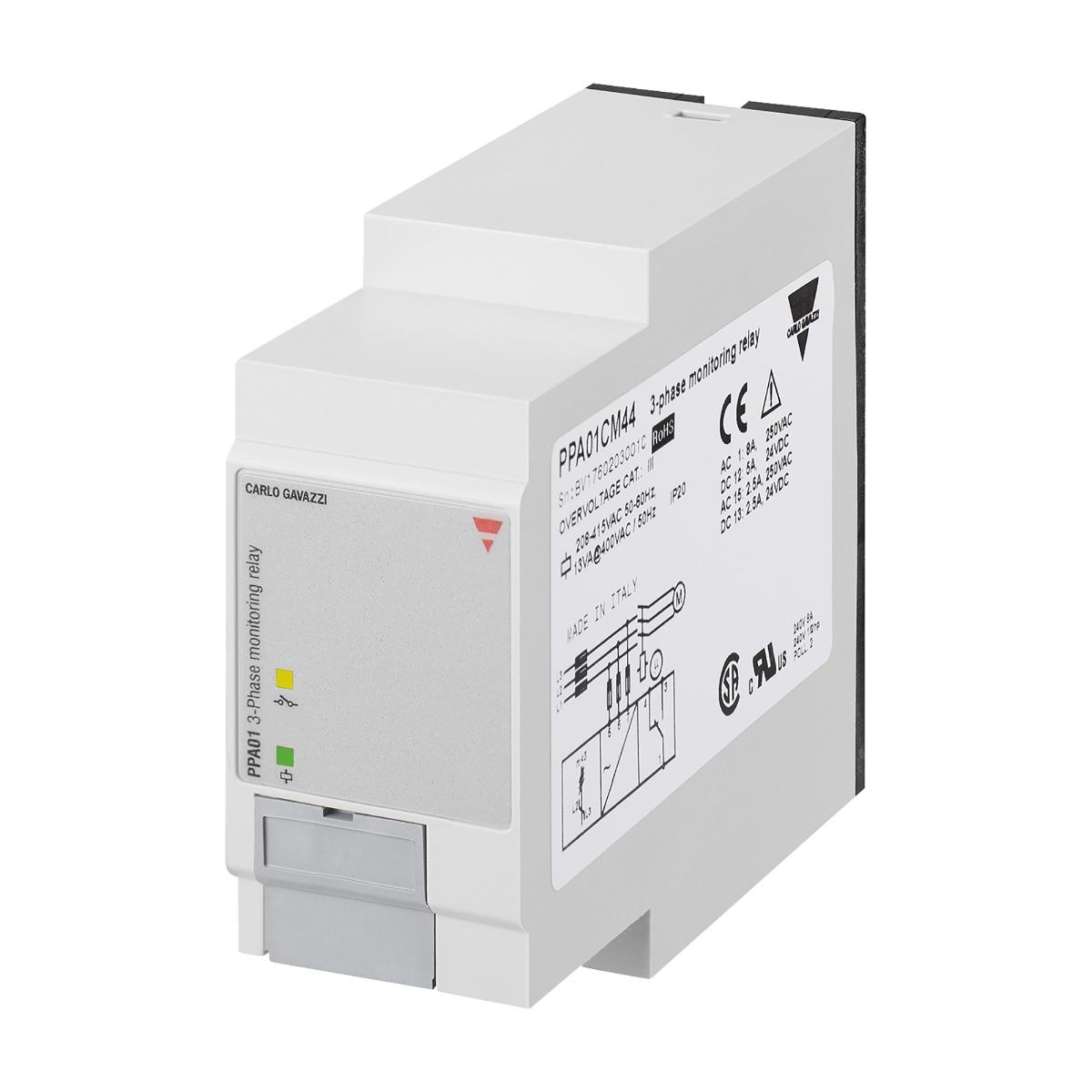

NHP PPA01CM44 Carlo Gavazzi Monitoring Relay 3 Phase Phase Sequence Loss 208 to 415V AC Supply 1 Changeover
Code: NHPPPA01CM44
Unit of measure:
EACH
Description
NHP PPA01CM44 Carlo Gavazzi Monitoring Relay 3 Phase Phase Sequence Loss 208 to 415V AC Supply 1 Changeover
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Phase | 3 |
| Rated operation current Ie at DC-12 - 24V | 5:00:00AM |
| Number of contacts as change-over contact | 1 |
| Storage temperature | -30-80°C |
| Standard | CE, CSA, UL Listed |
| Voltage type for actuating | Self powered |
| Monitoring Application | Phase Sequence/Loss |
| Depth | 94mm |
| Measuring Range | 177 - 475 VAC |
| Voltage | 208 - 480 VAC |
| Supplier Code | PPA01CM44 |
| Degree of Protection | IP20 |
| Height | 80mm |
| Suitable for plug-in socket mounting | Yes |
| Width | 36mm |
| Rated operating voltage Ue | 208-415V |
| Type of electric connection | Plug-in connection |
| Terminal Type | Screw |
| Material contact | Silver tin-oxide |
| Frequency Rating | 50/60 Hz |
| Brand Name | NHP |
| Item Name | Monitoring Relay |
| EAN/UPC | 8030956000955 |
| Contact Configuration | 1 CO |
| IP Rating | IP20 |
| ETIM Class | Phase monitoring relay |
| Rated frequency | 50-60 Hz |
