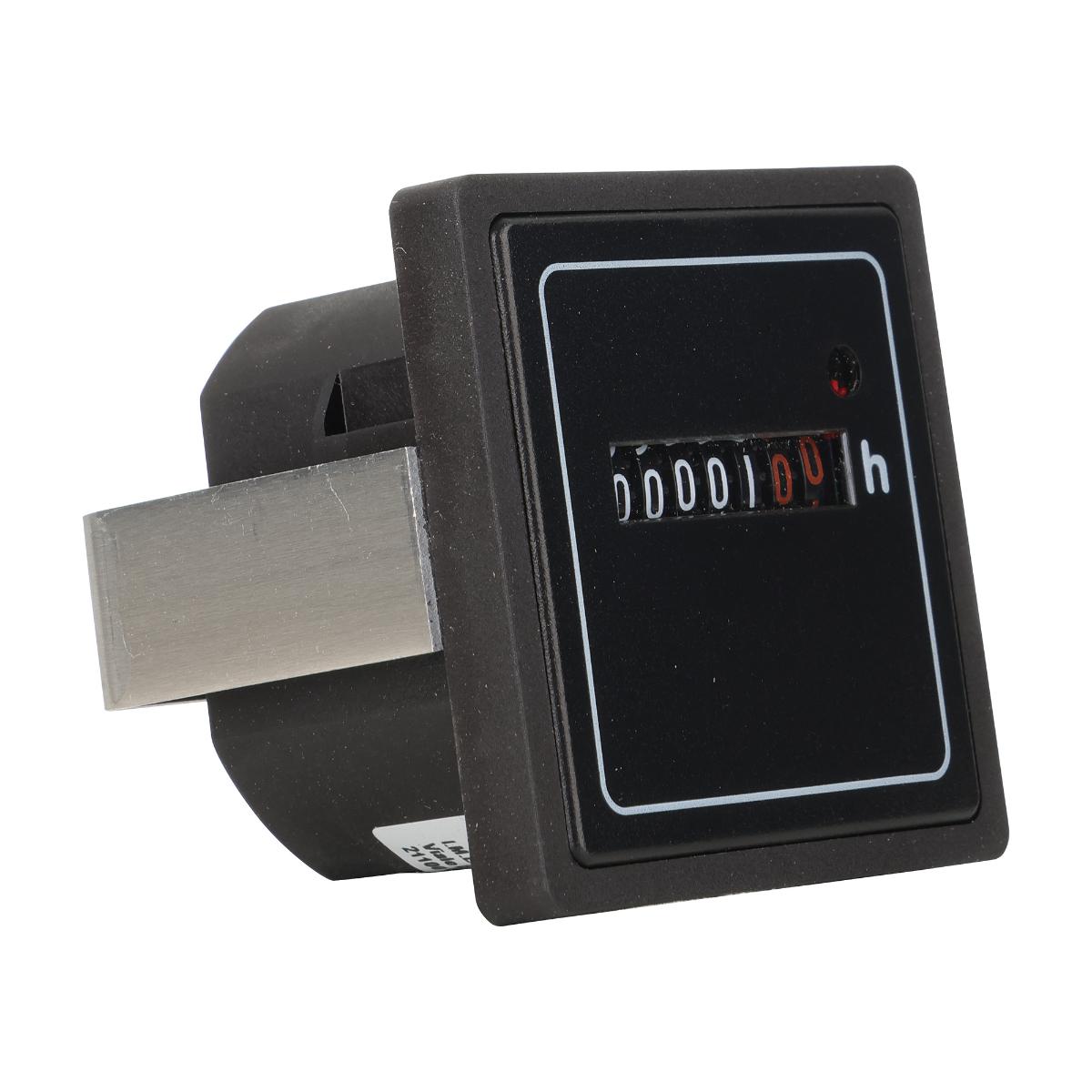

NHP RQ480240VAC IME Analogue Hour Run Meter 240V 50Hz AC
Code: NHPRQ480240VAC
Unit of measure:
EACH
Description
NHP RQ480240VAC IME Analogue Hour Run Meter 240V 50Hz AC
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Voltage type | AC |
| Display Range | 0 - 99999.99H |
| Mount | Panel |
| Standard | EN 60529, IEC 60529 |
| Meter Type | Hours Run |
| Voltage | 240 VAC |
| Supplier Code | RQ480240VAC |
| Degree of Protection | IP40 Front/IP20 Terminal |
| Height | 45mm |
| Housing material | Polycarbonate (PC) |
| Cross Section | 48 sq-mm |
| Built-in depth | 42mm |
| Width | 45mm |
| Temperature Rating | -20 to 70 deg C |
| Number of Digits | 7 |
| Dimensions | 48 mm Height x 48 mm Width x 42 mm Depth |
| Material | Polycarbonate |
| Range | RQ480 Series |
| Frequency Rating | 50 Hz |
| Brand Name | NHP |
| Item Name | Analogue Hour Meter |
| EAN/UPC | 2000000143736 |
| Type | Run |
| IP Rating | IP40 |
| Mounting method | Front mounting |
| ETIM Class | Hour meter |
| Model | Analogue |
| Auxiliary Power Consumption | 1.92 VA AC |
| Display | Analog |
| Operating temperature | -20-70°C |
