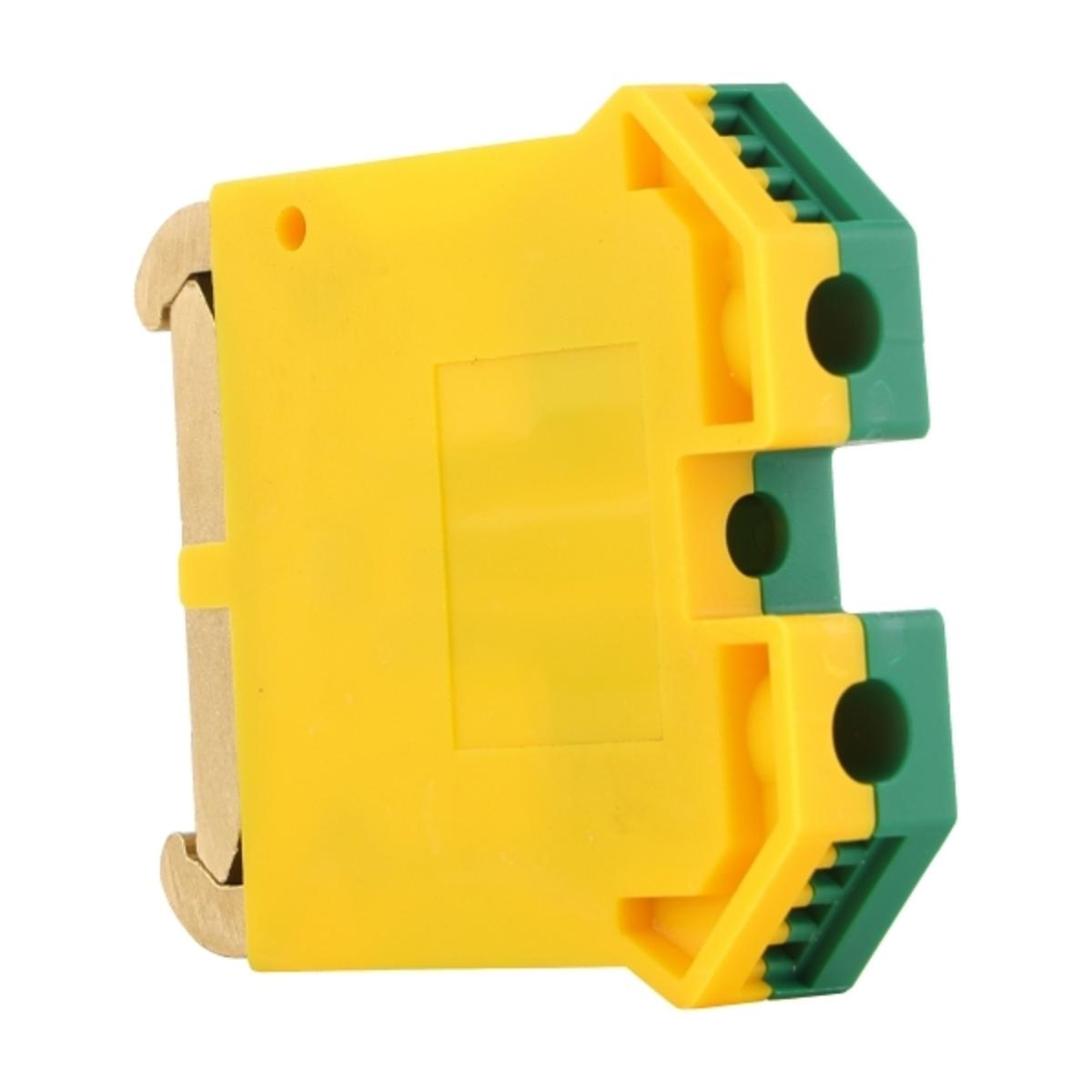

NHP V7WG16 V7 Series Terminal Earth Block, 16mm, Screw Connection, 2 Conductors, DIN Rail Mount, -40 to 90 degree C, Green/Yellow
Code: NHPV7WG16
Unit of measure:
EACH
Description
Screw Terminal
Brand Name: Sprecher+Schuh
Type: Terminal
Wire Size: 16 sq-mm
Color: Green/Yellow
Size: 35 mm Width x 55 mm Height
Wire Strip Length: 18 mm
Tightening Torque: 2.5 N/m
Temperature Rating: -40 to 90 Deg C
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Temperature Rating | -40 to 90 Deg C |
| Size | 35 mm Width x 55 mm Height |
| Wire Strip Length | 18 mm |
| Range | V7 |
| Mounting Type | DIN Rail |
| Colour | Green,Yellow |
| Brand Name | NHP Electrical |
| Item Name | Screw Terminal |
| Conductor size | 4mm² |
| Type | Terminal |
| UOM | Metric |
| Tightening Torque | 2.5 N/m |
| Length | 35mm |
| UNSPCS | 39121410 |
| UNSPSC | 39121410 |
| Height | 55mm |
| Wire Size | 16 sq-mm |
| Width | 13mm |
