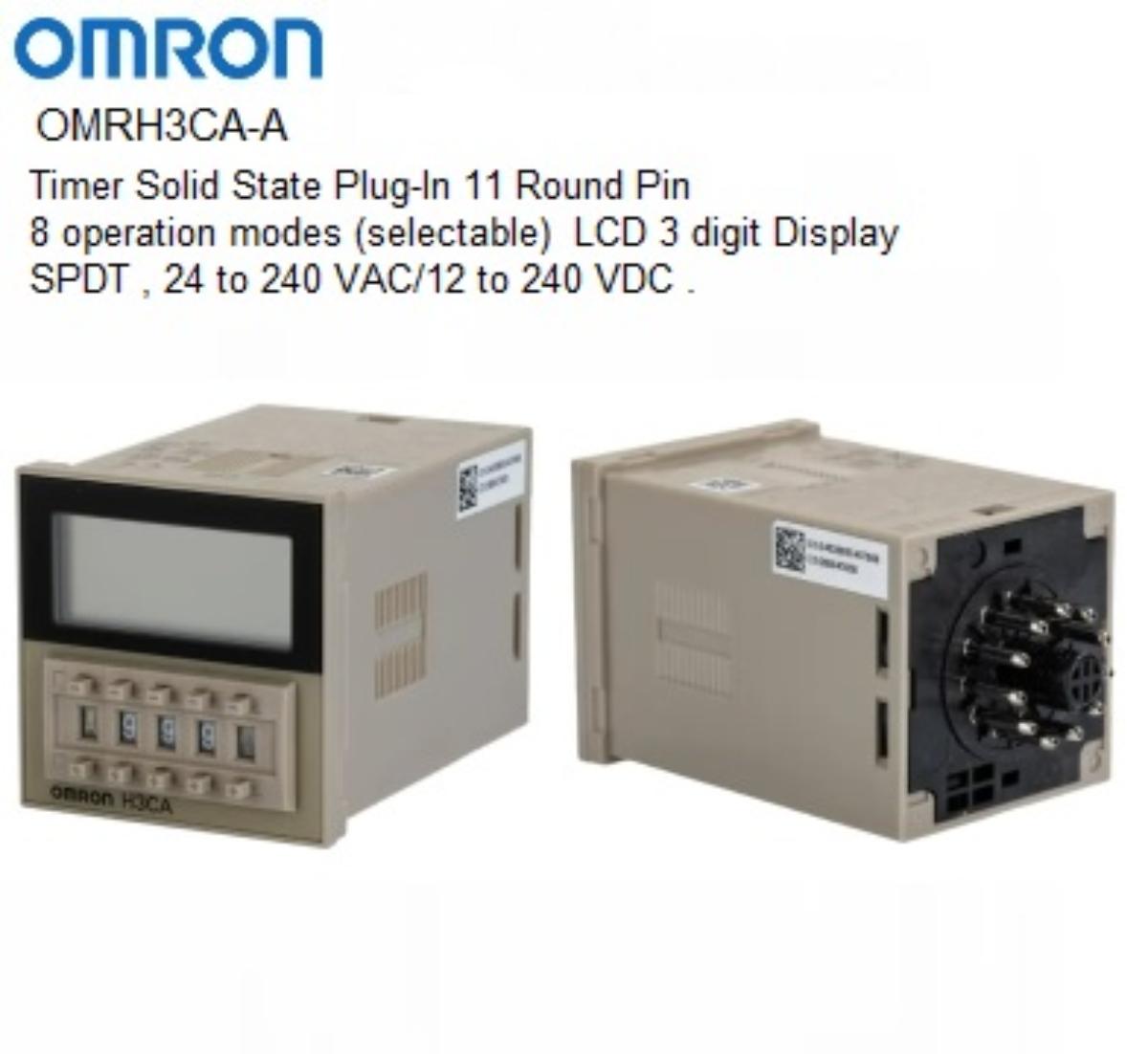

Omron H3CA-A Timer Solid State Plug-In 11 Round Pin 8 operation modes (selectable), LCD 3 digit Display, 3 A at 250 VAC, resistive load, SPDT, 24 to 240 VAC/12 to 240 VDC.
Code: OMRH3CA-A
Unit of measure:
EACH
Description
Timer Solid State Plug-In 11 Round Pin 8 operation modes (selectable), LCD 3 digit Display, 3 A at 250 VAC, resistive load, SPDT, 24 to 240 VAC/12 to 240 VDC.
Features:
• DIN-sized (48 x 48, 45 x 75 mm) Timer with Digital Setting and LCD Display
• Dual power supplies for free AC/DC

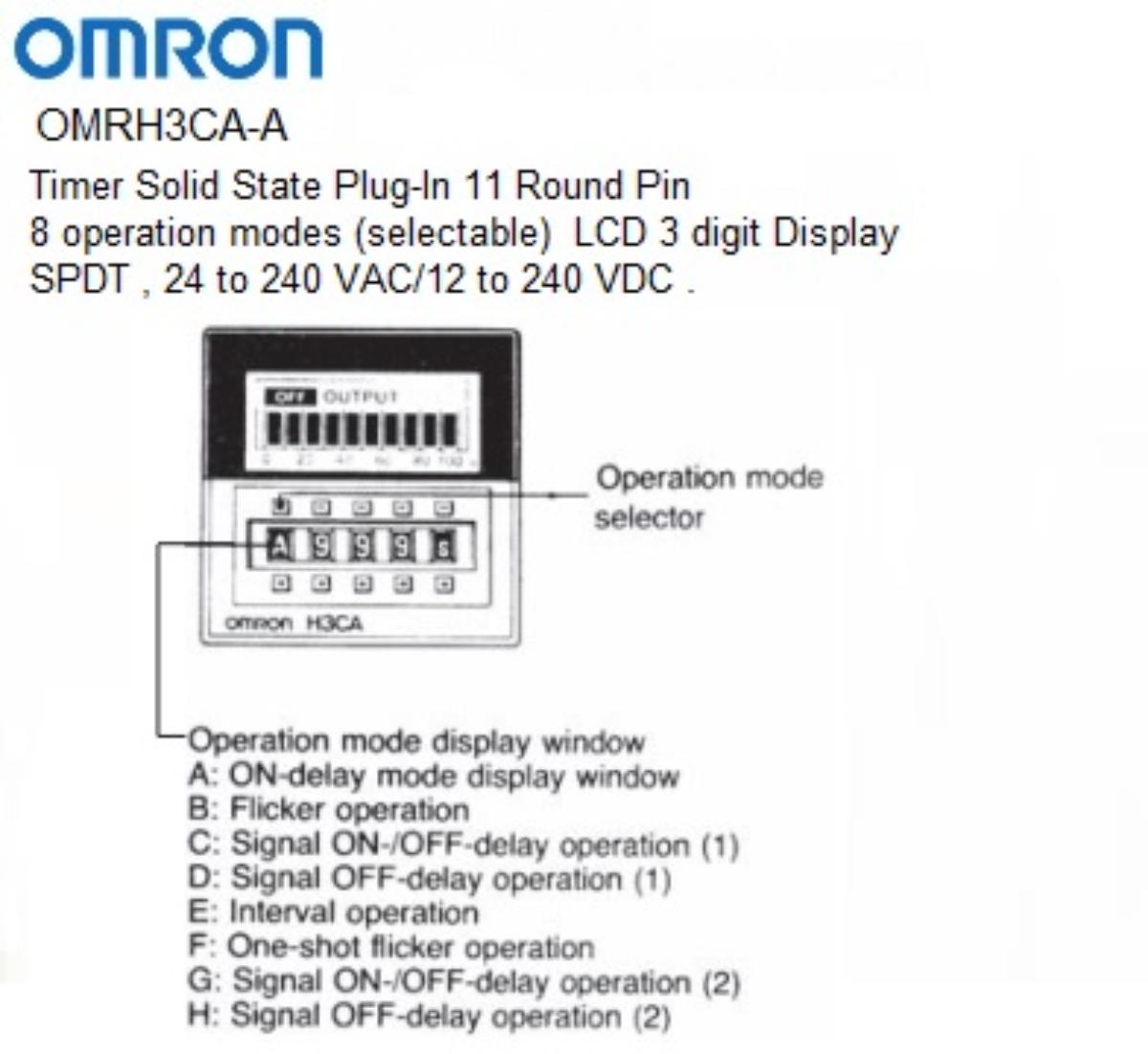

• Eight operation modes selectable with one unit.
• Any desired time can be set digitally within a range from 0.1 seconds to 9,990 hrs.
• Four external signal inputs.
• ON/OFF indicator for control output and bar indicator for remaining time
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Relays & Timers |
| Function Type | Timer |
| Mount | Din Rail |
| Range | H3CA |
| Contact Configuation | SPDT |
| Brand Name | Omron |
| Item Name | Multifunction Relay |
| EAN/UPC | 4536853497460 |
| Type | Multi Volt |
| Current Type | AC |
| Contact Configuration | SPDT |
| Length | 78mm |
| Voltage | 24 to 240 VAC/12 to 240 VDC . |
| Number of Pins | 11 Pin |
| Rated Current | 3 A at 250 VAC, resistive load |
| Height | 48mm |
| Width | 48mm |
