Description

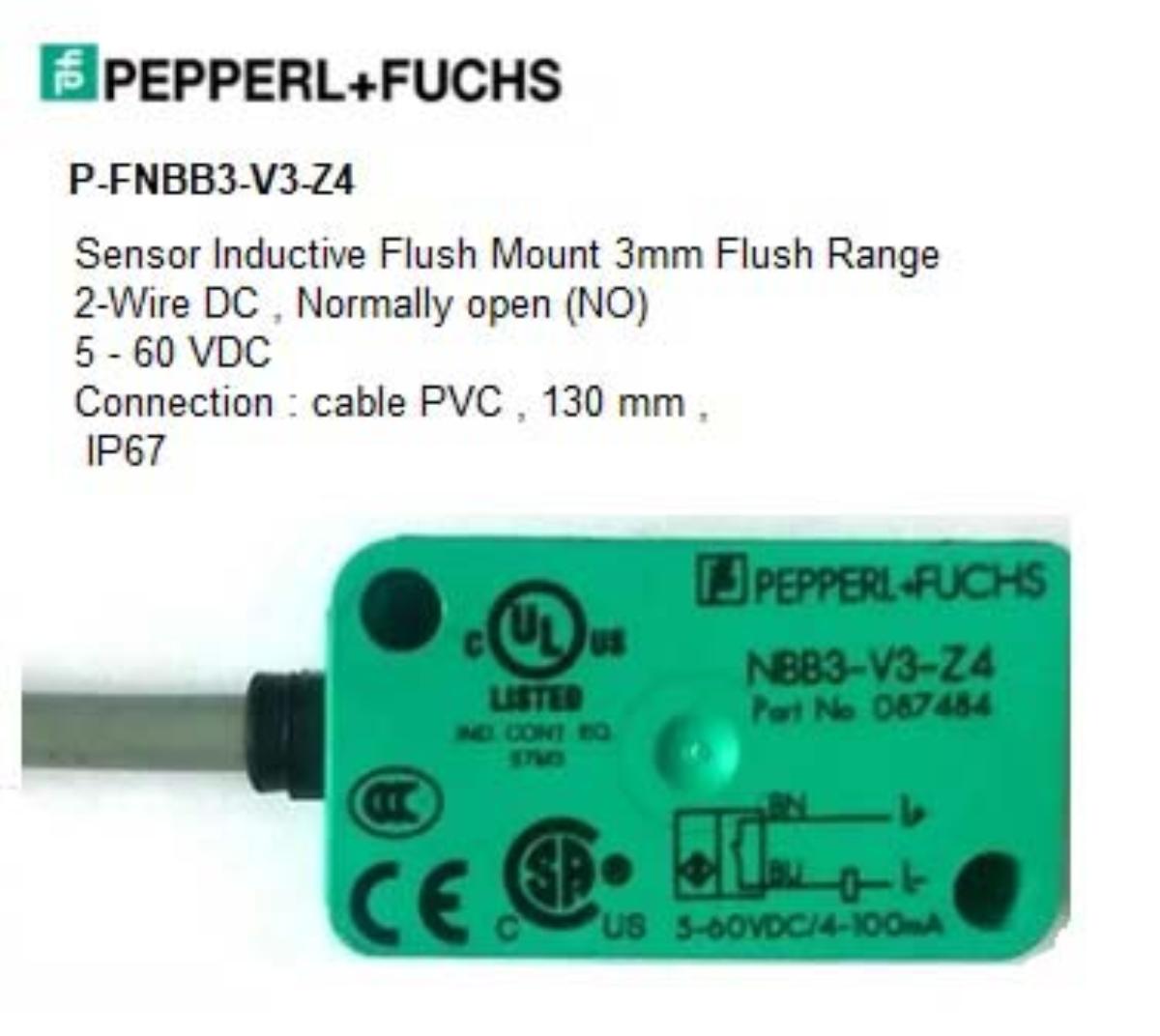

Pepperl + Fuchs NBB3-V3-Z4 Sensor Inductive Flush 3mm Flush Range 2-Wire DC, N/O 5-60VDC, Connection:cable PVC, 130mm, IP67. Part # 087484
Sensor Inductive Flush 3mm Flush Range 2-Wire DC, Normally open (NO) 5 - 60 VDC, Connection : cable PVC, 130 mm, IP67 Part # 087484
Features:
• Inductive proximity sensors are the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment
• Smooth or threaded stainless housings
• Polarity reversal and short-circuit protected
• LED status indication
• Comfort series
• Models with PVC, PUR or silicon cable
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Brand Name | Pepperl + Fuchs |
| Poles | Normally open (NO) |
| Type | Sensor Inductive |
| Box Quantity | 1 |
| Category | Sensor Industrial |
| Contact Configuration | Normally open (NO) |
| IP Rating | IP67 |
| Connection type | Cable PVC |
| Voltage | 5 - 60 VDC |
| UNSPCS | 39121117 |
| Standard | EN 60947-5-2:2007, EN 60947-5-2/A1:2012, IEC 60947-5-2:2007, IEC 60947-5-2 AMD 1:2012 |
| Range | 3mm Flush Range |
